• Fan setting tells about the speed of the fan.
• FPSC % control signal for Stirling engine only visible for ATC-125.
2.1.1.2 Service Input Menu
)
Press in the Service Menu and the Service Input Menu
will appear.

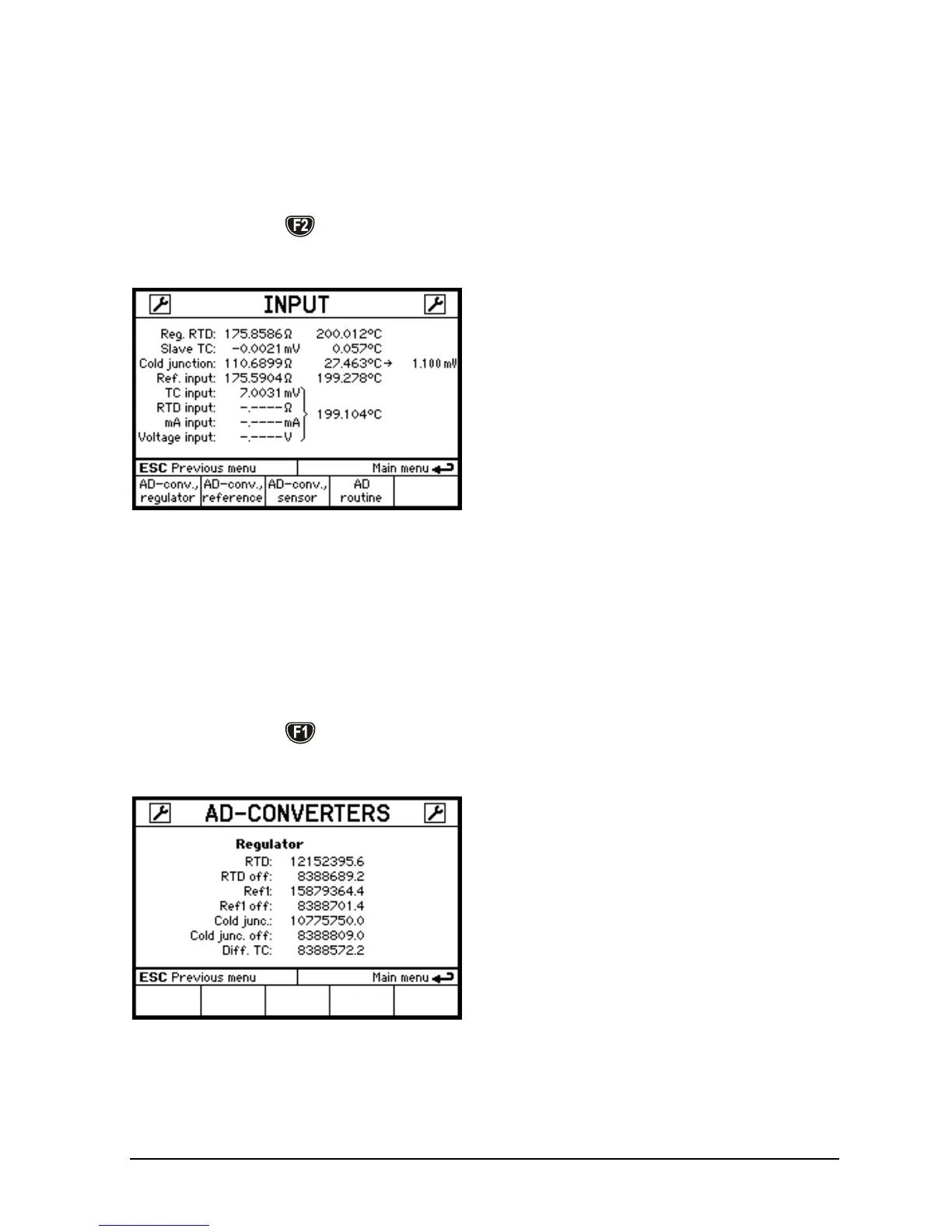

Measurements performed by the A/D-converters are displayed in the
two columns. The first column shows values as electrical units and
the other column the corresponding values in °C.
Next to Cold Junctions also a converted mV value is displayed. This
value is the voltage the chosen thermocouple type has to be
compensated with.
)
Press in the Input Menu and the regulating AD-
converters Menu will appear.
Shown here are the A/D-converted values for the regulating sensors.
The displayed values are typical values.
