AMF Reece S-101 - Clamp Operating Mechanism Adjustment

S-101
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146+ (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
Revised 09/2004
1-16

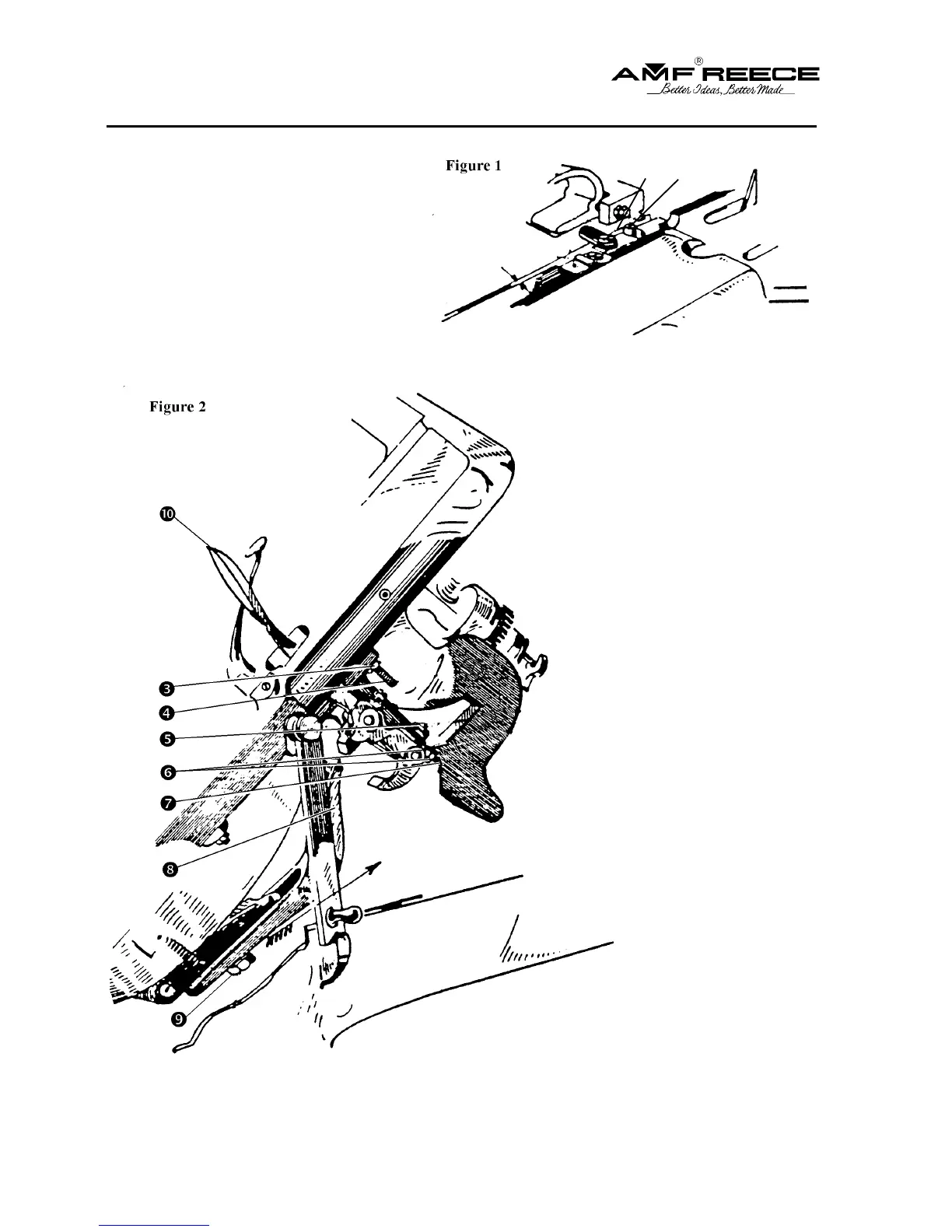

To adjust the clamp plates parallel with ledge
press the clamp plate firmly against the ledge
of the bed plate with the hand - depress the
clamp lever (101 - B 19) w. This will hold
the clamp plate in position. Adjust the screw
n firmly against edge o. Release the clamp
lever - and screw n will be in adjustment.
ADJUSTING THE CLAMP OPERATING MECHANISM
To raise clamp arms for more
clearance between mats and feet -
loosen nut p and screw out screw
q. For less clearance screw inward.
(set check nut after adjustment)
To apply more pressure between
clamp arms and mats - loosen nut
r on stud and move it upward with
screw t set with nuts s and r -
to lessen pressure move stud
downward
To raise clamps sooner or later -
after cutting - on a cut after
machine - or after stitching on a
cut before machine - loosen clamp
screw v and move arm u in
direction of arrow for earlier rise
and the reverse for later rise.
Note:
This adjustment will not raise
clamps sooner or later on cord
trim machine.
n
o
MACHINE ADJUSTMENTS - CORRECTIVE AND MAINTENANCE
