S-101
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146+ (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
Revised 09/2004
1-28

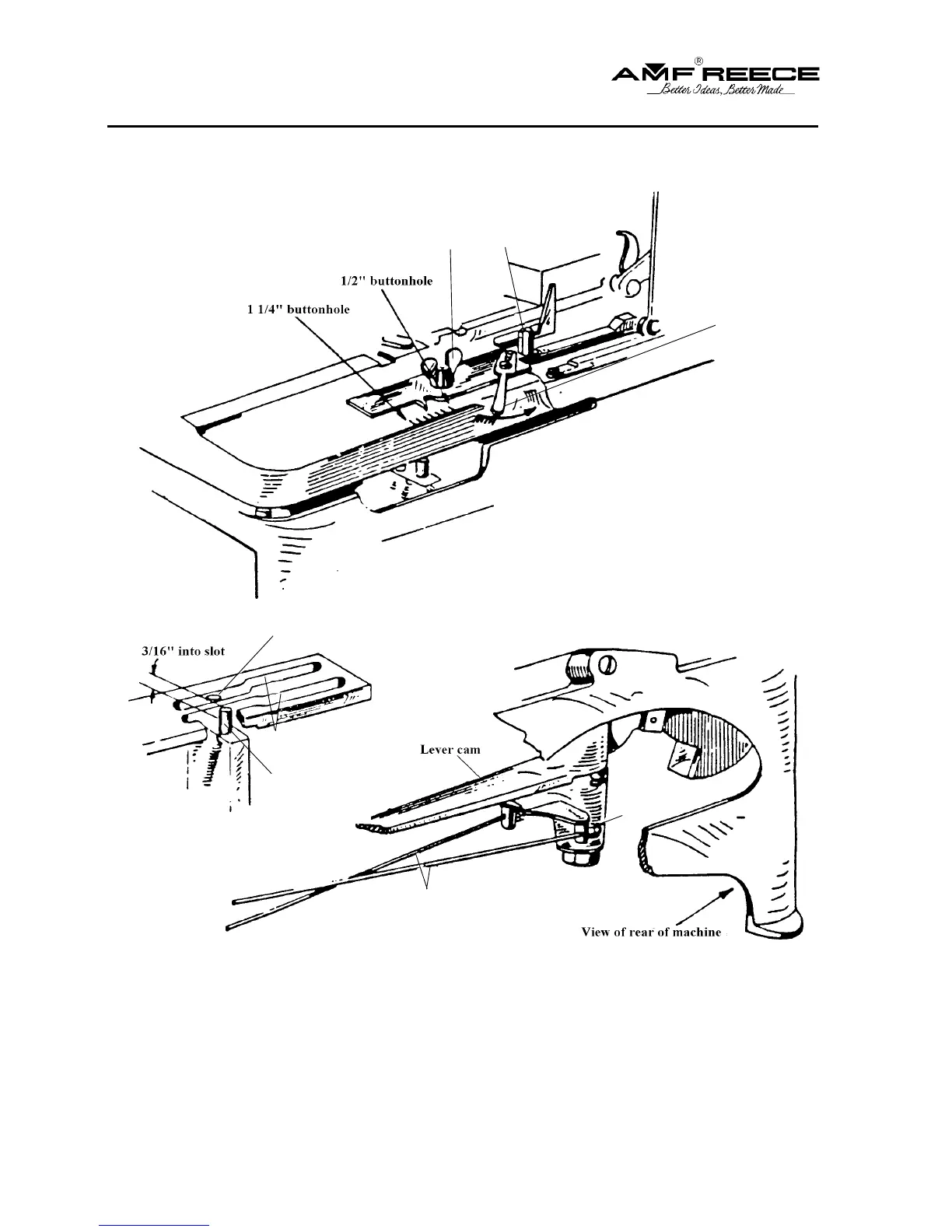

To adjust for length of buttonhole - loosen thumbscrew n and set gauge pointer to any graduation
desired, and change cutting steel to conform.
To adjust length of fly bar - loosen screw o and
adjust with lever p - swinging the lever entirely
to the front will eliminate the fly bar. Range of
adjustment is 0“ to 7/8“.
Note:
The plungers q and r should enter the slots s about 3/16“ - to adjust this depth take up or let
out with nuts t non rods u.
no
p
u
t
q
r
s
ADJUSTMENTS FOR THE ADJUSTABLE FLY BAR MACHINE
