e-mail: service@amfreece.cz; parts@amfreece.cz ; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
Revised 09/2004
S-101
1-29

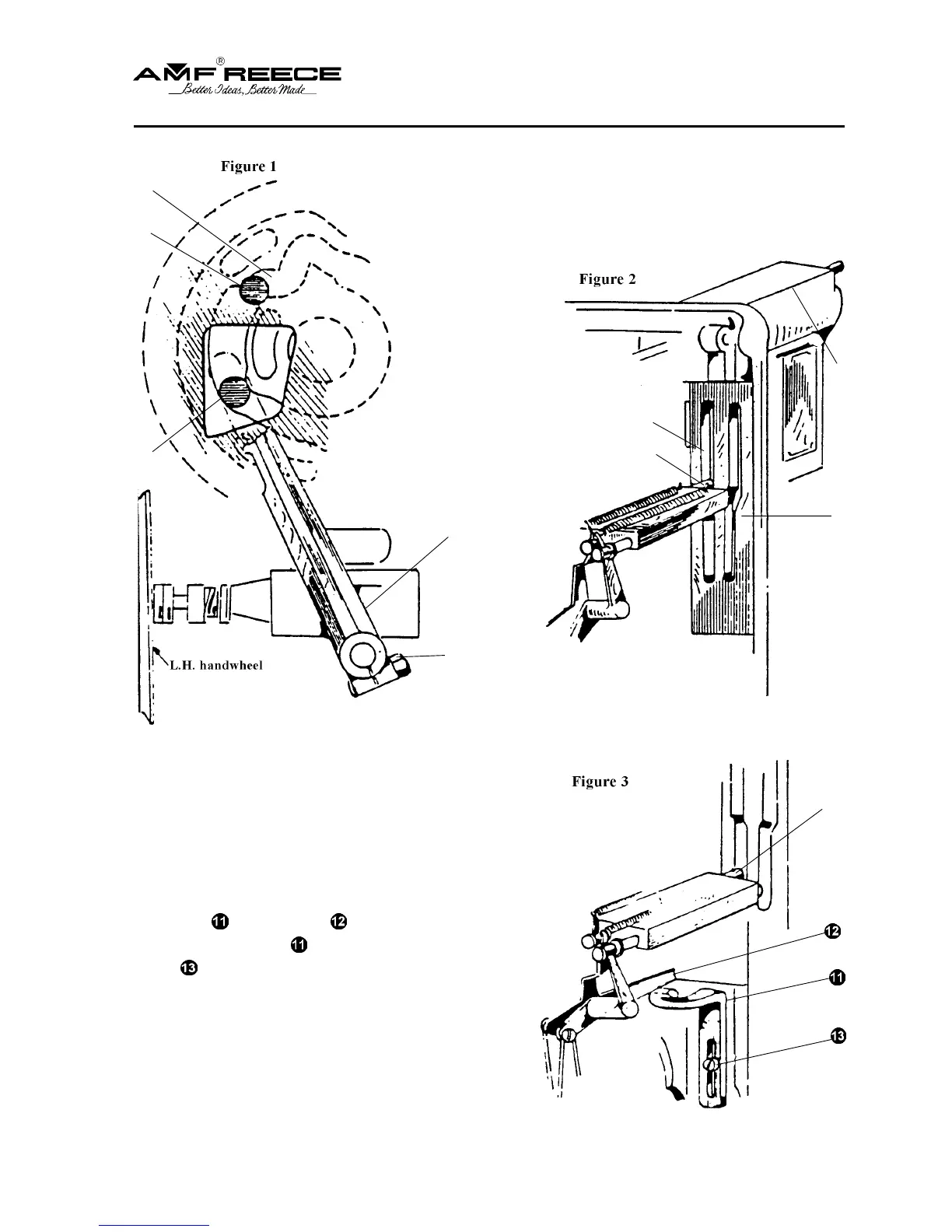

To adjust for proper functioning - tip the machine to a
vertical position upon its base - crank the machine
with the L.H. handwheel until the roll n is at the peak
of the cam as shown.
At this point plunger o
must have enter slot p
in cam plate q. If it
does not enter freely and
definitely - loosen screw
r and tap head of
machine s to suit.
The above adjustment constututes the line up of an adjustable fly bar machine.
Crank the machine until the roll n on lever t is
again definitely embraced by cam path u on the
cam at v, Figure 1 - at this point plunger w
should have just withdrawn from slot by action
of bracket against lever .
If not, adjust bracket to suit by loosening
screw .
u
v
r
t
n
s
q
o
p
w
ADJUSTMENTS FOR THE ADJUSTABLE FLY BAR MACHINE
