AMF Reece S-101 - Cord Trim Section; Threading Diagrams; Cord Threading Diagram

S-101
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146+ (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
Revised 09/2004
1-24
THREADING DIAGRAMS
DETAIL

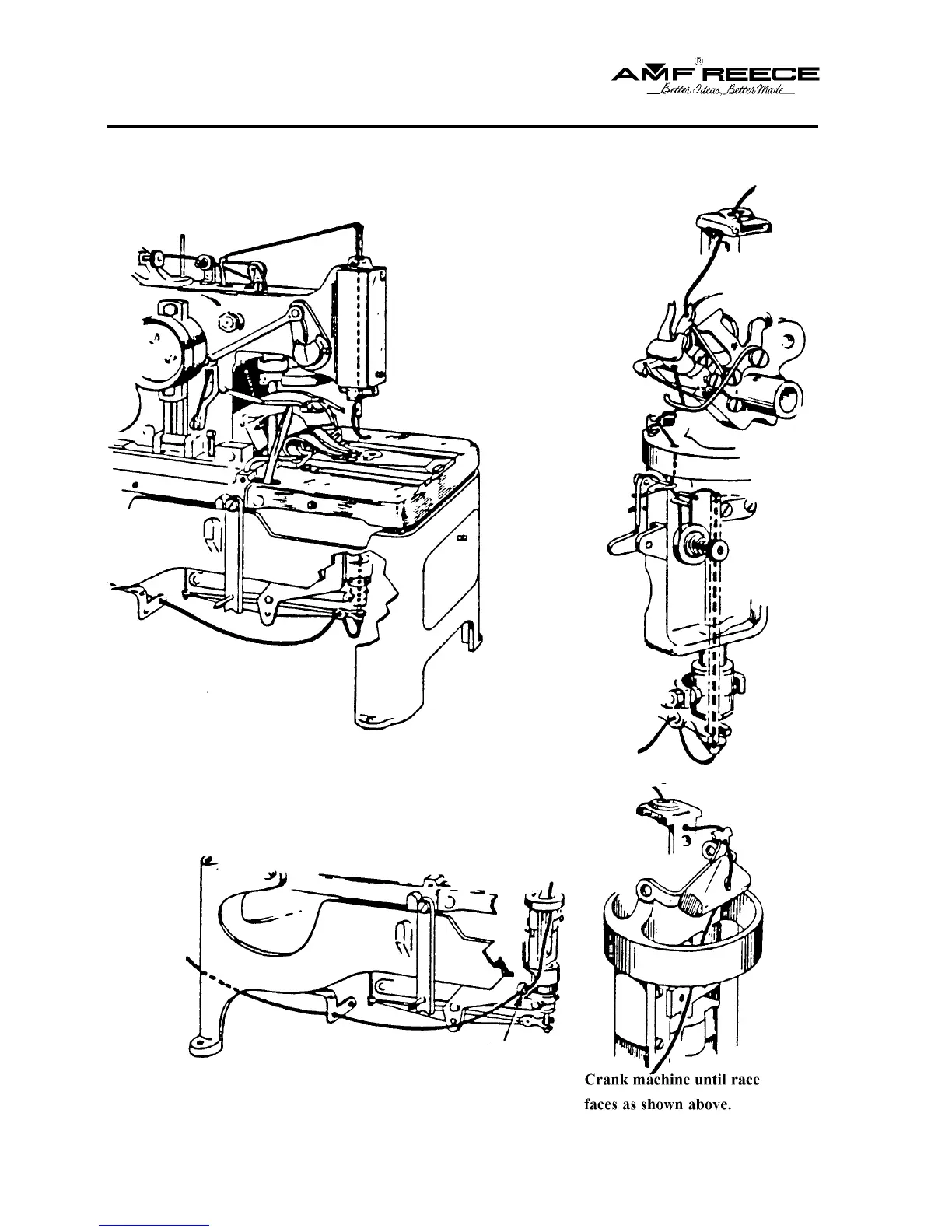

CORD THREADING DIAGRAM
For tension threading details
- see sheet 2
From cord
supply
Guide
See detail at right
CORD TRIM
