User`sManual
10/18

SelectAlignandpress[OK]togotoalignationmenu.Usercansimulatetheantennarightposition
moredirectlyonthismenu.Andthemenuasfolowingscreenshot.
Userneedtoadjusttheattitudeofthemeteraccording
BLUEarrawonthescreen.Themeterwilldeepandthe
REDiconturnstoGREENifth
eREDiconclosestothe
YELLOWone.Itisbettertomakethetwoiconoverlapping.
Andalsovaluesofazimuthandelevationwillrefreshon
timeaccordingtothecurrentpositionduringthewhole
process.

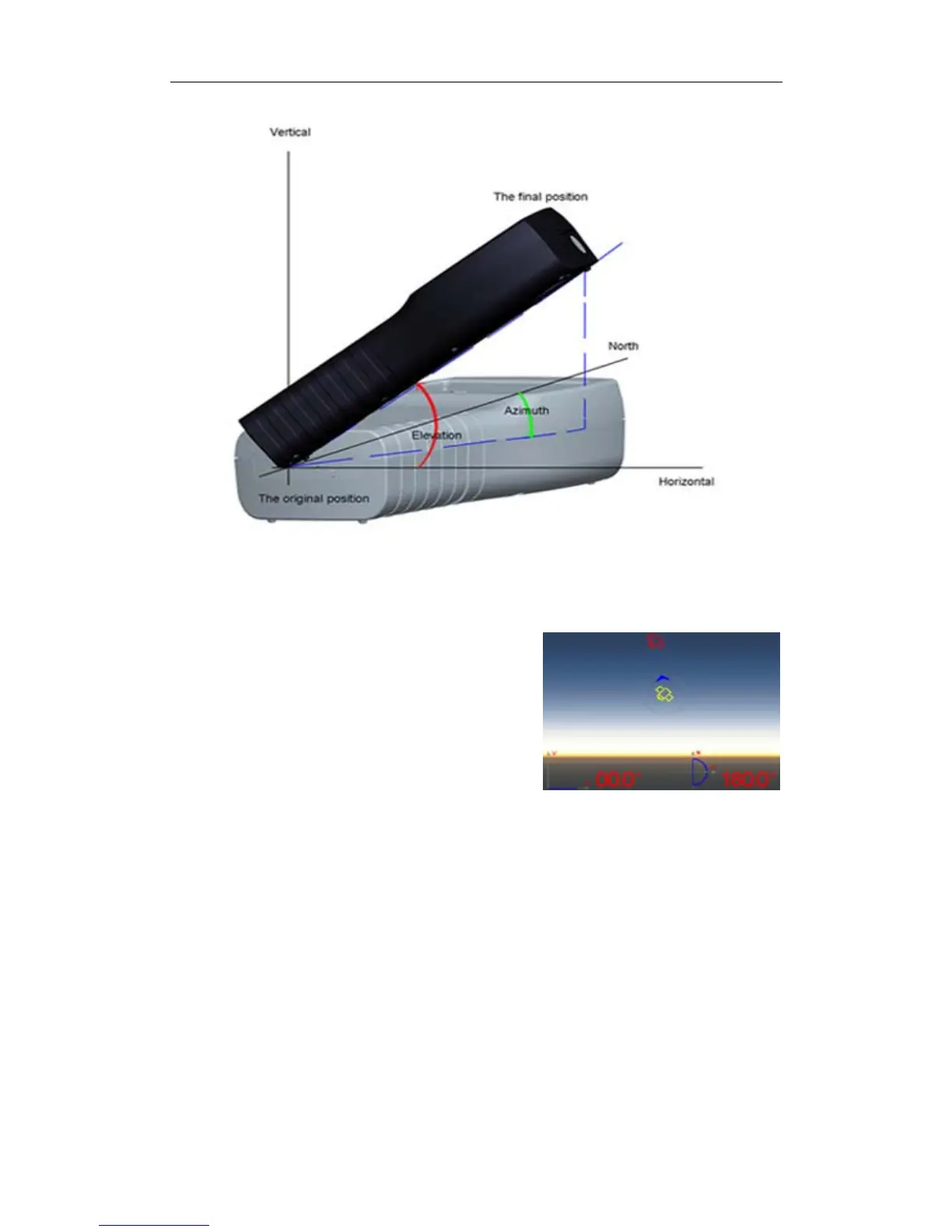

Therealofmetermustfacetothesatelliteintheskythatus
erisplantofind.Belowingisthefigureof
aligmentonthismenu.
