Amiko Multi Tracker 2 - Terrestrial Signal Functions; Terrestrial Measure

User`sManual
12/18
6.TERRESTRIAL
USERCANMEASURETHELIVEDVB‐T/T2SIGNAL,ANALYZETHE
SPECTRUM
,THESCOPEBETWEENTRANSPONDERS,AUTOSCAN
ALLTHESAVEDFREQUENCIESANDLISTALLTHELOCKEDONES
.
THEREARESIXSUBMENUS:MEASURE,AUTOSCAN,SPECTRUM
CHART
,SCOPE,RFCHANNELLISTANDSETTING.


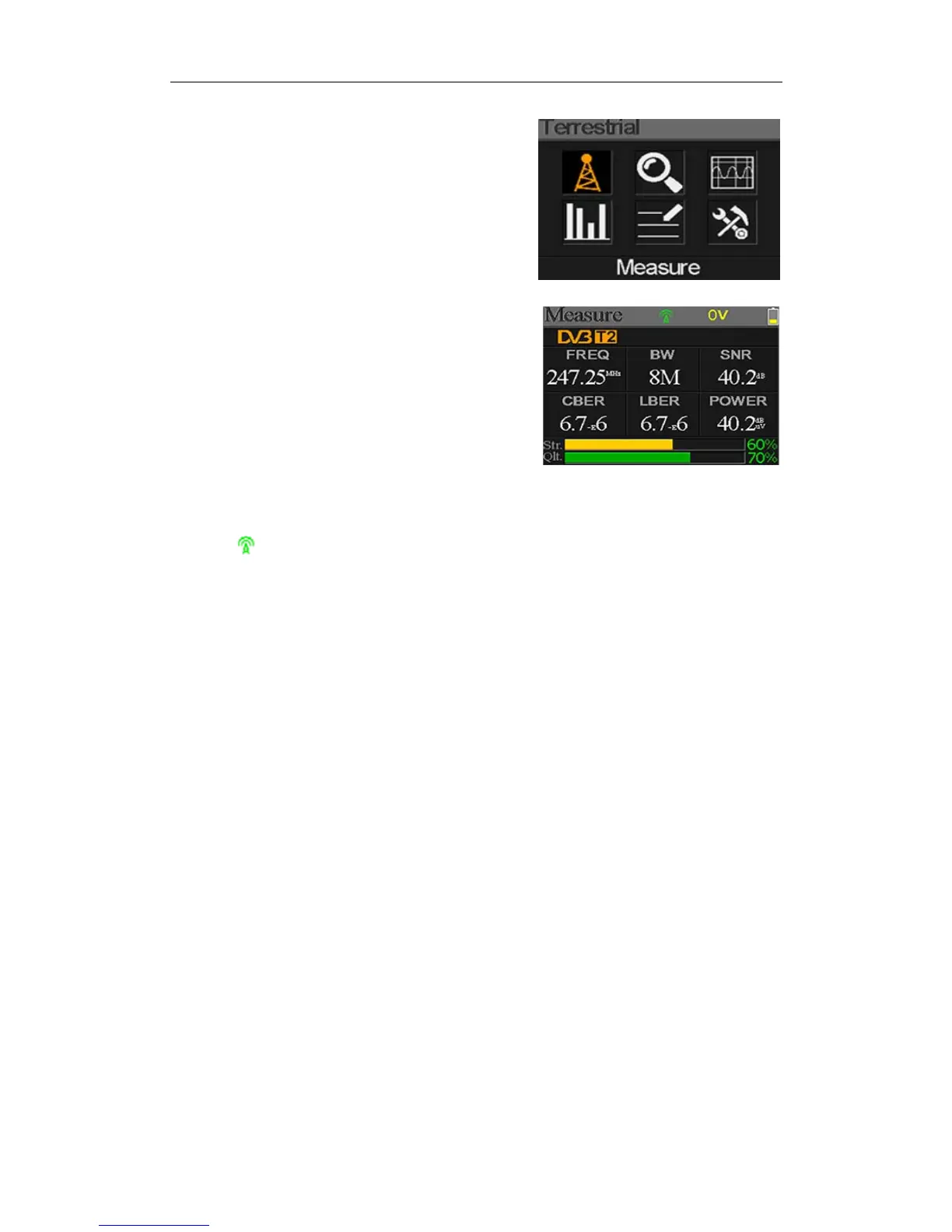

6.1TERRESTRIALMEASURE
ThedevicewillshowSNR,CBER,VBER,powervalue,
strengthandqualityoftheconnectedlivesignal.Please
seebelowfordetail.

z
:  Thelockstatus.Thesignalislockingiftheiconisgreenorthecolorof
theiconisred.
z 0V:  Theantennaoutputvoltage.Thevaluesare0V,13Vand18V.
z DVBT2: Theterrestrialsystem.ThevaluesareDVBTandDVBT2.Press[/]
toswitc
hthem.
z FREQ:  Thecurrentfrequency.Press[/]tochangethefrequencyor[OK]
toeditit.
z BW:  Thebandwidthofthelivesignal.Press[/]toswitchbetween6M,
7Mand8M.
z SNR:  Thesignalnoiseratevalueofthelivesig
nal.
z CBER:  TheCBER(BERbeforeFEC)valueofthelivesignal.
z LBER:  TheLBER(BERafterLDPC)valueofthelivesignal.
z POWER: Thepowerlevelvalueofthelivesignal.
z Str:  Thestrengthofthelivesignalinpercent.
z Qlt:  Thequalityofthelivesig
nalinpercent.
