Amtech Axpert-Eazy AMT-075-4 - Power Terminal Layout Diagrams

Axpert-Eazy AC Variable Frequency Drive
2.9
2

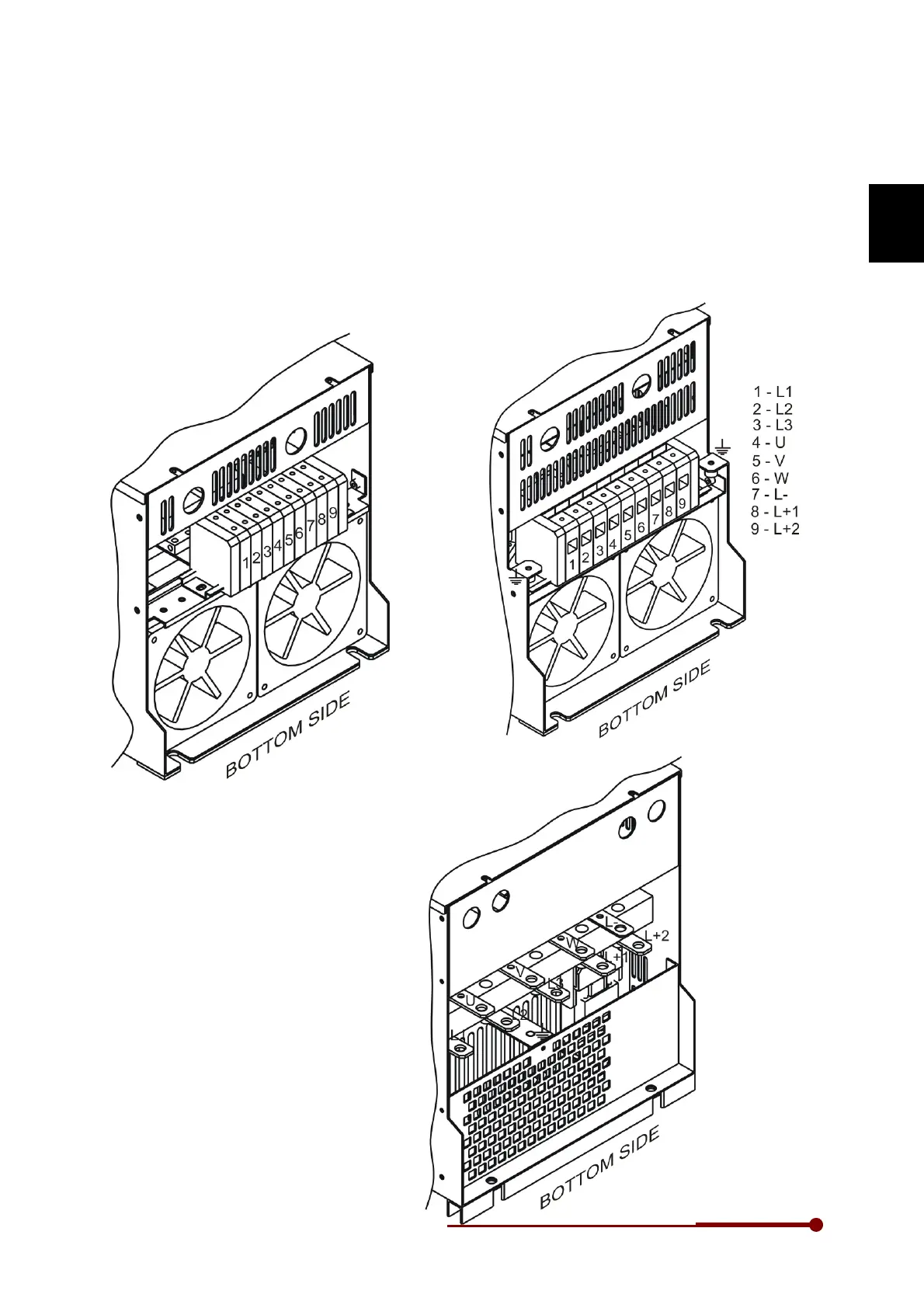

2-3 Power terminal layout
400V Series 400V Series
AMT-011-4, AMT-015-4, AMT-018-4 AMT-030-4, AMT-037-4, AMT-045-4, AMT-055-4
AMT-022-4 500V Series
500V Series AMT-037-5, AMT-045-5, AMT-055-5
AMT-011-5, AMT-015-5, AMT-018-5, 600V Series
AMT-022-5, AMT-030-5 AMT-045-6, AMT-055-6, AMT-075-6
600V Series
AMT-011-6, AMT-015-6, AMT-018-6,
AMT-022-6, AMT-030-6, AMT-037-6
400V Series
AMT-075-4, AMT-090-4
500V Series
AMT-132-5, AMT-090-5, AMT-110-5
600V Series
AMT-090-6, AMT-110-6, AMT-132-6
