MT/D-702 – 7” G5 Touch Panels
MT-702 (Tabletop)

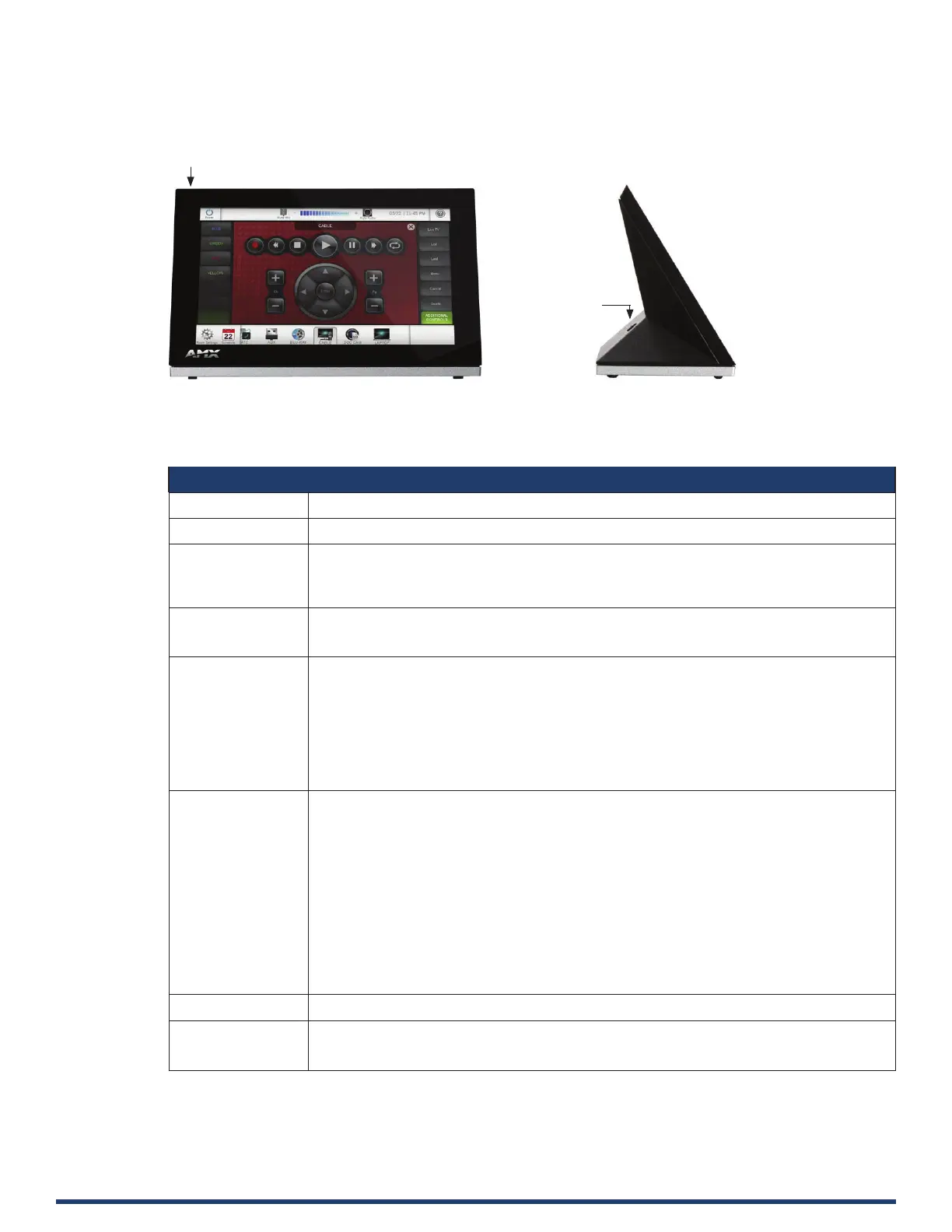

FIG. 10 MT-702
MT-702 Specications
MT-702 Specications
Dimensions (HWD) 4 1/2” x 7 3/8” x 3 3/16” (115mm x 188mm x 81mm)
Weight 1.4 lbs (.635 Kg)
Power Consumption • Full-On: 14.5 W maximum
• Standby: 5.8 W
• Shutdown: 1 W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power
Supply Required
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AT-TC, PoE Injector, 802.3AT Compliant (FG423-84)
• NXA-ENET8-POE+, Gigabit PoE Ethernet Switch (FG2178-64)
Certications • FCC Part 15 Class B
• CE EN 55032, 55035, 60950-1
• IEC 60950-1
• AS/NZS CISPR 32 Class B
• IC CISPR 22 Class B
• UL 60950-1
• VCCI CISPR 22 Class B
• RoHS
• WEEE
Touch Screen Display • Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing angle
• technology
• Display Size (WH): Landscape: 7.3” x 4.8” (186 mm x 122 mm), 8.8” (222 mm) diagonal
• Viewable Area (WH): Landscape: 6.05” x 3.54” (154 mm x 90 mm), 7.0” (178 mm) diagonal
• Resolution: Landscape: 1024x600
• Aspect Ratio: Landscape: 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
• Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max
Note: Touch Panel Aspect Ratio: While the touch panel screen physical dimensions fall between 16:9
and 16:10, any incoming video stream can be scaled to 16:9 if needed. This may lead to some letter
boxing around the video in some cases.
Viewing Angle 89°/89°/89°/89° (Up/Down/Left/Right)
Memory • SDRAM: 2 GB
• Flash: 16 GB
• Maximum Project Size: 12 GB ash, available for apps and touch panel les
Sleep Button
USB Port
