MST/D-431 - 4.3" S Series Touch Panels
21
Modero S Series G4 Touch Panels Instruction Manual
MSD-431-L (Wall Mount - Landscape)
The MST-431-L 4.3" Wall Mount (Landscape) Touch Panel (FG2265-07) features advanced technology empowering
users to conduct seamless meetings including VoIP, brilliant 24-bit color depth, PoE connectivity, USB and streaming
video. The MSD-431-L also supports Bluetooth keyboard and mouse use via the optional MXA-BT Bluetooth Adapter.
MSD-431-L Specifications
MST-431 Specifications (Cont.)
INCLUDED ACCESSORIES • MXA-USB-C, USB Port Cover Kit, Modero X Series Touch Panel (FG5968-18)
• Cat5e Ethernet Cable, Flat Black (ECA2265-10)
• UTP CAT.5E Snap In Coupler, Black (64-5968-01)
OPTIONAL ACCESSORIES • MSA-STMK-43, Secure Table Mount Kit for 4.3" Modero S Tabletop Touch Panel
(FG2265-18)
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit Ethernet Switch (FG2178-63)
• MXA-BT, Bluetooth USB Adapter for Modero X/S Series Touch Panels (FG5968-19)
• MXA-HST, Bluetooth Handset for Modero X/S Series Touch Panels (FG5968-17)
• HPG-10-10K, 3/4" Mini-Grommet, 10-Pack (FG570-01-10K)
• MXA-CLK, Modero X/S Series Screen Cleaning Kit (FG5968-16)
• MXA-USB-C, USB Port Covers for the Modero X/S Series Touch Panels (FG5968-18)

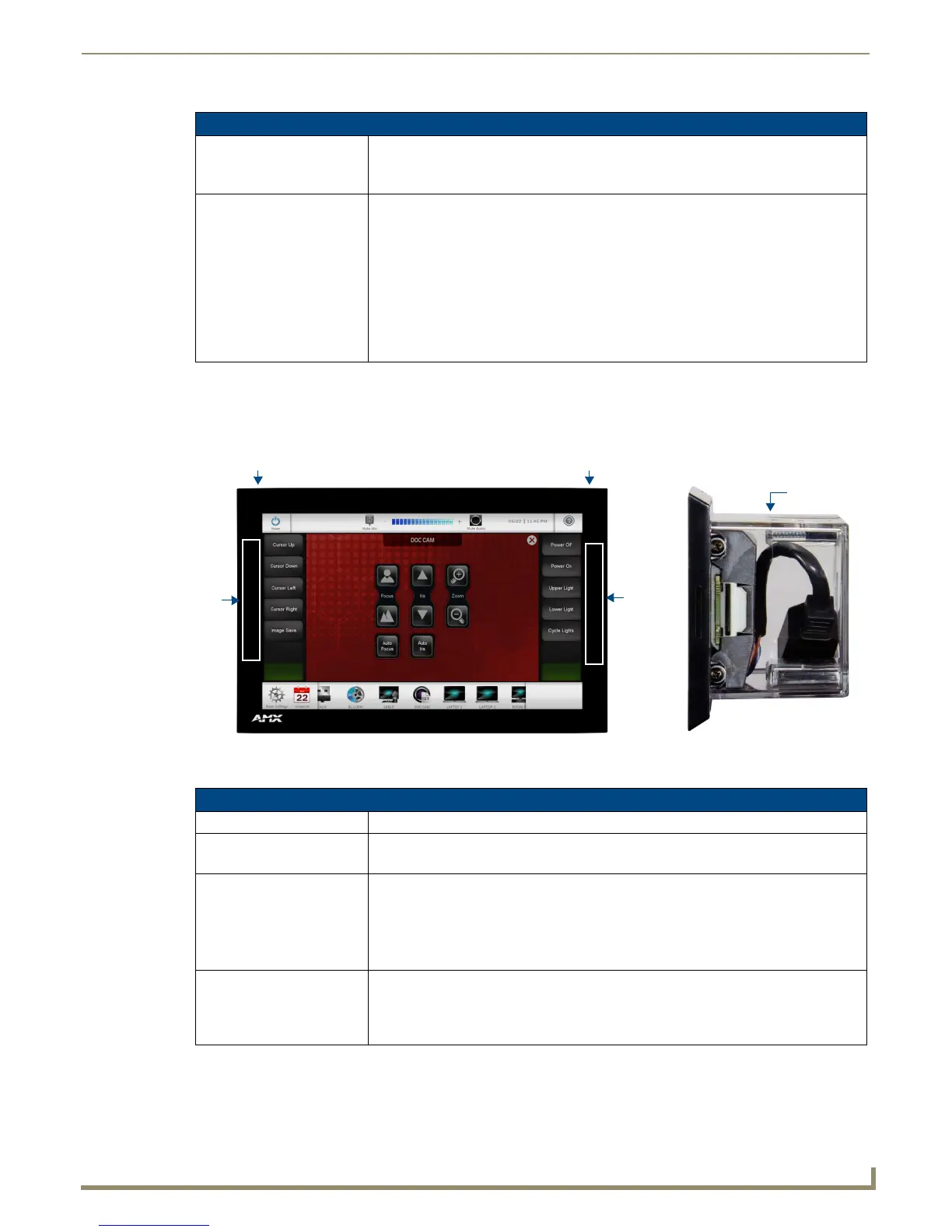

FIG. 11
MSD-431-L
MSD-431-L Specifications
DIMENSIONS (HWD) Landscape: 3 3/8" x 5 1/16" x 2 5/8" (86 mm x 128 mm x 66 mm)
WEIGHT • 0.65 lbs (.295 Kg), with Backbox
• 0.5 lbs (.225 Kg), without Backbox
POWER CONSUMPTION • Full-On: 5 W (max)
• Typical: 3 W
• Standby: 2 W
• Shutdown: 0.7 W
• Start-Up Inrush Current: Not applicable due to PoE standard
EXTERNAL POWER
SUPPLY REQUIRED
Optimal performance requires use of one of the following AMX PoE power supplies (not
included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Sleep Button Microphone
Left
LED
Right
LED
Backbox
(side view)
To Next Page
