Installing Wall-Mount (MXD) Panels

Modero S Series G4 Touch Panels Instruction Manual

Installation

S Series touch panels may be installed directly into a solid surface environment, using either solid surface screws or the

included locking tabs for different mounting options. Once installed, the panel is contained within a clear outer housing

known as the Backbox (FIG. 16).

This Backbox is removed to install the device into a wall or when using the optional Rough-In Box accessory. Refer to

Removing the Backbox on page 29 for Backbox removal.

Refer to A Note About Wall and Rack Installation on page 27 for important notes

on thermal concerns with Wall and Rack Installations.

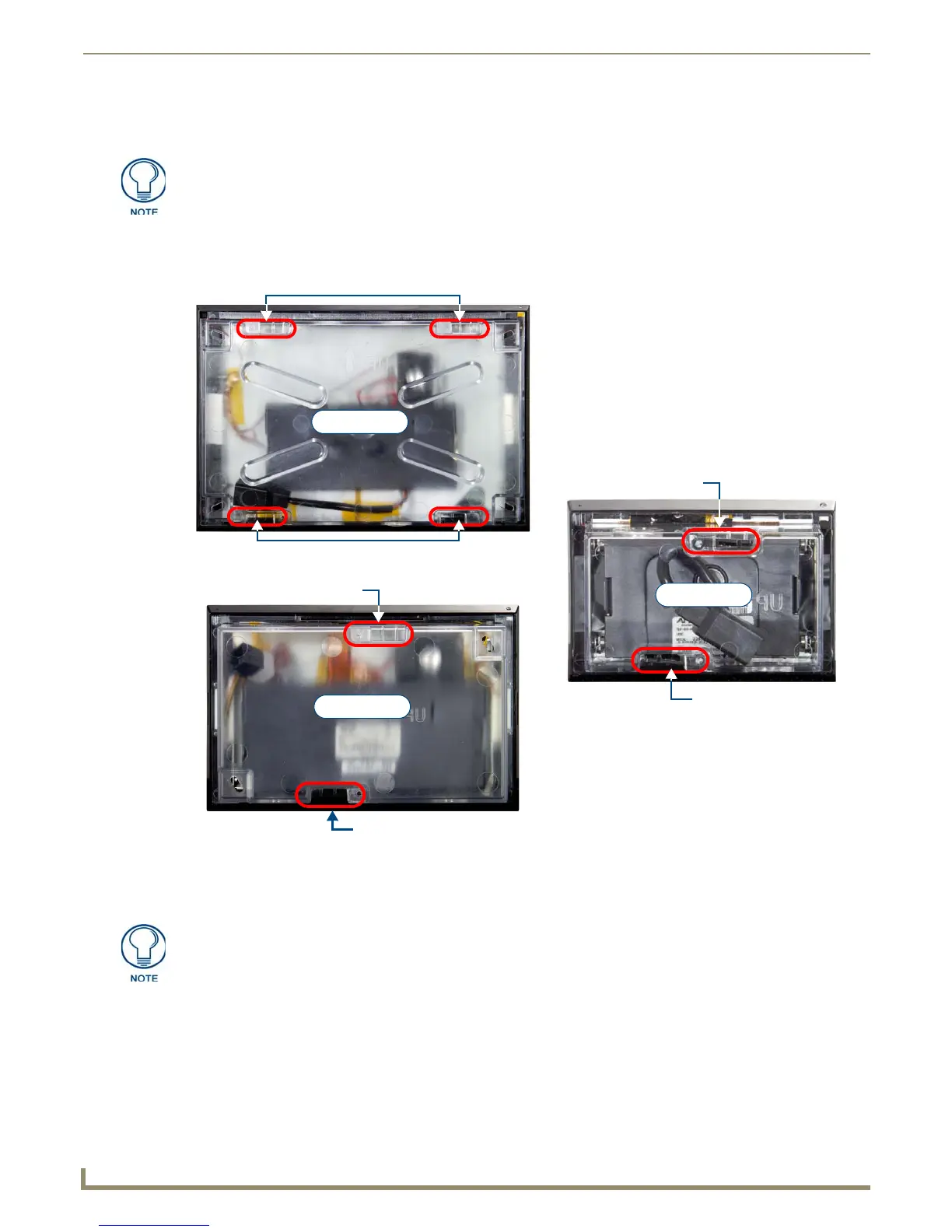

FIG. 16 S Series Backboxes - Locking Tabs

Locking tabs

Locking tab

MXD-1001-L

MXD-701-L

MXD-431-L

For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use

mounting screws (not included).
