Installing Wall-Mount (MXD) Panels
31
Modero S Series G4 Touch Panels Instruction Manual
Installing the S Series Panel into a Wall
S Series touch panels come with a clear plastic Backbox designed to attach the panel to most standard wall materials.
This Backbox has locking tabs to help lock the Backbox to the wall (see FIG. 16).
These locking tabs are only extended AFTER the Backbox is inserted into the wall.

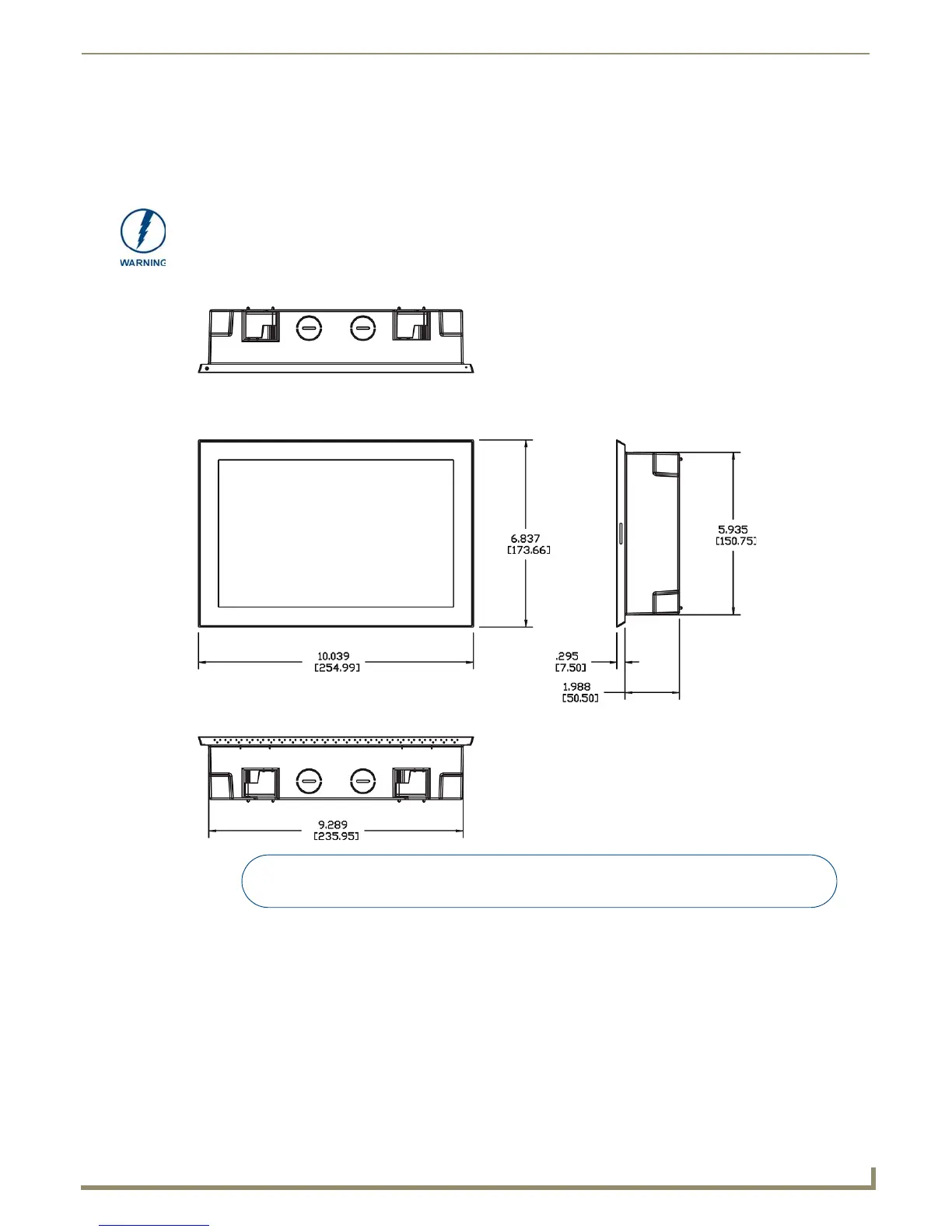

MXD-1001-L Dimensions
When installing the Backbox, make sure that the assembly is in the correct position
and in the correct place. Once the locking tabs are extended and locked into place,
removing the Backbox may be difficult without having access to the back of the wall
or causing damage to the wall.
FIG. 17 MST-1001-L
Notes:
Dimensions in parenthesis are in millimeters
Additional detailed installation and product drawings are available to view/download at www.amx.com
