Installing Wall-Mount (MXD) Panels
33
Modero S Series G4 Touch Panels Instruction Manual

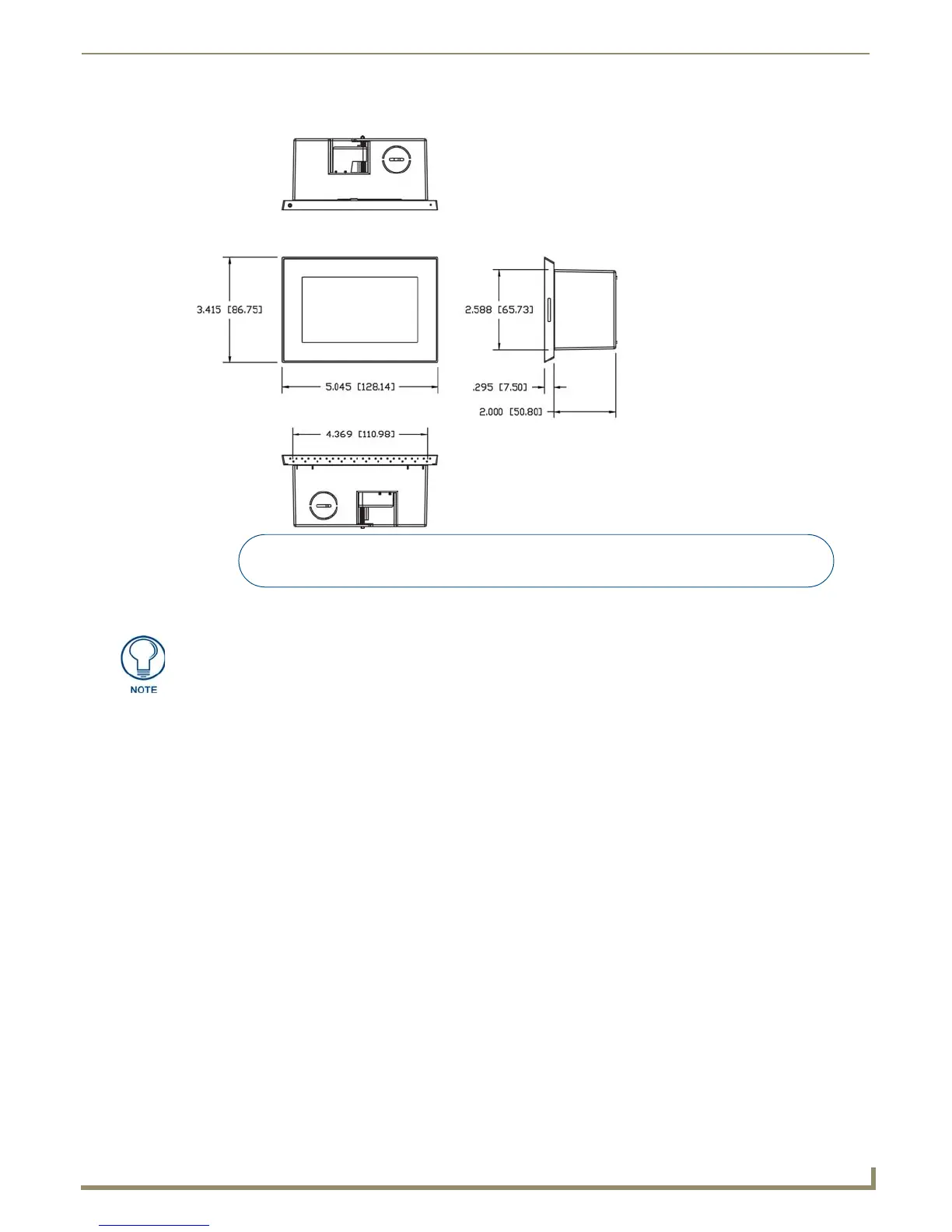

MXD-431-L Dimensions
Installing the Backbox
1.
Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
2. For best results, use the Installation Template provided with the panel to ensure proper placement (FIG. 20):
MXD-1001-L - Template, Backbox, 10.1" Touch Panel, Modero S Series (68-2265-03)
MXD-701-L - Template, Backbox, 7.0" Touch Panel, Modero S Series (68-2265-02)
MXD-431-L - Template, Backbox, 4.3" Touch Panel, Modero S Series (68-2265-01)
The templates are marked to ensure that the touch panel and Backbox are properly aligned.
FIG. 19 MSD-431-L
Notes:
Dimensions in parenthesis are in millimeters
Additional detailed installation and product drawings are available to view/download at www.amx.com
In order to ensure a stable installation of the MSD-1001-L, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat.
