MXD/T-1900L-PAN 19.4" Modero X Series® Panoramic Touch Panels
Picture View Send Command
The ^PIC Send Command stops either mode of Picture View, or starts Preview Mode. For more information,
please refer to the Modero X Programming Guide, available at www.amx.com.
Configuration
The MXT-1900L-PAN and MXD-1900L-PAN are equipped with Settings Pages that allow you to set and
configure various features on the panels. For more information on connecting and configuring the touch panels
to a network, please refer to the Modero X Series Programming Guide, available at www.amx.com.
Bluetooth Support
Both the MXT-1900L-PAN and the MXD-1900L-PAN allow the use of Bluetooth keyboard and mouse
combinations, using HID Profile v1.1. Using a keyboard and mouse with the device requires use of the MXA-
BT Bluetooth USB Adaptor (FG5968-19).
NFC
Both the MXT-1900L-PAN and the MXD-1900L-PAN support Near Field Communications™ (NFC)
Technology. NFC technology facilitates making transactions, exchanging digital content, and connecting
electronic devices with a touch. NFC transmissions are short-range (from a touch to a few centimeters),
working with existing contactless card technologies and containing built-in capabilities to support secure
applications. By using NFC technology, users may receive access to touch panels and touch panel pages
through access badges and other card options.
The maximum range for the NFC antenna is 0.5" (12.7 mm), but the typical usage range is 0.25" (6.35 mm).
The antenna itself is accessible from the front of the panel, 3.25" (82.55 mm) from the left corner of the panel
and 0.375" (9.53 mm) from the top edge. When using an NFC device with the MXT-1900L-PAN, you should
align your device’s antenna with the center of the touch panel’s antenna (FIG. 8).
All images must be in JPEG format. PNG and other image formats cannot be viewed
through Picture View.
Common Access Card (CAC) Support In MXT/D-1900L-PAN
Card Type Card Unique
Identifier (UID)
Card Data Personal Identity
Verification (PIV)
Card holder UID
15693 8 byte UID Not Supported N/A
14443A Non-Gov't 4, 7 or 10 byte UID (1) Not Supported N/A
14443A Gov't 4, 7 or 10 byte UID (1) Not Supported (2) Not currently
14443B Non-Gov't 4 byte UID Not Supported N/A
14443B Gov't 4 byte UID Not Supported (2) Not currently
FeliCa Not Supported Not Supported N/A
(1) The UID can be a fixed unique number or a random number dynamically generated by the card.
(2) Requires contact card reader (not accessible via NFC)

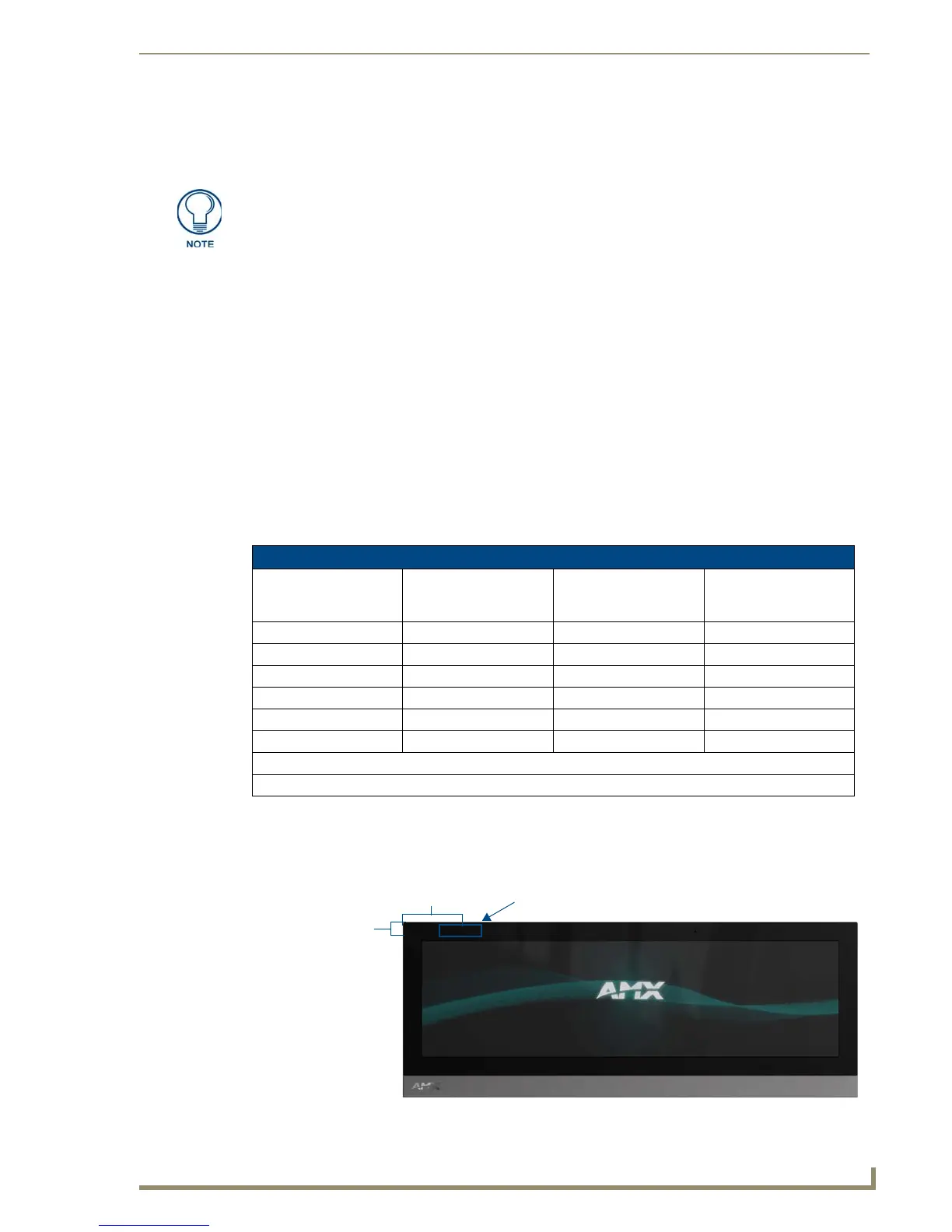

FIG. 8
NFC antenna location on the MXT-1900L-PAN
3.25" (82.55 mm)
0.375" (9.53 mm)
NFC antenna location
