NX-3200
The NX-3200 (FG2106-03) has 512MB of on-board RAM, a 4GB CompactFlash card, and is Device Discovery enabled to simplify
programming by standardizing device and function definitions, default touch panel button assignments, and control and feedback
methods. A complete list of device specifications is listed below.

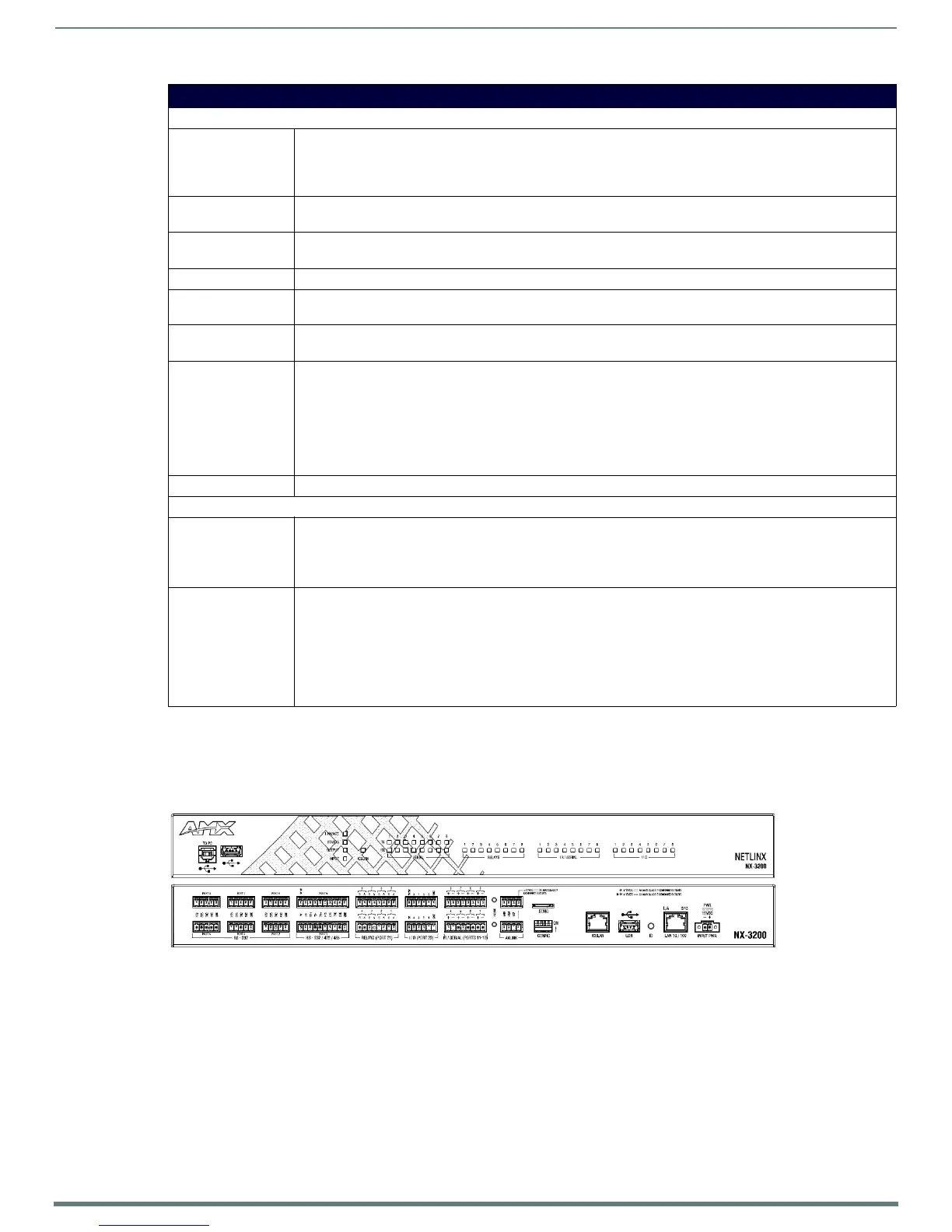

FIG. 4 displays the NX-3200.
FIG. 4
NX-3200 (front and rear panels)
NOTE: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest version of NetLinx Studio 4.0
(available for download from www.amx.com).
NX-2200 Specifications (Cont.)
Rear Panel Components: (Cont.)
IR/Serial
(Ports 11-14):
4 IR/Serial control ports support high-frequency carriers of up to 1.142 MHz with each output being capable of
two electrical formats: IR or Serial.
4 IR/Serial data signals can be generated simultaneously.
IR ports support data mode (at limited baud rates and wiring distances).
AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external AxLink control devices.
Green AxLink LED indicates the state of the AxLink port.
Configuration DIP
Switch:
The Configuration DIP Switch allows you to set boot-time operations (see Configuration DIP Switch section on
page 32 for more information.)
ICSLAN: 1 RJ-45 connector for ICSLAN interface.
USB Port: 1 Type-A USB port for connecting a mass storage device for loading .tkn files, reading or writing configuration
files and log files, or updating the firmware on the unit.
ID Pushbutton: 1 black ID pushbutton used during boot to revert to factory configuration or factory firmware. Also used after
boot to toggle IP mode between Static and DHCP.
LAN 10/100 Port: 1 RJ-45 connector provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to
use either straight-through or crossover Ethernet cables.
The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information:
• SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10
Mbps.
• L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly, and
blinks when receiving Ethernet data packets.
Power Connection: 2-pin 3.5 mm mini-Phoenix (male) connector with retention screws provides power to the NX-2200.
General Specif ications:
Operating
Environment:
• Operating Temperature: 32° F (0° C) to 122° F (50° C)
• Storage Temperature: 14° F (-10° C) to 140° F (60° C)
• Operating Humidity: 5% to 85% RH
• Heat Dissipation (On): 14.3 BTU/hr
Included Accessories: • 1 2-pin 3.5 mm mini-Phoenix (female) PWR connector
• 1 4-pin 3.5 mm mini-Phoenix (female) AxLink connector
• 1 6-pin 3.5 mm mini-Phoenix (female) I/O connector
• 1 10-pin 3.5mm mini-Phoenix (female) RS232/422/485 connector
• 3 5-pin 3.5mm mini-Phoenix (female) RS232 connectors
• 2 CC-NIRC, IR Emitters (FG10-000-11)
•2 removable rack ears
