Wiring and Connections
27
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
IRRX Port
The IRRX port is a 1/8" mini-phono receiver port capable of interfacing with an IR03 External IR Receiver Module. This port is only
available on the NX-1200.

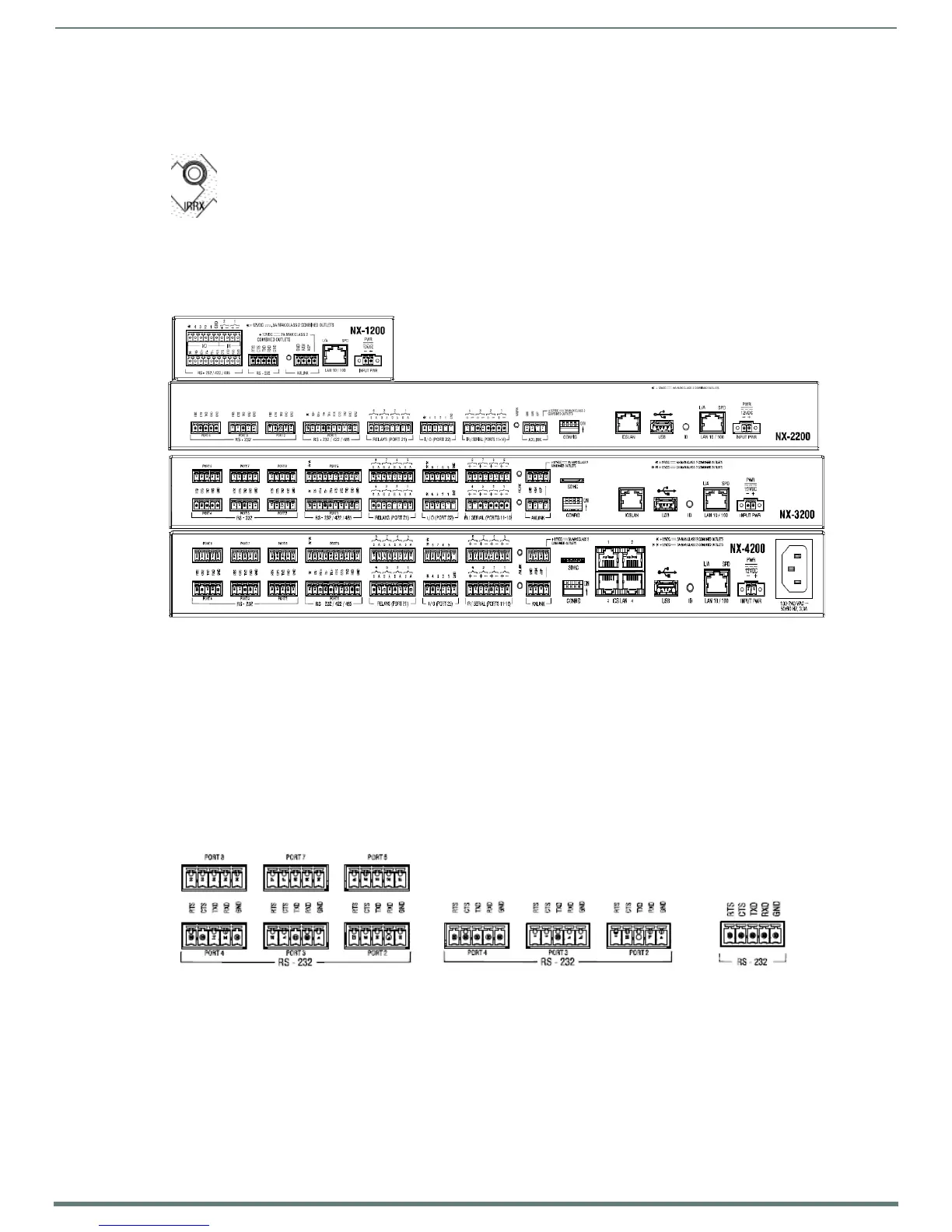

FIG. 19 displays the IRRX port.
FIG. 19
IRRX port
Rear Panel Components
The following sections list the rear panel components on the NX-series controllers.
FIG. 20 displays the rear panels of the NX-series controllers.
FIG. 20
NX-series controllers (rear panels)
Serial Ports
The NX-series controllers each feature device control serial ports that support either RS-232 or RS-232, RS-422, and RS-485
communication protocols. Each port supports the following specifications:
XON/XOFF (transmit on/transmit off)
CTS/RTS (clear to send/ready to send)
300-115,200 baud rate
RS-232 Ports
The RS-232 ports (ports 2-4 and 6-8 on the NX-3200/4200; ports 2-4 on the NX-2200; port 2 on the NX-1200) are 5-pin 3.5 mm
mini-Phoenix (male) connectors used for connecting A/V sources and displays. These ports support most standard RS-232
communication protocols for data transmission.
FIG. 21 displays the RS-232 ports for the NX-series controllers.
FIG. 21
RS-232 ports
NX-3200/4200 NX-2200
NX-1200
