Wiring and Connections
25
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
PoE Port Status
If the system is not being powered from an AC source, the status will read "PoE Not Available". Otherwise, the status consists of
four subfields separated by blanks, each of the format x:cc, where x is the port number (1, 2, 3, or 4) and cc is the condition code.
If there is not a fault on the port, the possible condition codes are as follows:
N - No device is attached on the port or the device is not a PoE Powered Device.
L - A PoE Powered Device of Class 1 or 2 is attached on the port.
M - A PoE Powered Device of Class 0 or 3 is attached on the port.
H - A PoE Powered Device of Class 4 is attached on the port.
D - The port has been disabled.
ED - A PoE Powered Device is attached on the port, but the load has been disconnected due to not drawing at least
minimum current.
EO - A PoE Powered Device is attached on the port, but has been shut off due to drawing more than maximum current or
due to overheating on the controller's port.
Example:
PoE Port Status
1:N 2:M 3:ED 4:D
LEDs
This section details the various LEDs on the front panel of the NX-series controllers.
General Status LEDs
The General Status LEDs include the Link/Activity, Status, Output, and Input LEDs. These LEDs appear on all models of NX-series
controllers.

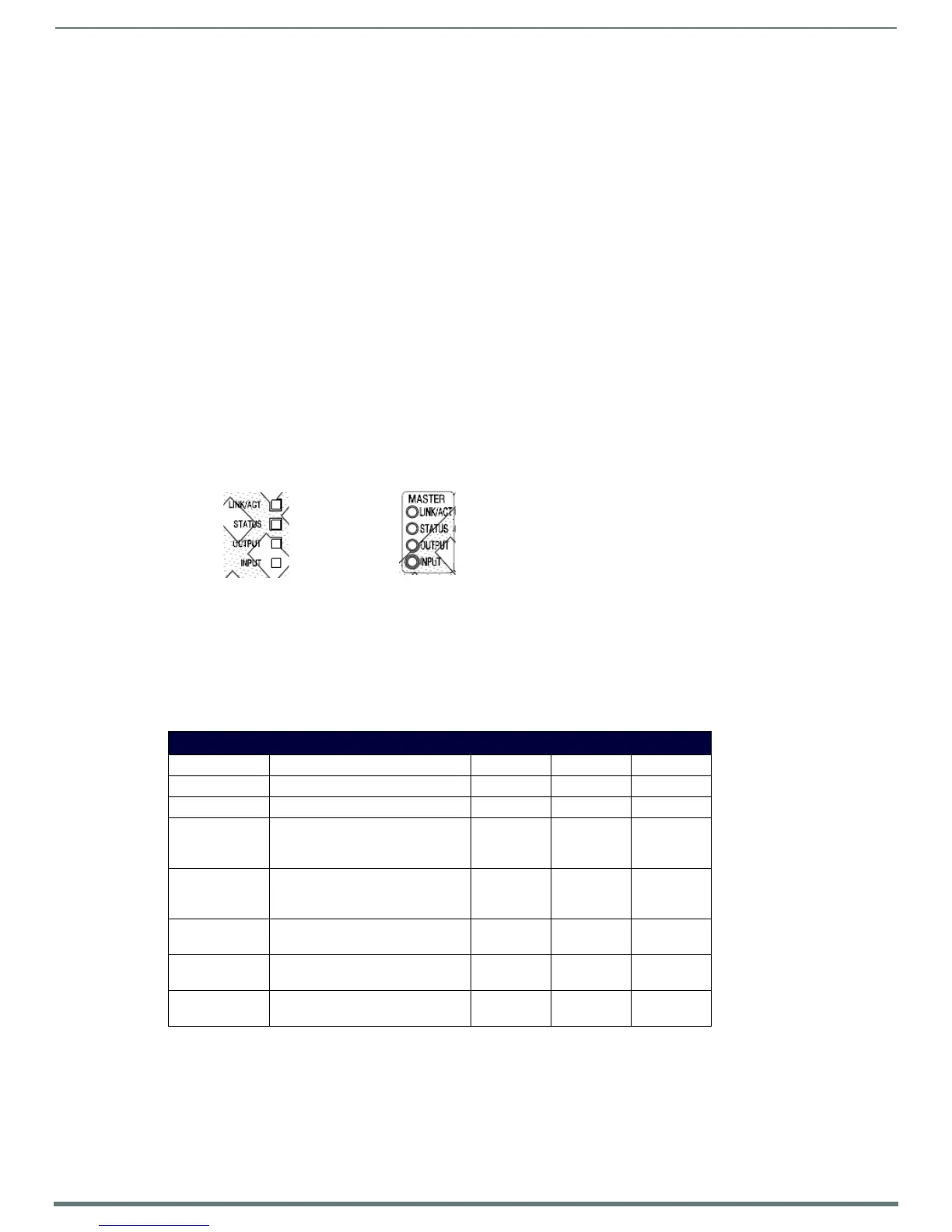

FIG. 12 displays the General Status LEDs for each NX-series controller.
FIG. 12
Ge n e r a l S t a t u s L E D s
Link/Act - Lights green when the link is up and toggles off when a data packet is sent or received.
Status - Lights green and blinks once per second if the master is functioning normally and has established communication
with a DHCP server.
Input - Lights yellow when the controller receives data
Output - Lights red when the controller transmits data
The following table lists the following special LED patterns for the Status, Input, and Output LEDs:
* - The fast blink is nearly instantaneous upon downloading the boot firmware to Flash memory and is, in most cases, undetectable
to the user’s eye.
LED Patterns
Mode Description Status Output Input
OS Start Starting the Operating System ON ON ON
Boot On-board Master is booting ON OFF ON
Contacting DHCP
server
On-board Master is contacting a
DHCP server for IP configuration
information
ON OFF Fast Blink
Using link-local
address
On-board Master could not find a
DHCP server and is using a link-local
address
Slow Blink OFF OFF
Downloading
Boot firmware
Downloading Boot firmware to the
Master’s on-board Flash memory
Fast Blink* Fast Blink* Fast Blink*
Program running Normal operation with a running
program
Slow Blink Normal Normal
No program
running
There is no NetLinx program loaded
or the program is disabled
ON Normal Normal
NX-2200/3200/4200
NX-1200
