Initial Configuration
22
NX-Series Controllers - WebConsole & Programming Guide
3. Click Ge t I P I n f o r m at i o n to enable the fields for editing (FIG. 9):
4. Enter the System, Device (0 for NetLinx Masters), and Host Name information.
NOTE: Host names may contain only the ASCII letters 'a' through 'z' (in a case-insensitive manner), the digits '0' through '9', and the
hyphen ('-').
5. To configure a network address via DHCP (FIG. 10):
a. Select Use DHCP.
b. Click Set IP Information to retain the DHCP setting.
c. To finish the process, click Reboot Device.
d. Click Done to close the dialog.
6. To specify a network IP address (FIG. 11):
a. Select Specify IP Address.
b. Enter the IP parameters into the available fields.
c. Click Set IP Information to retain the pre-reserved IP address to the Master.
d. To finish the process, click Reboot Device.
e. Click OK to close the dialog.

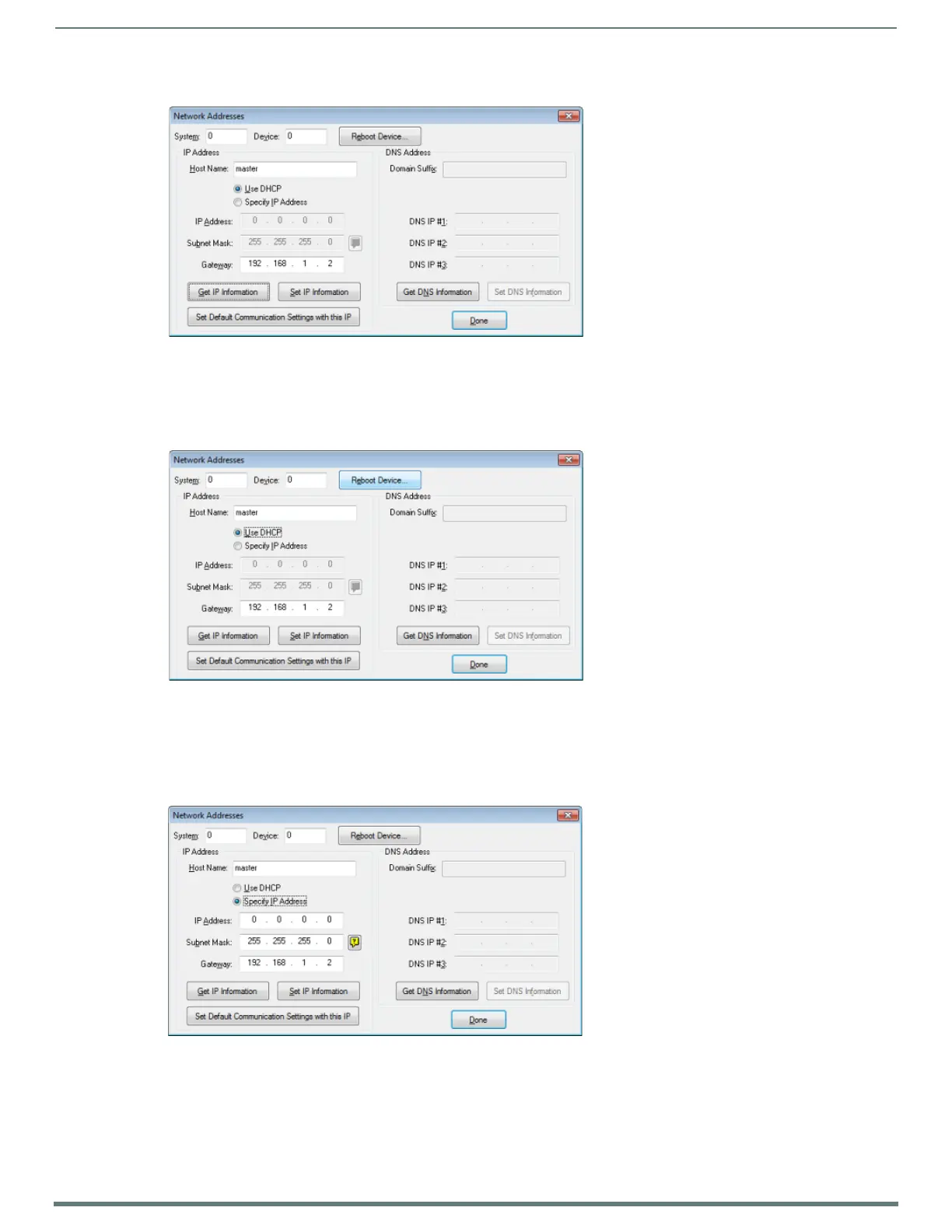

FIG. 9
Network Addresses dialog showing initial IP information
FIG. 10 Network Addresses dialog (DHCP)
FIG. 11 Network Addresses dialog (Specify IP Address)
