AMX NX-2200 Hardware Reference Manual

Wiring and Connections
22
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers

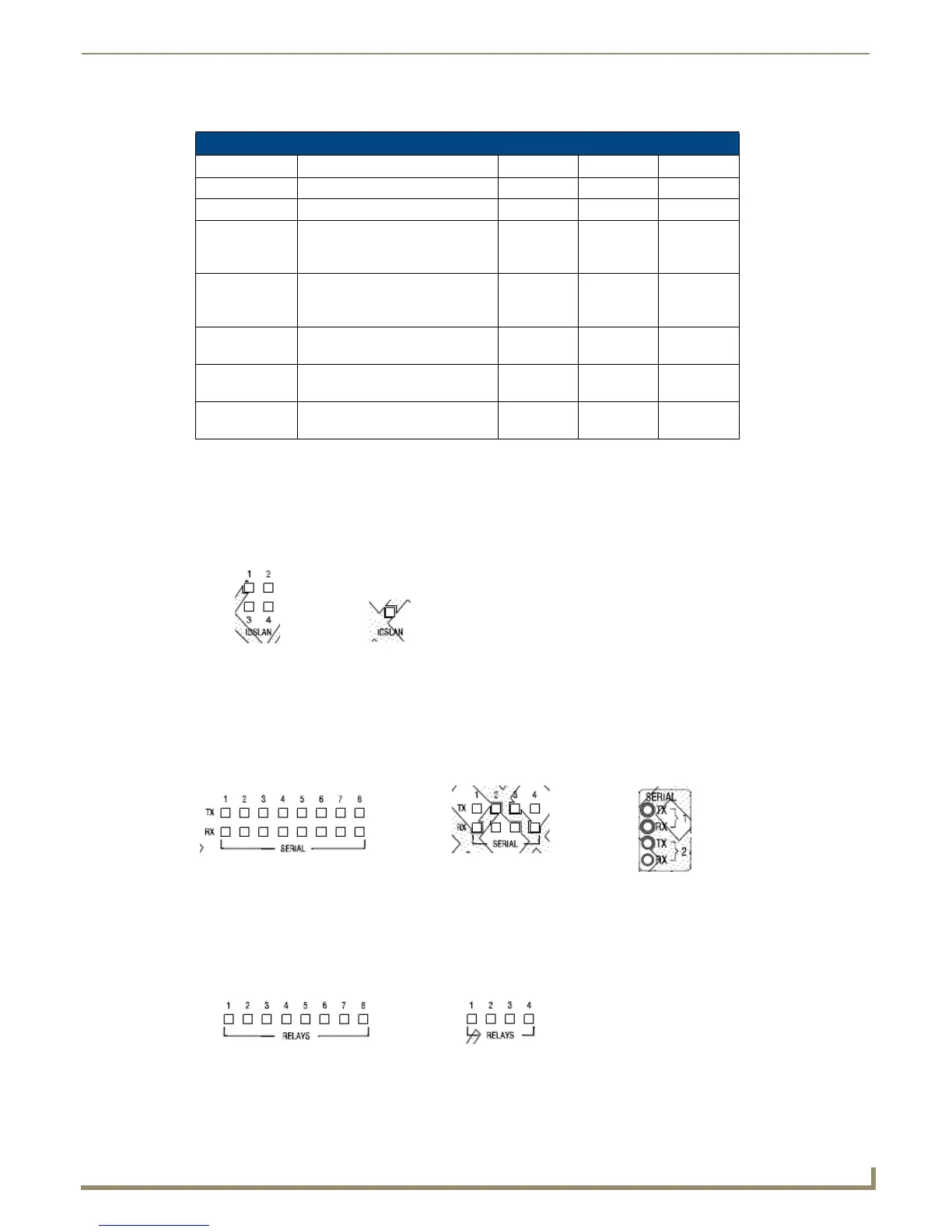

The following table lists the following special LED patterns for the Status, Input, and Output LEDs:
* - The fast blink is nearly instantaneous upon downloading the boot firmware to Flash memory and is, in most cases,
undetectable to the user’s eye.
ICSLAN LEDs
The ICSLAN LEDs light green when there is an active link on the corresponding ICSLAN port. The light toggles off
when a data packet is sent or received.
There are 4 ICSLAN LEDs on the NX-4200. The NX-2200 and NX-3200 each have one ICSLAN LED (see FIG. 7).
FIG. 7 ICSLAN LEDs
SERIAL LEDs
The SERIAL LEDs are two sets of LEDs which light to indicate that the RS-232 ports are transmitting or receiving
RS-232, 422, or 485 data (red = TX, yellow = RX). The light toggles on when a data packet is sent or received.
There are two sets of eight SERIAL LEDs on the NX-3200 and NX-4200. The NX-2200 has two sets of four LEDs. The
NX-1200 has two sets of two LEDs (see FIG. 8).
FIG. 8 SERIAL LEDs
RELAYS LEDs
The RELAYS LEDs light red to indicate that the corresponding relay port is active. The light toggles off when the relay
port is not engaged.
There are eight RELAY LEDs on the NX-3200 and NX-4200. The NX-2200 has four RELAY LEDs (see FIG. 9).
FIG. 9 RELAYS LEDs
LED Patterns
Mode Description Status Output Input
OS Start Starting the Operating System ON ON ON
Boot On-board Master is booting ON OFF ON
Contacting
DHCP server
On-board Master is contacting a
DHCP server for IP configuration
information
ON OFF Fast Blink
Using link-local
address
On-board Master could not find a
DHCP server and is using a
link-local address
Slow Blink OFF OFF
Downloading
Boot firmware
Downloading Boot firmware to the
Master’s on-board Flash memory
Fast Blink* Fast Blink* Fast Blink*
Program running Normal operation with a running
program
Slow Blink Normal Normal
No program
running
There is no NetLinx program
loaded or the program is disabled
ON Normal Normal
NX-4200
NX-2200/3200
NX-3200/4200
NX-2200
NX-1200
NX-3200/4200
NX-2200
