Wiring and Connections

Hardware Reference Guide - NX-Series NetLinx Integrated Controllers

In the above table, pin 1 is located on the right side of the port, and the pinouts count up to the left.

IR/SERIAL Port: Connections and Wiring

The IR/SERIAL ports provide IR transmit/one-way serial connections that support high-frequency carriers up to 1.142

MHz. You can simultaneously generate up to eight IR/Serial data signals on the NX-4200 and NX-3200, up to four on

the NX-2200, and up to two on the NX-1200.

These ports accept an IR Emitter (CC-NIRC) that mounts onto the device's IR window, or a mini-plug (CC-NSER) that

connects to the device's control jack. You can also connect a data 0 - 5 VDC device to these ports.

NX-3200 and 4200 units each ship with two CC-NIRC IR Emitters (FG10-000-11). NX-1200 and 2200 units ship with

one emitter each.

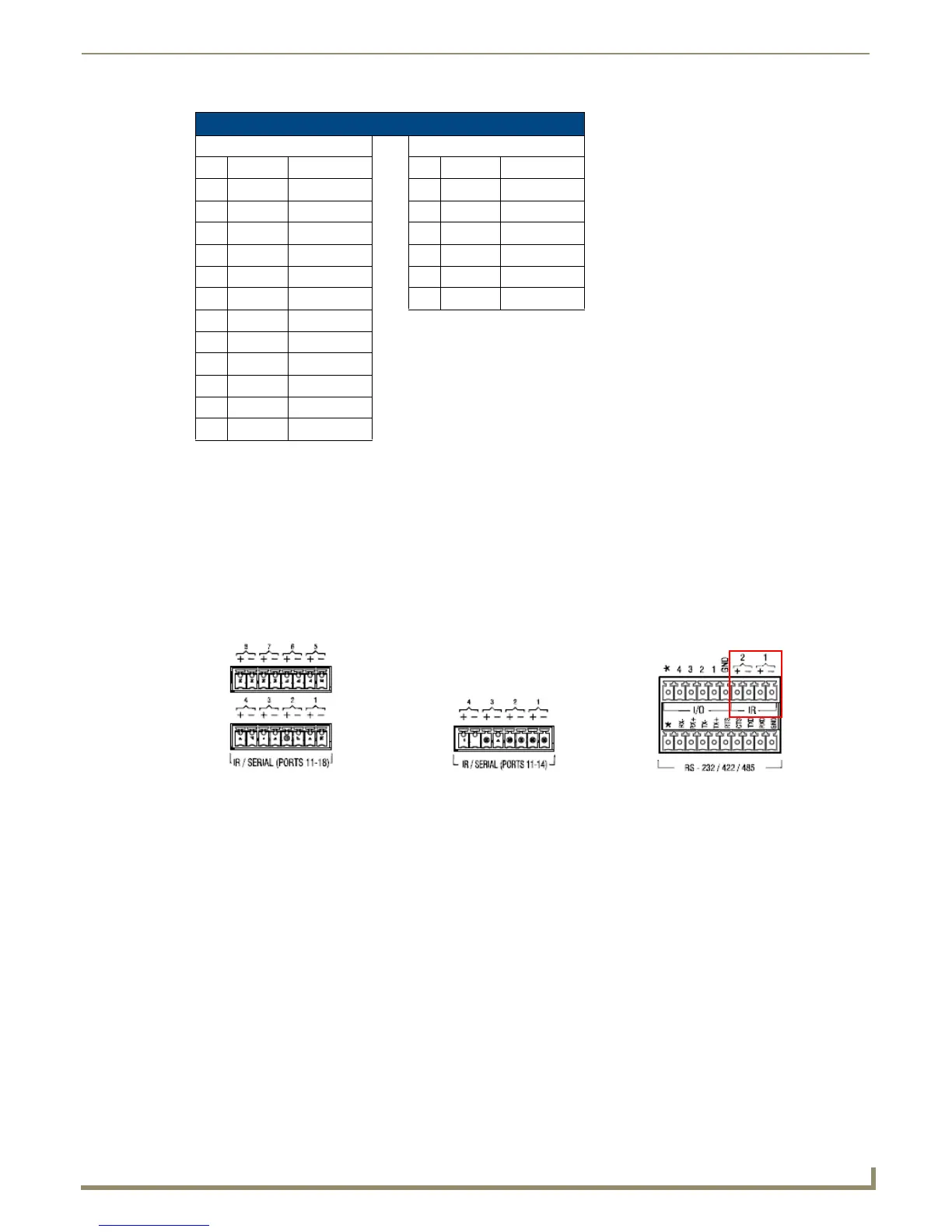

FIG. 19 displays the IR/SERIAL ports for each NX-series controller.

FIG. 19 IR/SERIAL connector (male)

Note: The maximum baud rate for ports using DATA mode is 19200. Also, DATA mode works best when using a short

cable length (< 10 feet).

Note: For each data signal, the negative (-) terminal is for Signal GND, and the positive (+) terminal is for IR/Serial

data.

I/O Port Wiring Specifications

NX-3200/4200 NX-1200/2200

Pin Signal Function Pin Signal Function

1 GND Signal GND 1 GND Signal GND

2 I/O 1 Input/Output 2 I/O 1 Input/Output

3 I/O 2 Input/Output 3 I/O 2 Input/Output

4 I/O 3 Input/Output 4 I/O 3 Input/Output

5 I/O 4 Input/Output 5 I/O 4 Input/Output

6 12 VDC PWR 6 12 VDC PWR

7 GND Signal GND

8 I/O 5 Input/Output

9 I/O 6 Input/Output

10 I/O 7 Input/Output

11 I/O 8 Input/Output

12 12 VDC PWR

NX-3200/4200

NX-2200 NX-1200
