Wiring and Connections
29
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
FIG. 21 provides wiring requirements for the AxLink connector:

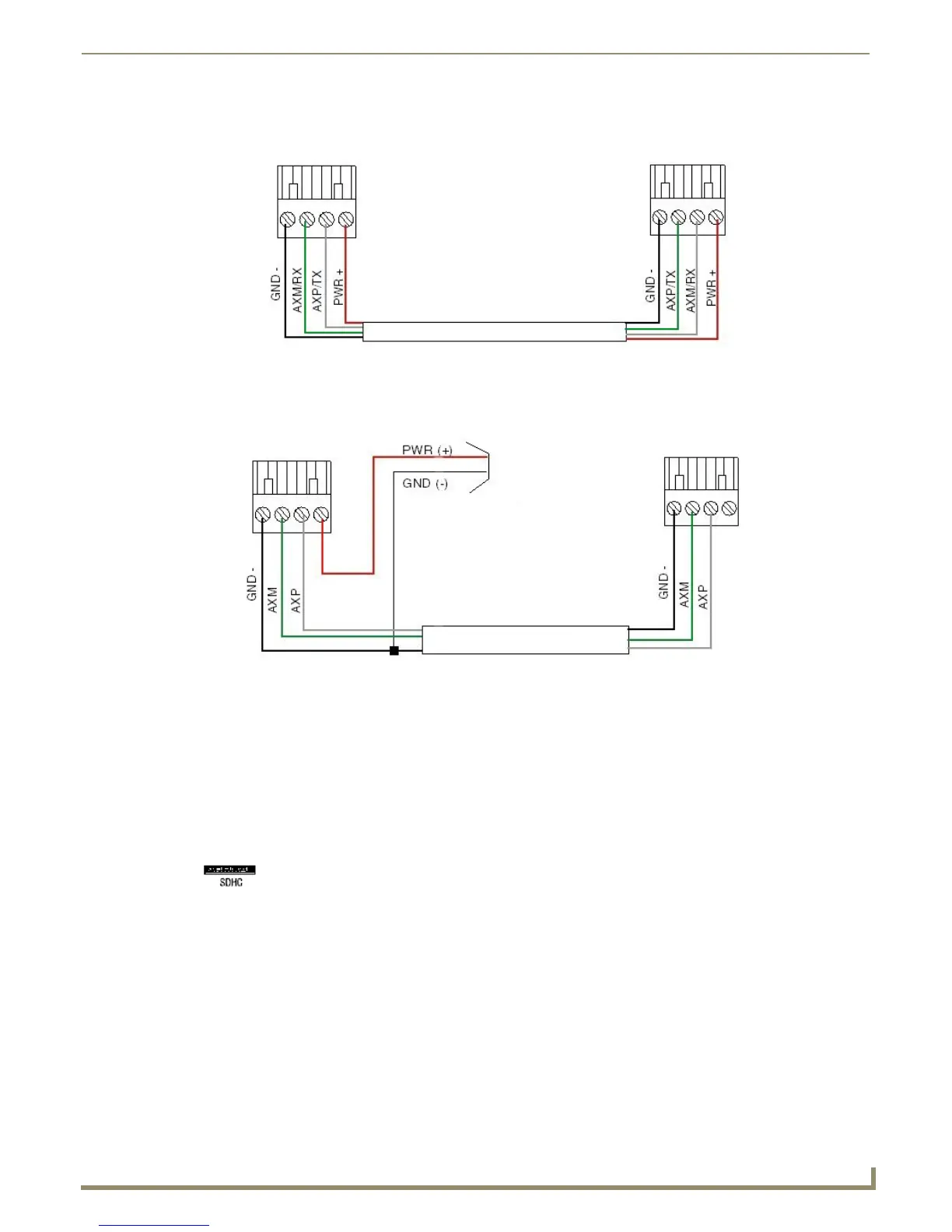

FIG. 21 Mini-Phoenix connector wiring diagram (direct data and power)
To use the 4-pin 3.5 mm mini-Phoenix (male) captive-wire connector for data communication and power transfer, the
incoming PWR and GND cable from the 12 VDC-compliant power supply must be connected to the AxLink cable
connector going to the central controller. FIG. 22 shows the wiring diagram:
FIG. 22 4-pin mini-Phoenix connector wiring diagram (using external power source)
WARNING! When you connect an external power supply, do not connect the wire from the PWR terminal (coming from
the external device) to the PWR terminal on the Phoenix connector attached to the Controller unit. Make sure to connect
only the AXM, AXP, and GND wires to the Controller’s Phoenix connector when using an external power supply.
Make sure to connect only the GND wire on the AxLink/PWR connector when using a separate 12 VDC power supply.
Do not connect the PWR wire to the AxLink connector’s PWR (+) opening.
SDHC Card Slot
The NX-3200 and NX-4200 each feature an externally accessible SDHC card slot.
Note: The card slot is reserved for future use. Do not install a card in the card slot at this time.
FIG. 23 displays the SDHC card slot.
FIG. 23 SDHC Card Slot
Top view
Top view
To the Controller’s
AxLink/PWR connector
To the external AxLink device
Top view
Top view
To the Controller’s
AxLink/PWR connector
To the external AxLink device
Local 12+ VDC
power supply
(coming from an
external
power supply)
