Overview
8
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
NX-2200
The NX-2200 (FG2106-02) has 512MB of on-board RAM, a 4GB CompactFlash card, and is Device
Discovery enabled to simplify programming by standardizing device and function definitions, default touch
panel button assignments, and control and feedback methods. A complete list of device specifications is listed
below.

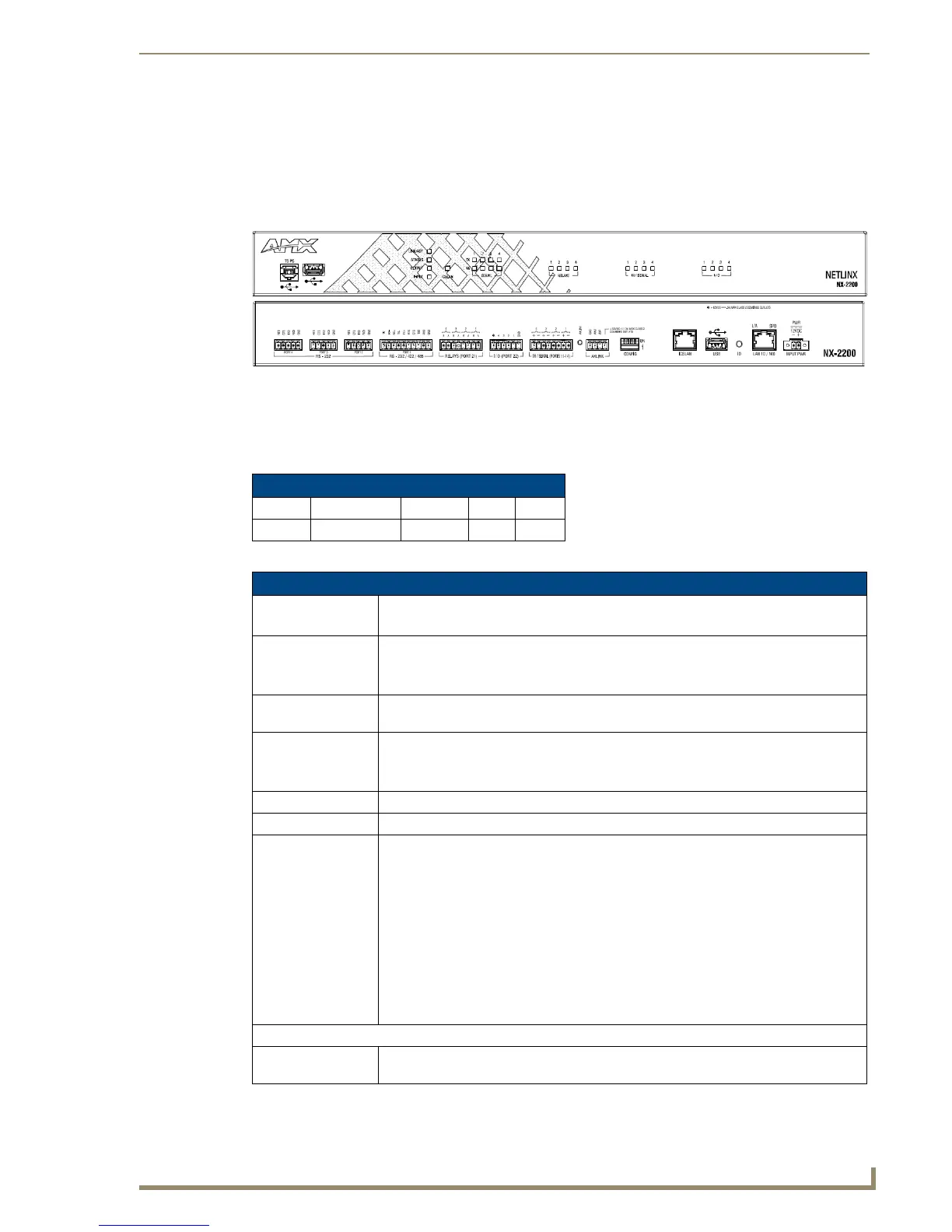

FIG. 3 displays the NX-2200.
FIG. 3 NX-2200 (front and rear panels)
Note: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest
version of NetLinx Studio 4.0 (available for download from www.amx.com).
Port Numbers
The following table lists the port numbers for the NX-2200:
NX-2200 Specifications
NX-2200 Port Numbers
RS-232 RS-422/485 IR/Serial I/O Relay
2-4 1 11-14 22 21
NX-2200 Specifications
Dimensions (HWD): 1.766" x 17" x 9.12" (44.85mm x 431.8mm x 231.64mm)
RU: 1
Active Power
Requirements:
• DC input voltage (typical): 12 V
DC
• DC current draw: 250 mA @ 12 V
DC
• DC range, voltage: 9-18 V
DC
Active Power
Consumption:
4.2W
Memory: • 512 MB RAM
• 1 MB Non-volatile RAM (NVRAM)
• 8 GB Internal MicroSD memory card
Weight: 6.08 lbs (2.7578 kg)
Enclosure: Metal with black matte finish
Certifications: • FCC CFR Title 47 Part 15
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
• IEC 60950-1
• UL 60950-1
• C-Tick CISPR 22
• IC CISPR 22
• VCCI CISPR 22
• RoHS / WEEE compliant
Front Panel Components:
Program Port: 1 Type-B USB port that can connect to a USB port on a PC and access the NetLinx
Studio program for controller configuration.
