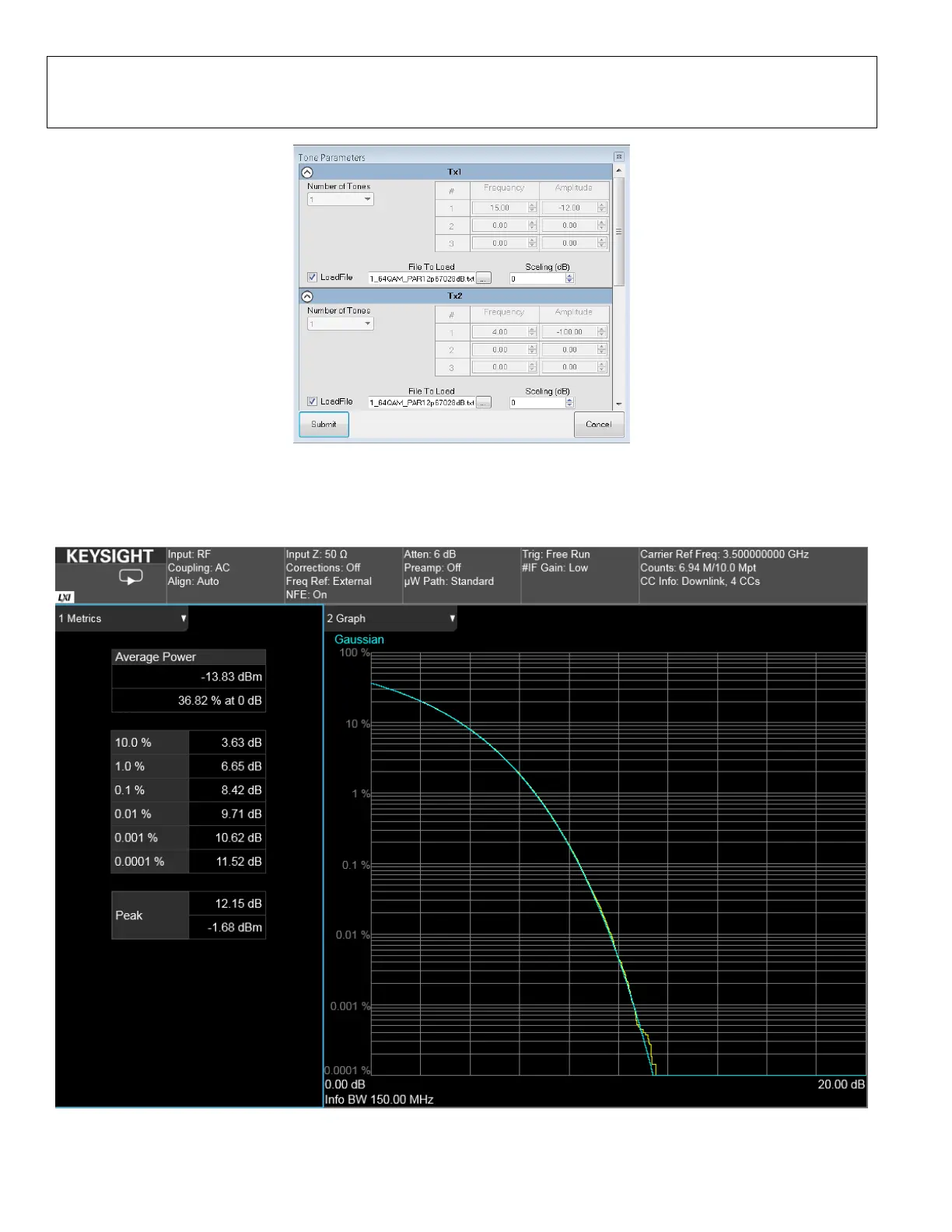

Figure 55. Load Waveform Using Transceiver Evaluation Software
After loading the waveform, it is transmitted using the ‘Play’ button on the transmit tab. As an example, an LTE 20 MHz waveform
with PAR of 12.2dB is used here. The uncorrected waveform’s Complementary Cumulative Distribution Function (CCDF) is shown
in Figure 56.
Figure 56. CCDF of an Example 20 MHz LTE Signal with PAR of 12.2 dB (Uncorrected Waveform)
