Analog Devices ADRV9029 User Manual

Preliminary Technical
Data
Rev. PrA | Page 78 of 82

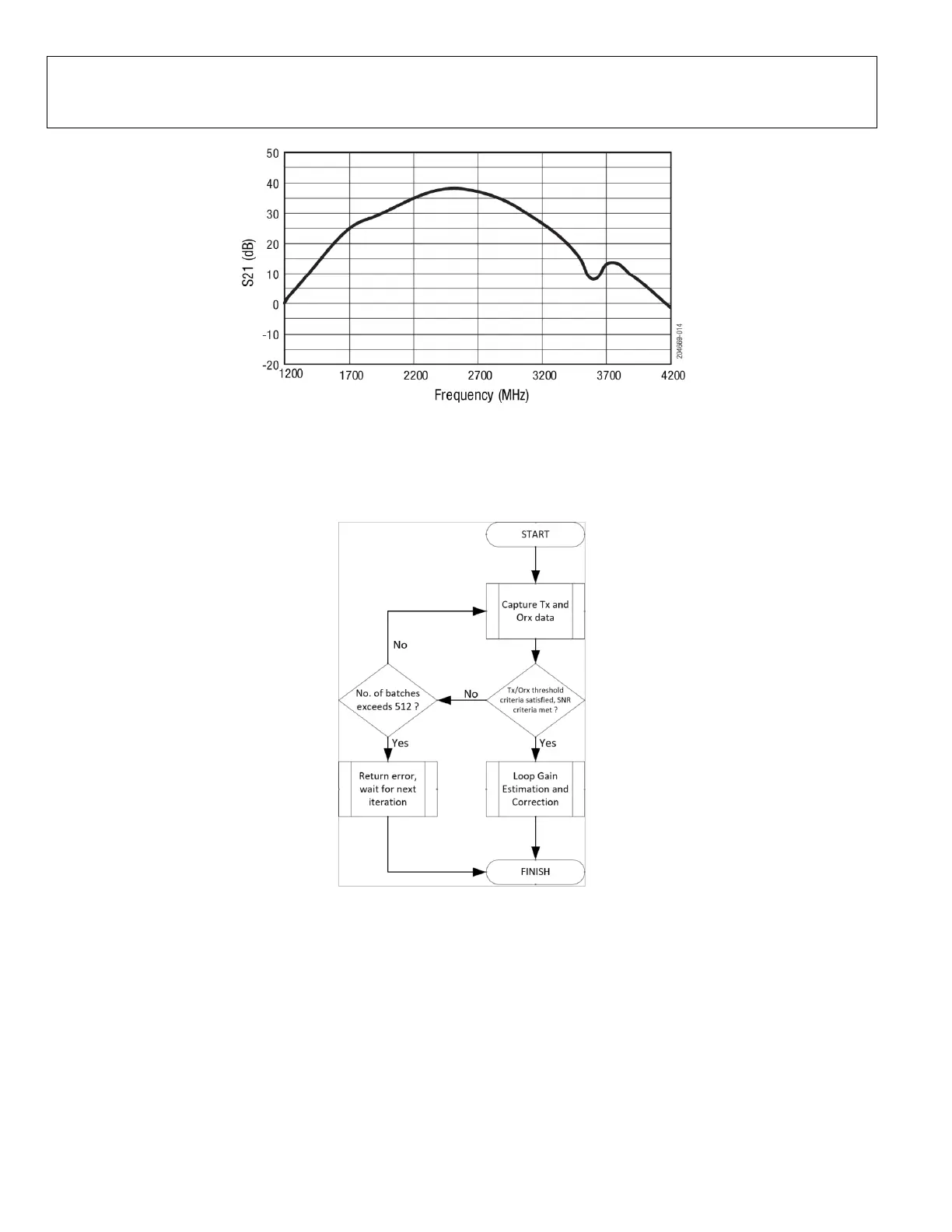

Figure 75. Forward gain of SKY66397 PA vs frequency
CLGC Loop Gain Estimation
Shown in Figure 76 is a simplified overview of CLGC loop gain estimation. A more detailed flow of measurement can be found in
CLGC Measurement section. The CLGC algorithm captures Tx and ORx data in batches. If the captured data meets the required
threshold and SNR criteria, the CLGC algorithm proceeds to estimate the loop gain and apply the Tx attenuation correction.
Figure 76. Simplified flow diagram of CLGC data sampling
