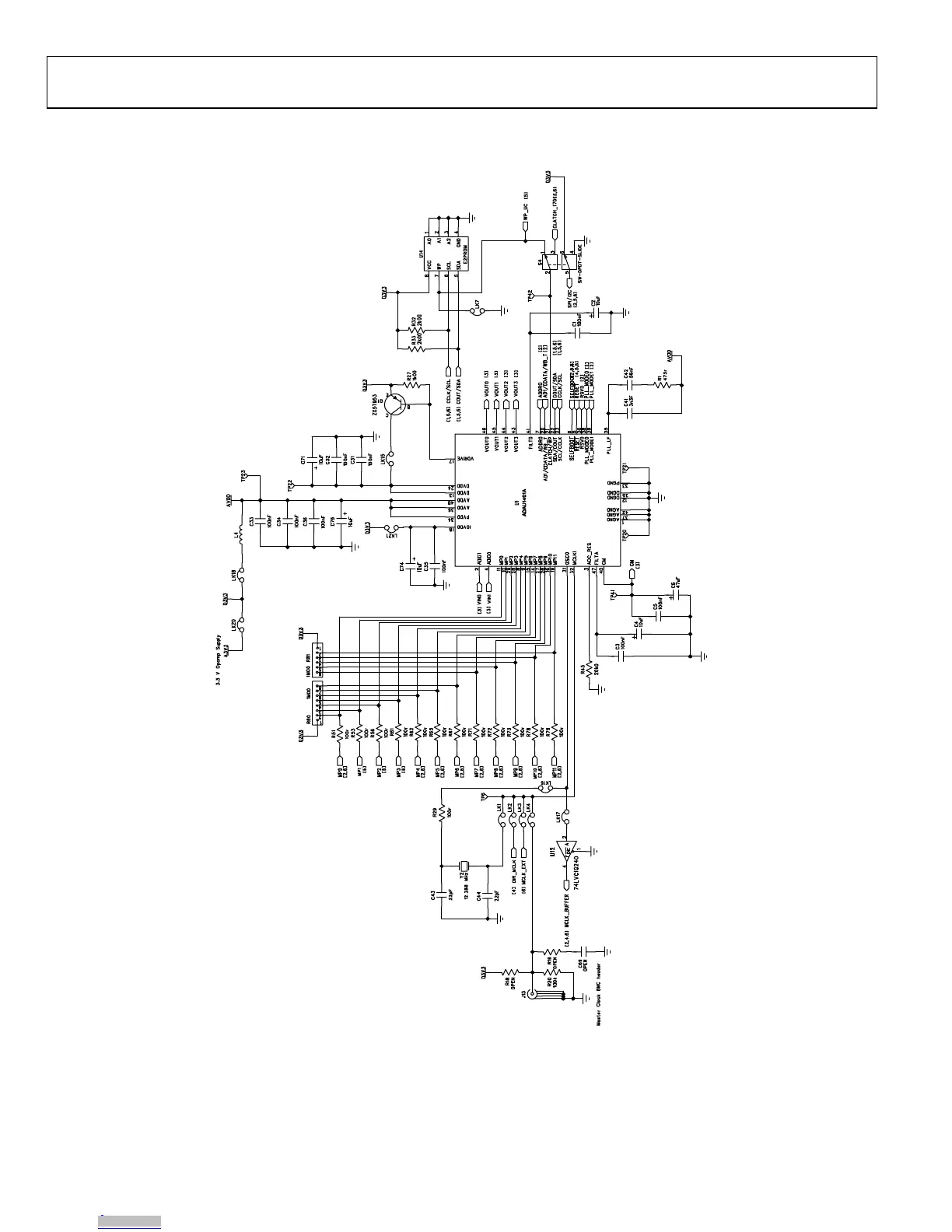

EVAL-ADAU1701MINIZ
Rev. 0 | Page 10 of 12
ORDERING INFORMATION
BILL OF MATERIALS
Table 5.
Item Qty Reference Designator Description Manufacturer Part Number
1 5 C1, C2, C10, C11, C12
Multilayer ceramic 50 V, NP0
(0402), 1.0 nF
Murata ENA GRM1555C1H102JA01D
2 3 C13, C14, C31
Multilayer ceramic 16 V, X7R
(0402), 56 nF
Kemet C0402C563K4RACTU
3 2 C15, C16
SMD tantalum capacitor SMD,
N 6.3 V, 220 μF
Nichicon F930J227MNC
4 6 C18, C19, C20, C23, C35, C36
Multilayer ceramic 10 V, X7R
(0805), 10 μF
Murata ENA GRM21BR71A106KE51L
5 2 C21, C22
Tantalum capacitor 105° SMD,
100 μF
Kemet T520B107M004ATE035
6 3 C24, C44, C46
SMD tantalum capacitor 6.3 V,
(0805), 10 μF
Rohm TCP0J106M8R
7 1 C29
Multilayer ceramic 50 V, X7R
(0402), 3.3 nF
Panasonic EC ECJ-0EB1H332K
8 2 C33, C34
Multilayer ceramic 50 V, NP0
(0402), 100 pF
Murata ENA GCM1555C1H101JZ13D
9 19
C3, C4, C5, C6, C8, C9, C17, C25,
C26, C27, C28, C30, C32, C37,
C38, C41, C42, C43, C45
Multilayer ceramic 16 V, X7R
(0402), 0.10 μF
Panasonic EC ECJ-0EX1C104K
10 2 C39, C40
Multilayer ceramic 50 V, NP0
(0402), 22 pF
Murata ENC GRM1555C1H220JZ01D
11 1 C7
SMD tantalum capacitor 6.3 V,
(0805), 15 μF
Rohm TCP0J156M8R
12 2 D1, D2
Schottky 30 V, 0.5 A, SOD123
diode
On Semiconductor MBR0530T1G
13 1 D3
Green diffused 10 mcd, 565 nm
(1206)
Lumex Opto SML-LX1206GW-TR
14 1 D4
Red diffused 6.0 mcd, 635 nm
(1206)
Lumex Opto SML-LX1206IW-TR
15 2 D5, D6
Yellow diffused 4.0 mcd,
585 nm 1206
CML Innovative Tech CMD15-21VYD/TR8
16 1 J1 Not populated (open)
17 1 J2 Mini power jack 0.08" R/A TH Switchcraft, Inc. RAPC722X
18 1 J3
2-pin header unshrouded
jumper 0.10"; use shunt Tyco
881545-2
Sullins Electronics Corp. PBC02SAAN
19 1 J4
Connector terminal block,
2.54 mm, 4 position, 20 - 26
awg screw clamp
Phoenix Contact 1725672
20 2 J5, J6 Stereo mini jack, SMT CUI, Inc. SJ-3523-SMT
21 1 J7
8-way, unshrouded header,
dual row, 2 × 4
Sullins Electronics Corp PBC04DAAN
22 1 J8
10-way, shroud polarized
header, 2 × 5
3M N2510-6002RB
23 7 L1 to L7
Chip ferrite bead 600 Ω @
100 MHz
TDK Corp. MMZ1005S601C
24 1 Q1 PNP transistor, 40 V, 3 A, SOT-23 Zetex, Inc. ZXTP25040DFHTA
25 1 Q2 NPN transistor, GP, 40 V, SOT-23 Micro Commercial Co. MMBT2222A-TP
