MAX30001 Evaluation System Evaluates: MAX30001
MAX30002
Advanced Tab
The Advanced tab (Figure 16) is accessible through the Options ToolStrip menu. The tab provides manual communication with
the MAX30001 to bypass the GUI controls entirely. Enter the register address, as a hexadecimal value, in the Address
eld. Read data from a register by pressing the ReadReg button and the data will populate the Read Data eld. To write
data, enter the hexadecimal value in the Write Data eld and press the WriteReg button. Command Line displays the
formatted command sent by the GUI to the EV kit.

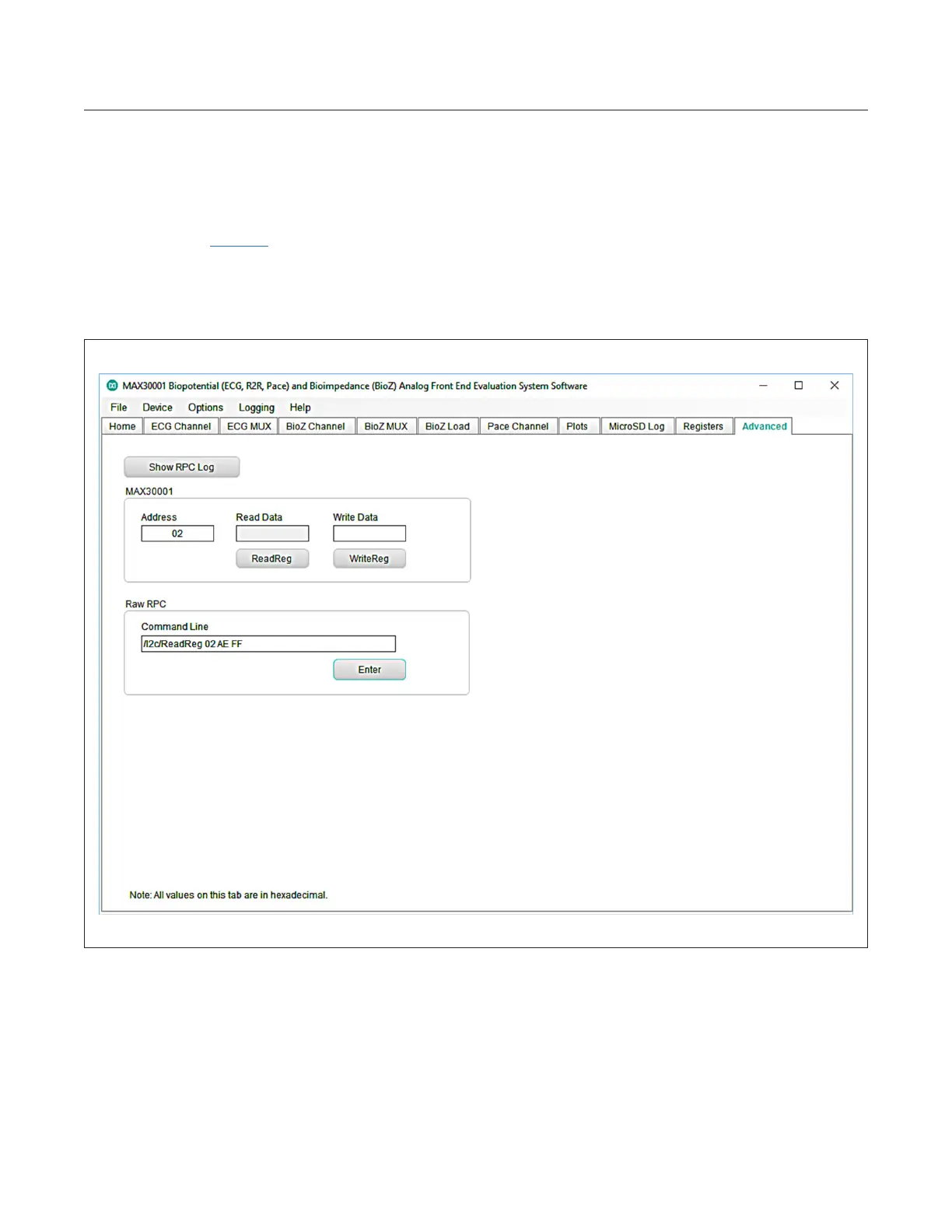

Figure 16. Advanced Tab.
