Filter

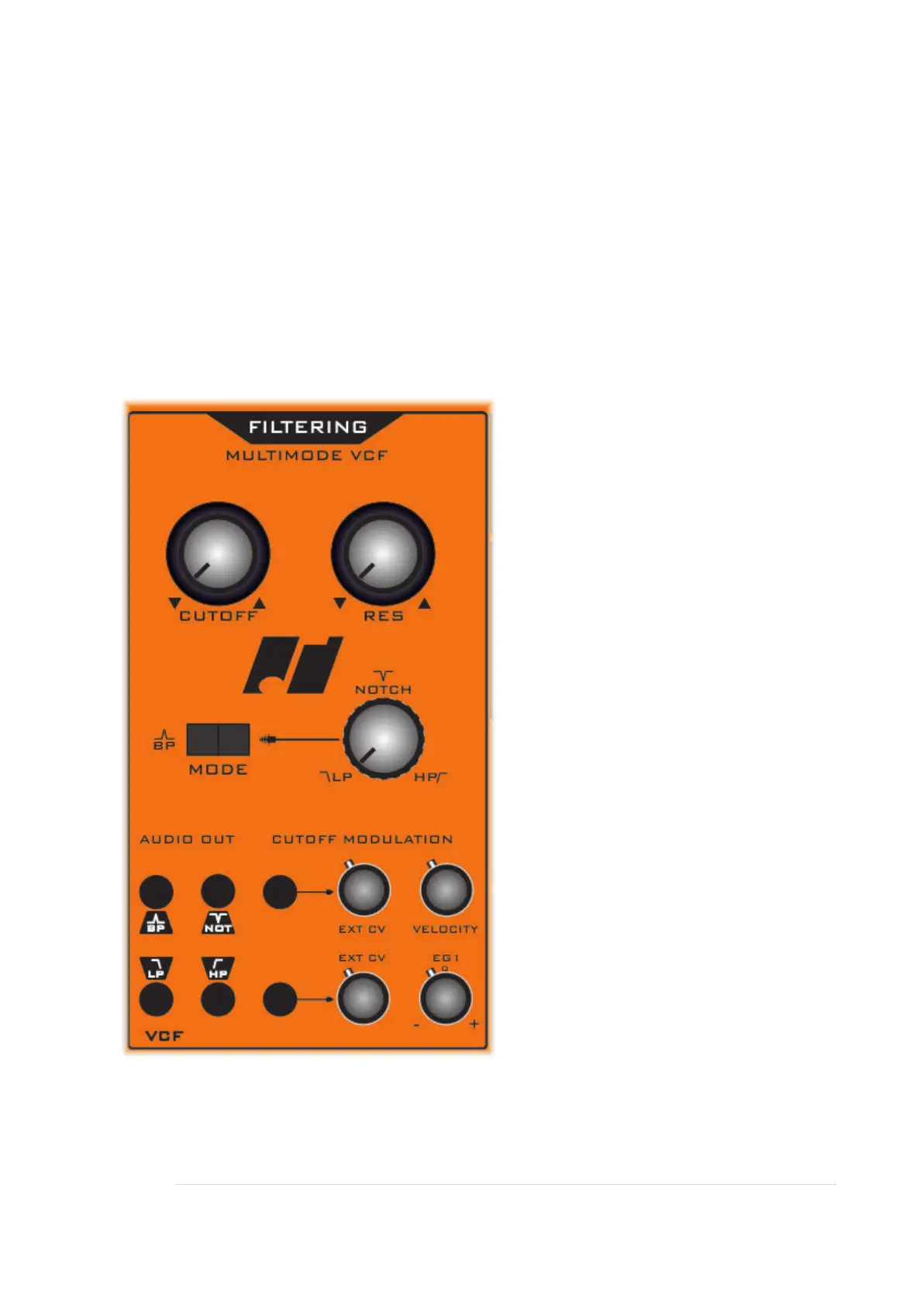

FUSEBOX X has a 12db / Octave analogue multimode filter. There are four filter
types. Low pass, High pass, Notch and Band pass.
FREQ
Used to set the frequency cut-off.
RES - Resonance
Used to set the resonance / feedback
level.
MODE
This switch changes the output signal of
the filter from Band Pass to LP/HP/Notch.
When left, Band Pass is selected.
When right, the filter type set by the
adjacent control is selected.
When the control is fully left, the filter is
Low Pass.
When the control is fully right, the filter is
High Pass.
Centre is Notch.
But of course the control can be set to
anything in-between!
The audio output of the filter is then sent
to the VCA.
There are also four audio output jacks from the filter.
Each filter type has its own output: LP, HP, Band, Notch.
