Andel Floodline 32 - M8 Plug & Play Cable Plug Connection Details

FL 128 Multizone System 15.01.2021 53

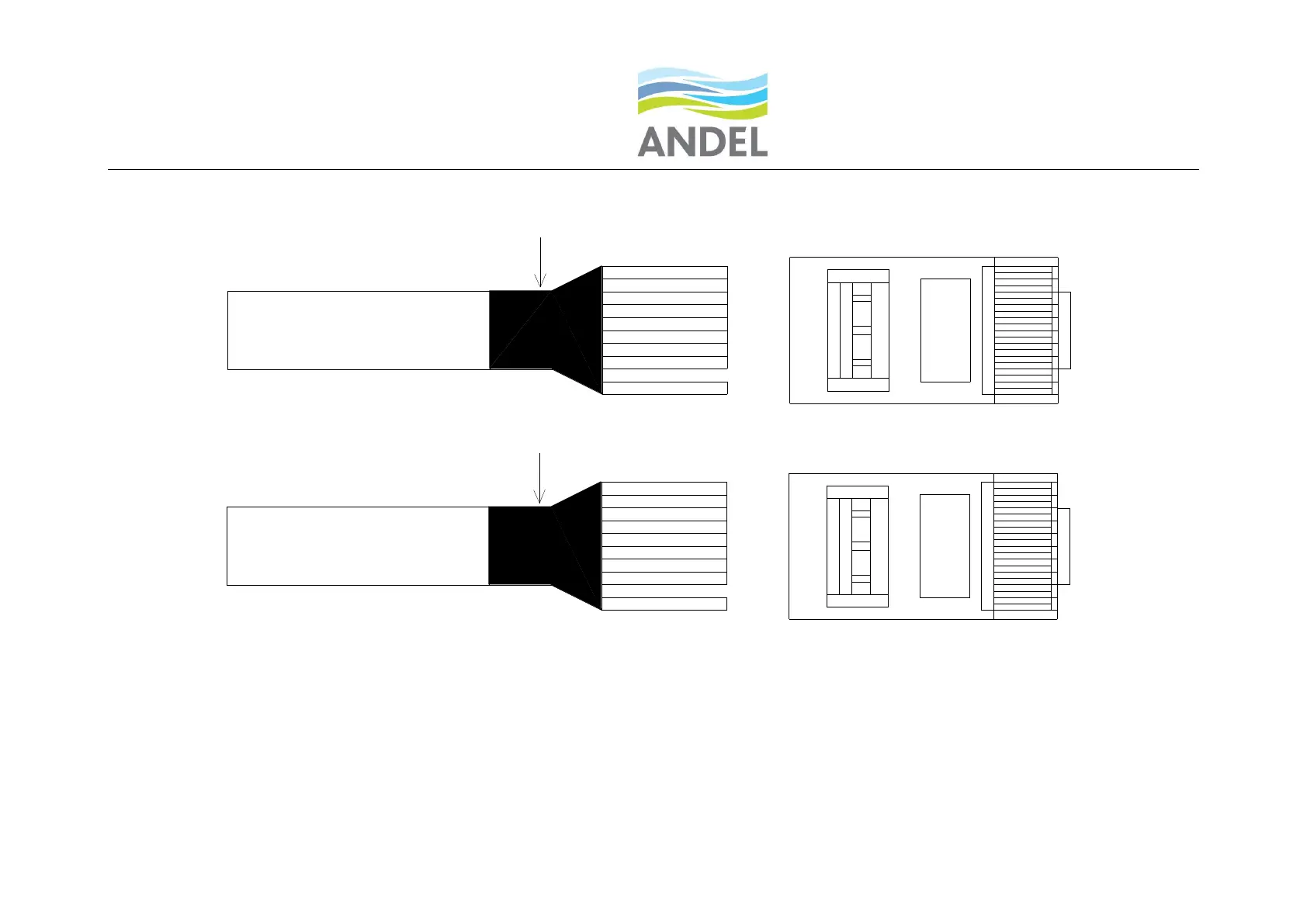

M8 Plug & Play Cable Plug Connection Details
BLUE
WHITE
BROWN
PURPLE
ORANGE
BLACK
GREEN
RED
YELLOW
LEADER CABLE
HEAT SHRINK
Note
Black 1 is between Blue and Green core
Black 2 is between Yellow and White core
The 2 Black cores are conductive polymer they must note be
allowed to touch each other as this will cause an alarm.
HEAT SHRINK
M8 DETECTION
CABLE
YELLOW
BLACK 1
PURPLE
BLACK 2
GREEN
RED
ORANGE
WHITE
BLUE
