READY PASS PERROR
A
%
S
起动
RUN
设置
SET
确认
YES
停止
STOP
Ready Running
Fault
起动
RUN
停止
STOP
设置
SET
确认
YES
确认
YES
起动
RUN
停止
STOP
-9- -10-

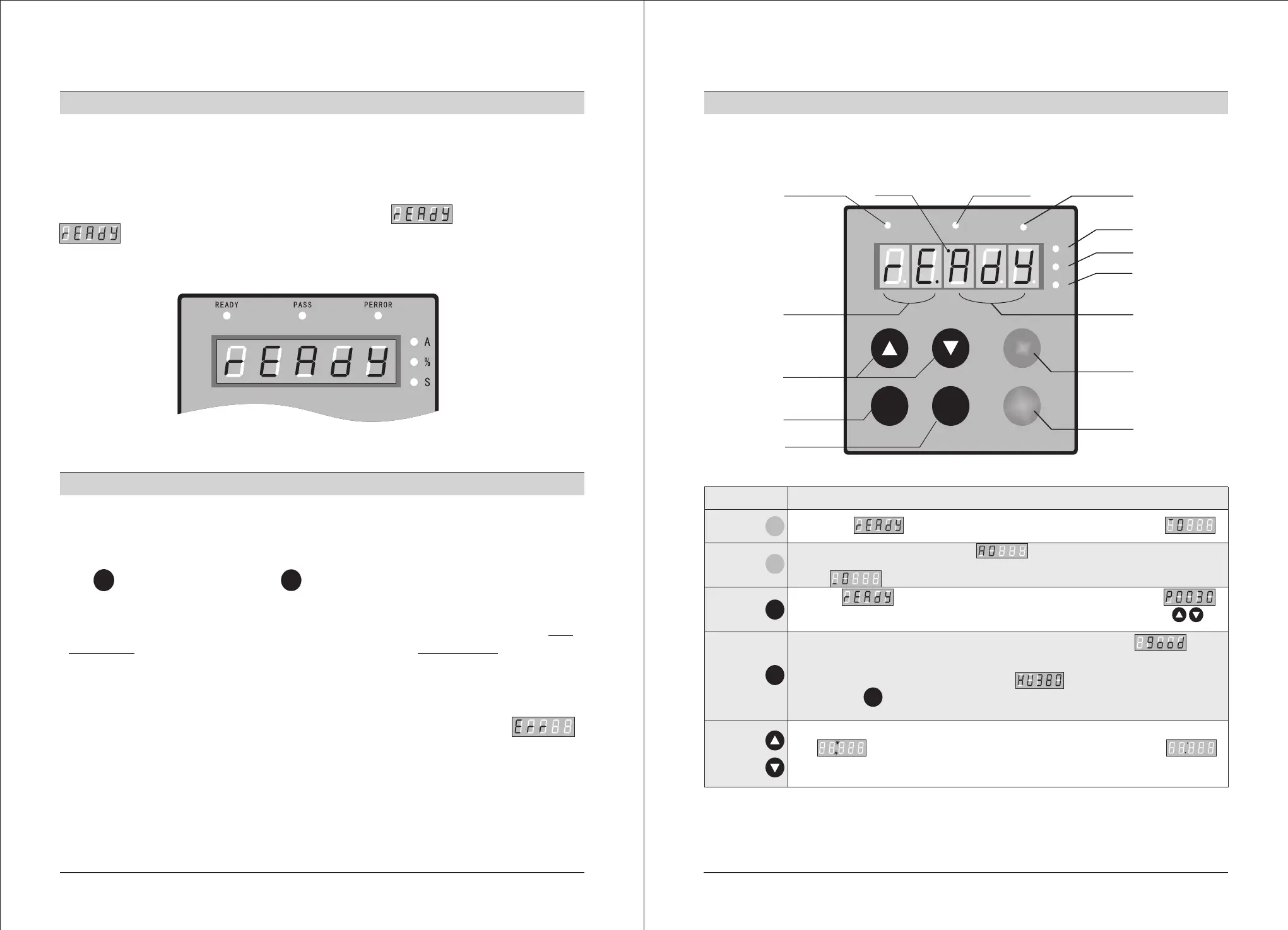

3. Operation
3-1 Inspection and preparation before operating
Before operating, please check the following points.
Check if the wiring is right (especially the output terminals can not connect with power supply),
if the bypass contactor is firmly connected, and if the grounding terminal is earthed in fine condition.
Please confirm that there is not short-circuit or shortened to earth phenomenon among termin-
als and naked electriferous parts.
After the power supply is turn on, the keyboard will display (ready) or readiness
and meanwhile, the ready indication lamp brightens.
See diagram 3-1-1.
Diagram 3-1-1
3-2 Operation method
Choose the most suitable operation method according to the application requirements.
After confirm that there is no abnormal phenomenon, then you can trial run the machine. When
the product leaves the factory, it is set into keyboard with terminal and operation mode.
Press FP to set the rated power current on the nameplate of motor.
Press key to start the machine and key to stop it.
To see if the rotation direction of motor accord with the requirements.
If the motor starting action is not satisfactory, you can adjust the set basic function in Page11.
If the starting torque of the motor is not enough, you can improve it through changing the star-
ting voltage P0 (this way is effective when it is voltage mode) or cut-off current P6 (this way is
effective when it is current mode).
To see if the motor rotates stably (No whistler sound and vibration).
If there isn't any abnormal phenomenon, then you can put it into formal operation.
Notice:
1. If the running of soft starter and motor is abnormal, or it displays fault code ,
please stop the machine immediately, and find out the cause according tofault diagnosis in
P18.
2.When the site temperature is lower than 10C, please electrified and preheat for more than 30
minutes and then start the machine.
4. Keyboard panel
4-1 Appearance of the keyboard
The keyboard has plenty of operating functions, such as functional data of confirmation and
changing for keyboard running and stopping, and various status confirmation, etc.
Function code
Up and down keys
Setting key
Confirmation key
Indication lamp
of preparation
Colon
Indication lamp
of bypass running
Fault indication lamp
Current
Percent
Second
Starting key
Stop key
Data code
Key name
Main functions
Table 4-1-1 Functions of the operating keys
Starting key
When display , press this key, it starts, and meanwhile displays starting state .
Stop key
Setting key
Confirm-
ation key
Up and
down
keys
1. When it is normal running, it displays (current value) and the bypass indication
lamp lightens, press this key can stop the machine. When the machine is fully stopped, it will
display . 2. This key has reset function.
It displays press this key and enter into the menu setting, when it displays ,
press it again.The colon flashes, at this moment, you can press Up and DOWN keys
to modify the parameter.
1. When finishing the modifying work, press this key to keep the parameter, display and give
sounds for two times, it means the data has been stored, press this key again or the stop key to exit.
2. Press this key and it displays the input supply voltage , refer to table 8-1 in Page14 for details
3. Press this key and power on at the same time to reset the parameter back to the factory value.
1. Enter into the menu setting, press this key to modify the parameter, (when the colon doesn't
flash , press the key to modify the function code. When the colon flashes
, press the key to modify the data code).
2. During running, press this key to observe the current A, power P and overload thermal equilibrium.
When the data is larger than 999, the last radix point will be brighten, it means add 0 to mantissa.
When press a key, there has sound given from the inner soft starter, if no, it means it is inefficient
to press this key.
The keyboard can be taken off, (when operate outside the cabinet) the length of the lead should be
less than 3m.
