User’s Manual for Node G
Network Elements
Page 18
M0121A2A.doc
3.1.2. Wall Mounting Procedure
• Check the wall mounting kit and the wall to determine their suitability.
• The maximum distance between the Node G Main Unit and Extension Unit is
1000 mm.
• Mark the position of the eight drilling holes (four per unit) for the Main and the
Extension Unit according to figure 3-1. Please observe that the figure always
shows a pair of drill holes for each position. Only drill one of each pair.
•

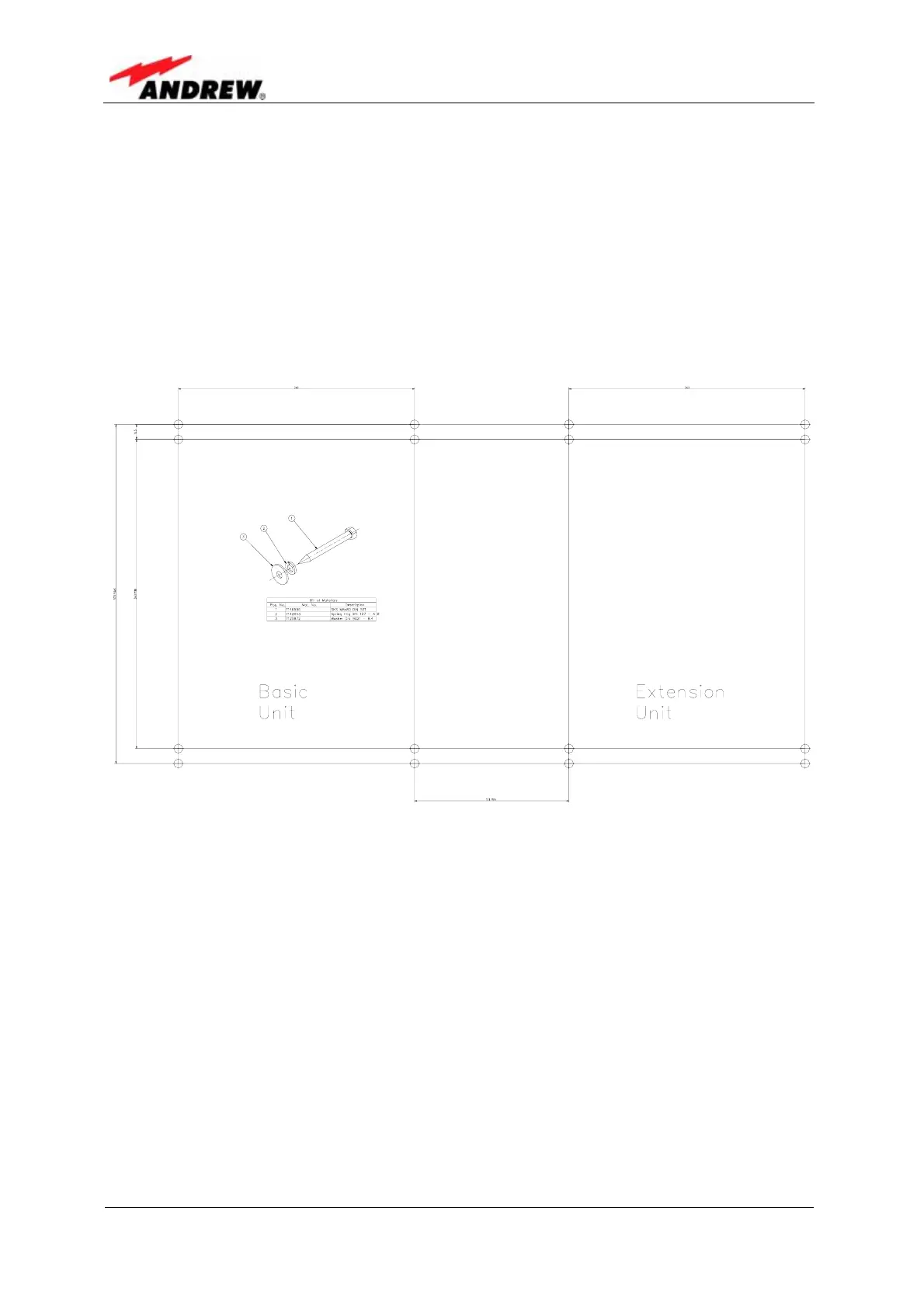

figure 3-1 Positions of drilling holes
