Andrew Node G 938 User Manual

4 Functional Description
ID No: 7164491 Page 37
4.3.3.2. Wireless Modem
The wireless modem allows remote
control and maintenance of the Node.
Parameters may be changed; alarm
and measurement statistics may be
acknowledged and collected in the
OMC.
The modem is installed in the sidewall
of the unit.
For technical data of the MC35 refer to
chapter Specification \ Modem.
To replace the modem, disconnect the
cables and loosen the elastic band.

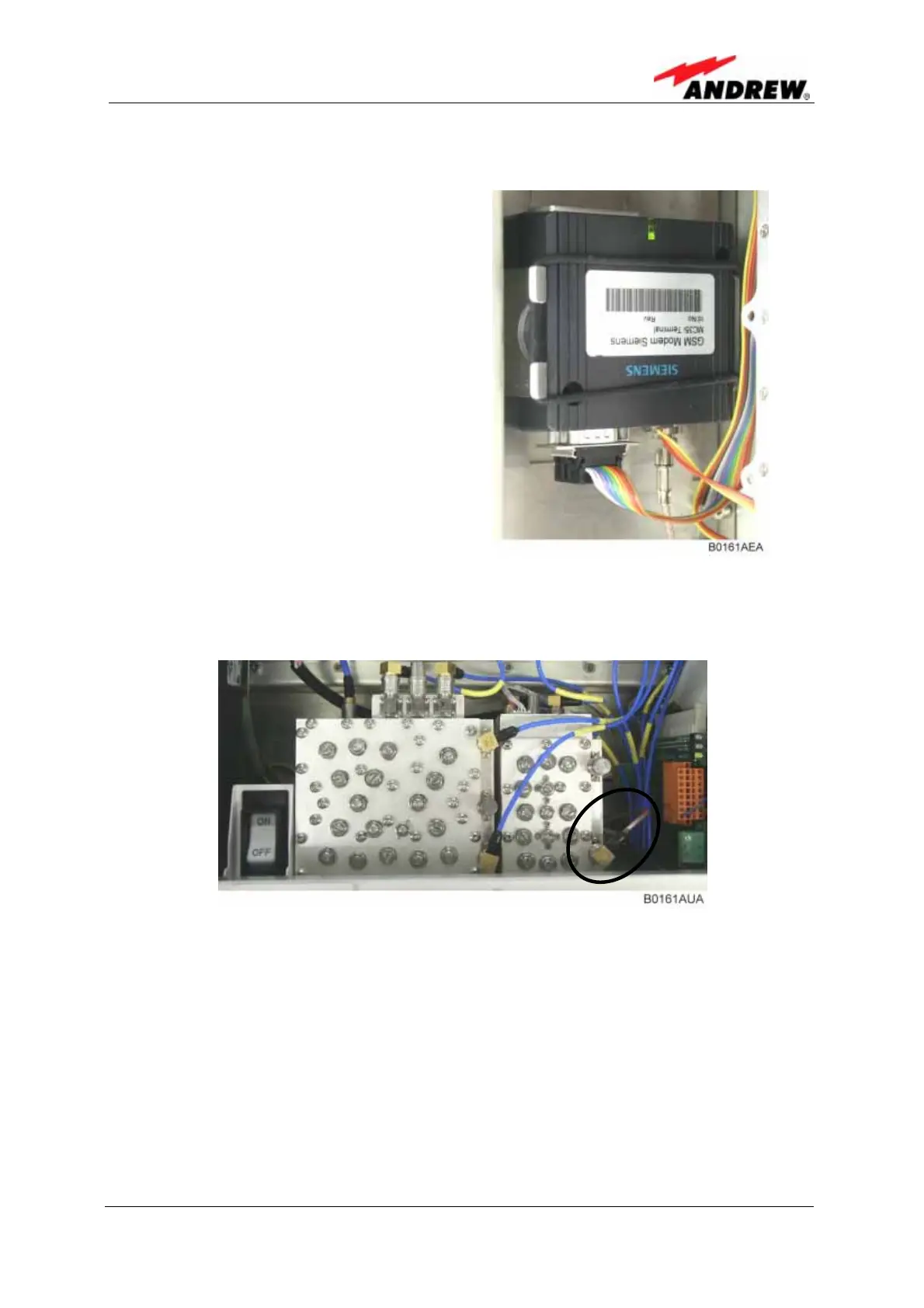

figure 4-7 Modem MC35
The modem output is connected to the modem coupler port of the DL IN duplexer.
figure 4-8 Cable from the modem to the DL IN duplexer
