3 Installation
ID No: 7164491 Page 21
The pole mounting kit 'back-to-back' consists of the following parts in different
quantities:
No Part
1 Pole mounting brace
2 Washer DIN 9021 – 8.4
3 Nut M8 DIN 934
4 Spring ring DIN 127 – A8
5 Thread-bolt M8
6 Washer M8 DIN 125
table 3-2 Components of pole mounting kit
The numbers in the above table refer to the numbering of the components in the
following figure.

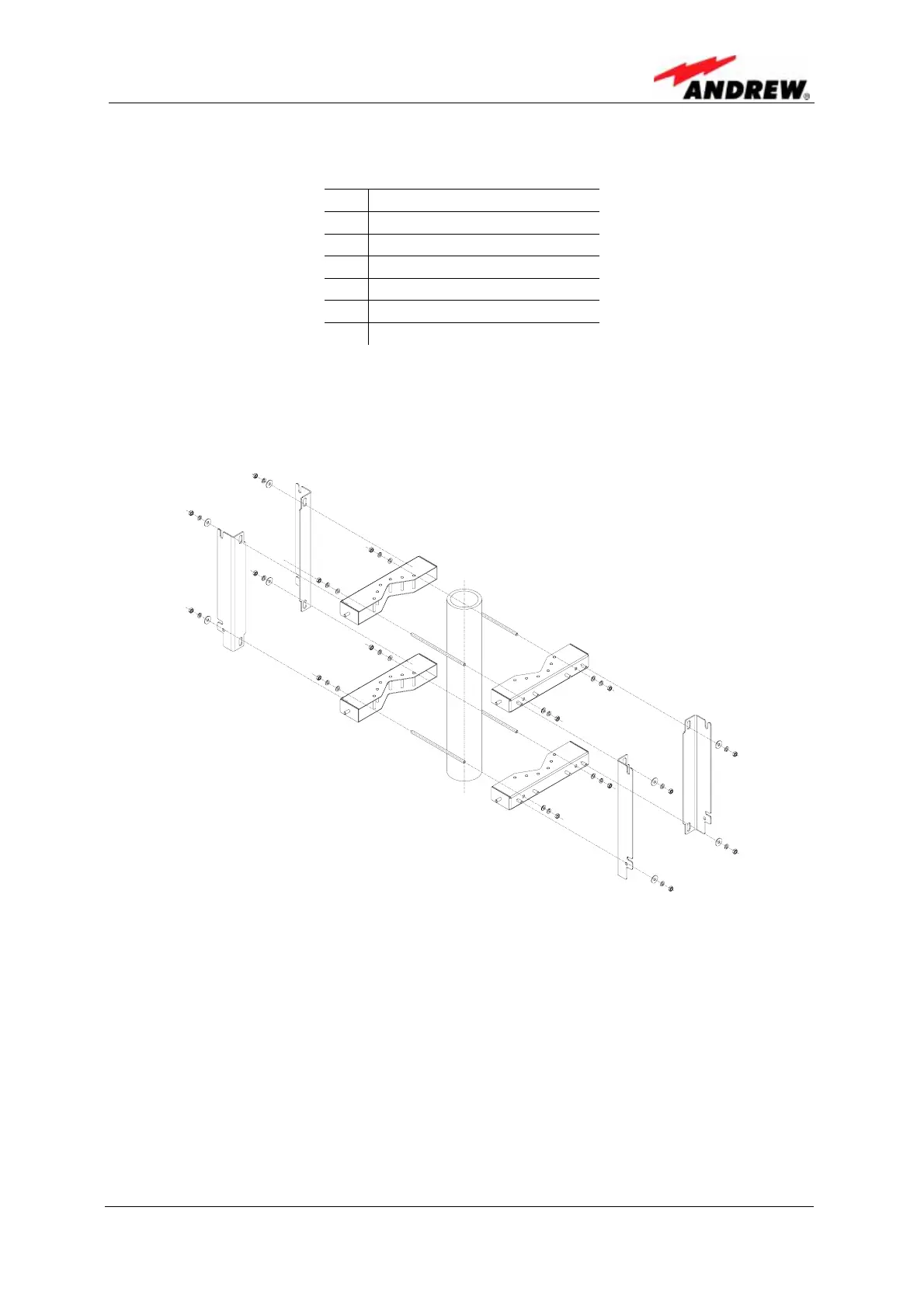

figure 3-5 Back-to-back pole mounting
Dismount the mounting brackets from the cabinets of the units by loosening the
hexagon head screws M10x20 by which the mounting brackets are screwed to the
housing (four per unit).
Do not unscrew those screws, only loosen them by approx. three turns and take off
the brackets.
Fasten the mounting brackets to the pole using the corresponding mounting kit as
illustrated above.
