4 Functional Description
ID No: 7164491 Page 41
4.3.5.1. Battery On/Off
A pushbutton on the EAC-card is employed to disconnect the battery pack from the
controller. This forces a hard reset of the system.
Once disconnected, the power to the controller will not be restored until the +24V
supply is again operational.

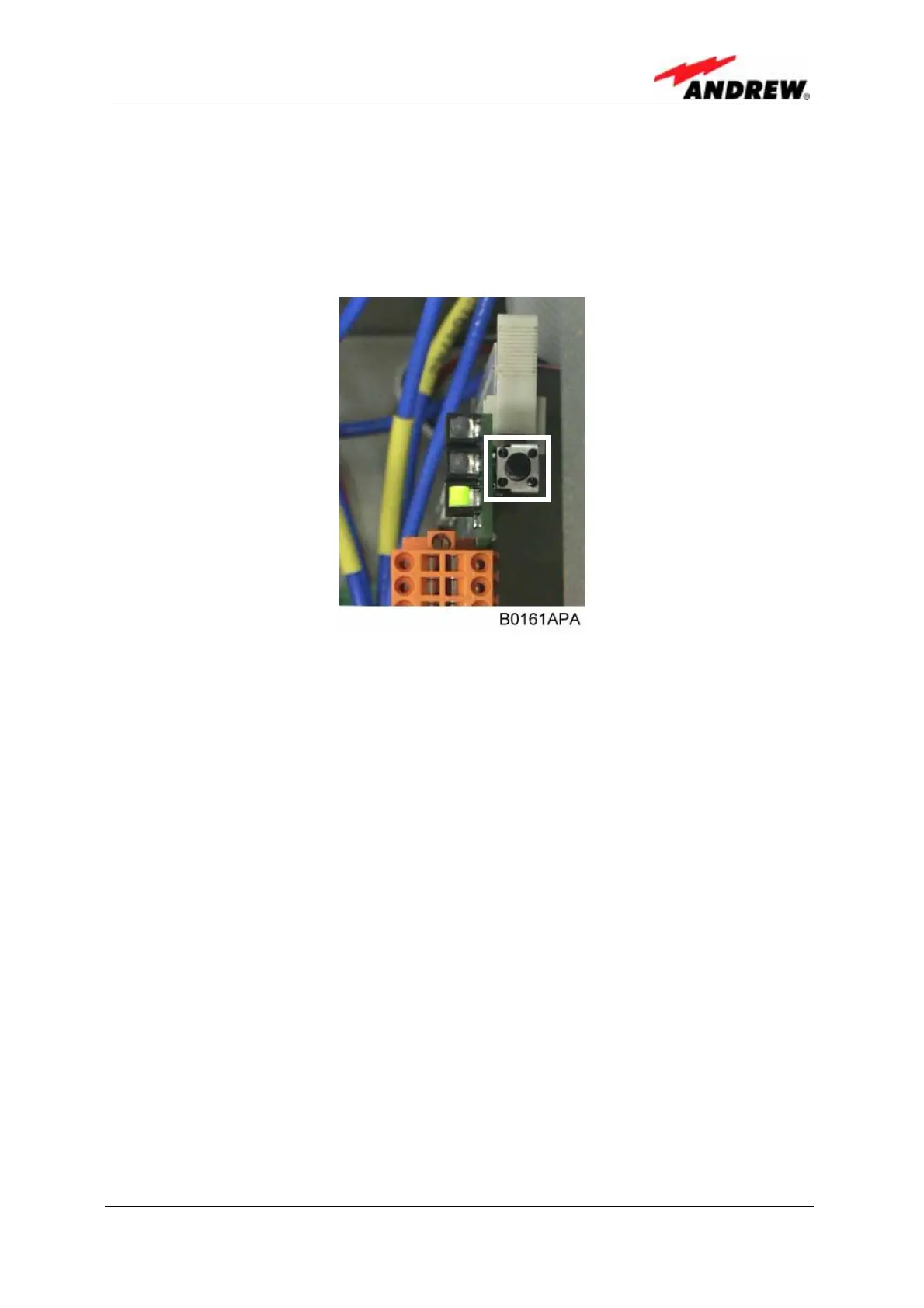

figure 4-13 Position of the battery disconnect button
on the EAC-card of the Main Unit
Battery
disconnect
button
