Andrew Node G 938 User Manual

4 Functional Description
ID No: 7164491 Page 33
4.3. COMPONENTS - MAIN AND EXTENSION UNIT
The current configuration can be seen at the configuration list, which is part of the
delivery and additionally as an electronic list accessible via software.

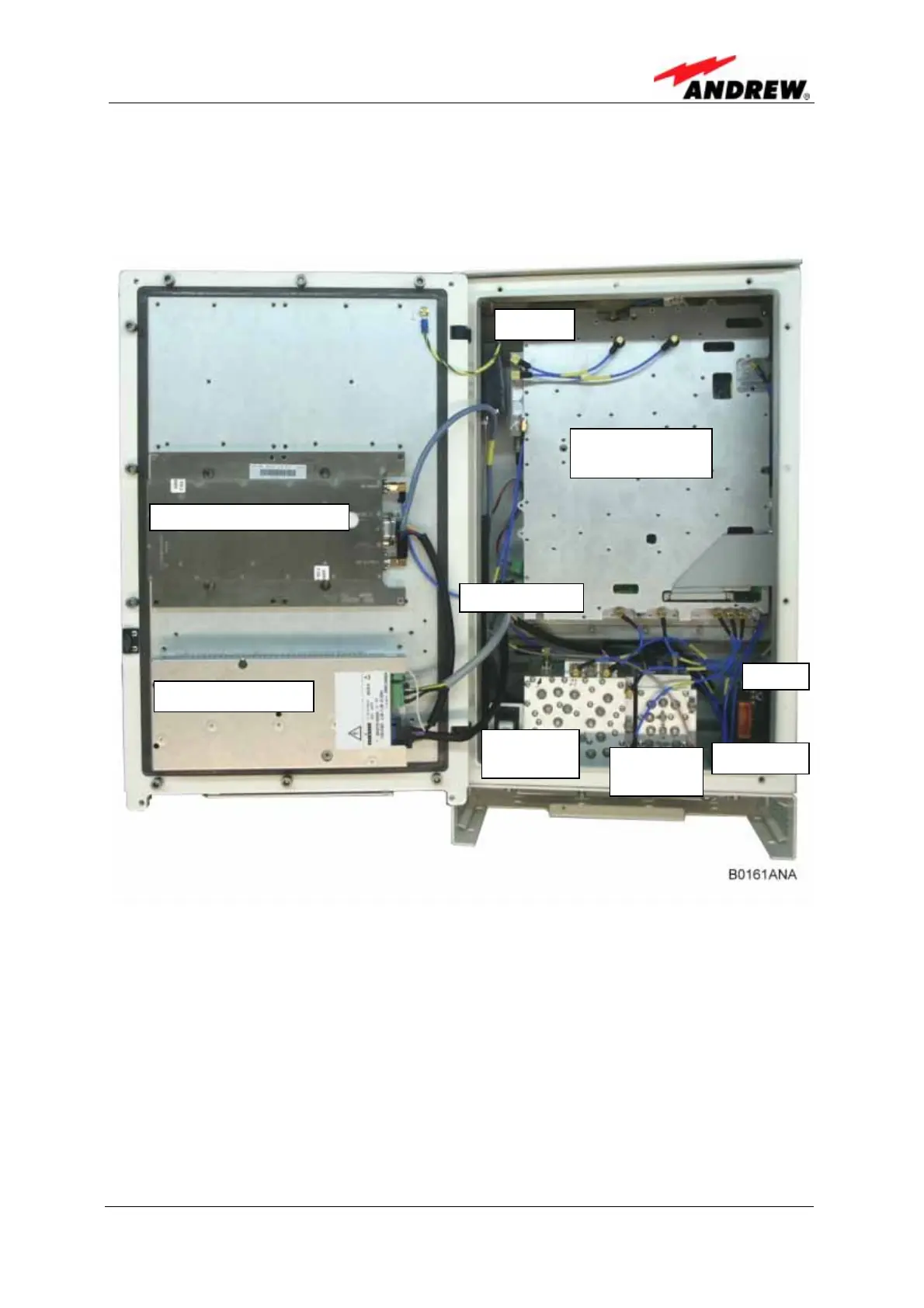

figure 4-3 Layout of a Node G 930
Downlink final amplifier
Power supply unit
UL
Duplexer
Digital channel
module
DL
Duplexer
EAC-card
Modem
Batter
y
Pack
LEDs
