3 Installation
ID No: 7164491 Page 23
3.2.2. Grounding
Grounding the Node G and Extension Unit is mandatory. Connect an earth bonding
cable to the grounding connections provided at the cabinets of both the Node G and
Extension Unit according to the following illustrations.
Do not use the grounding connections to connect external devices.

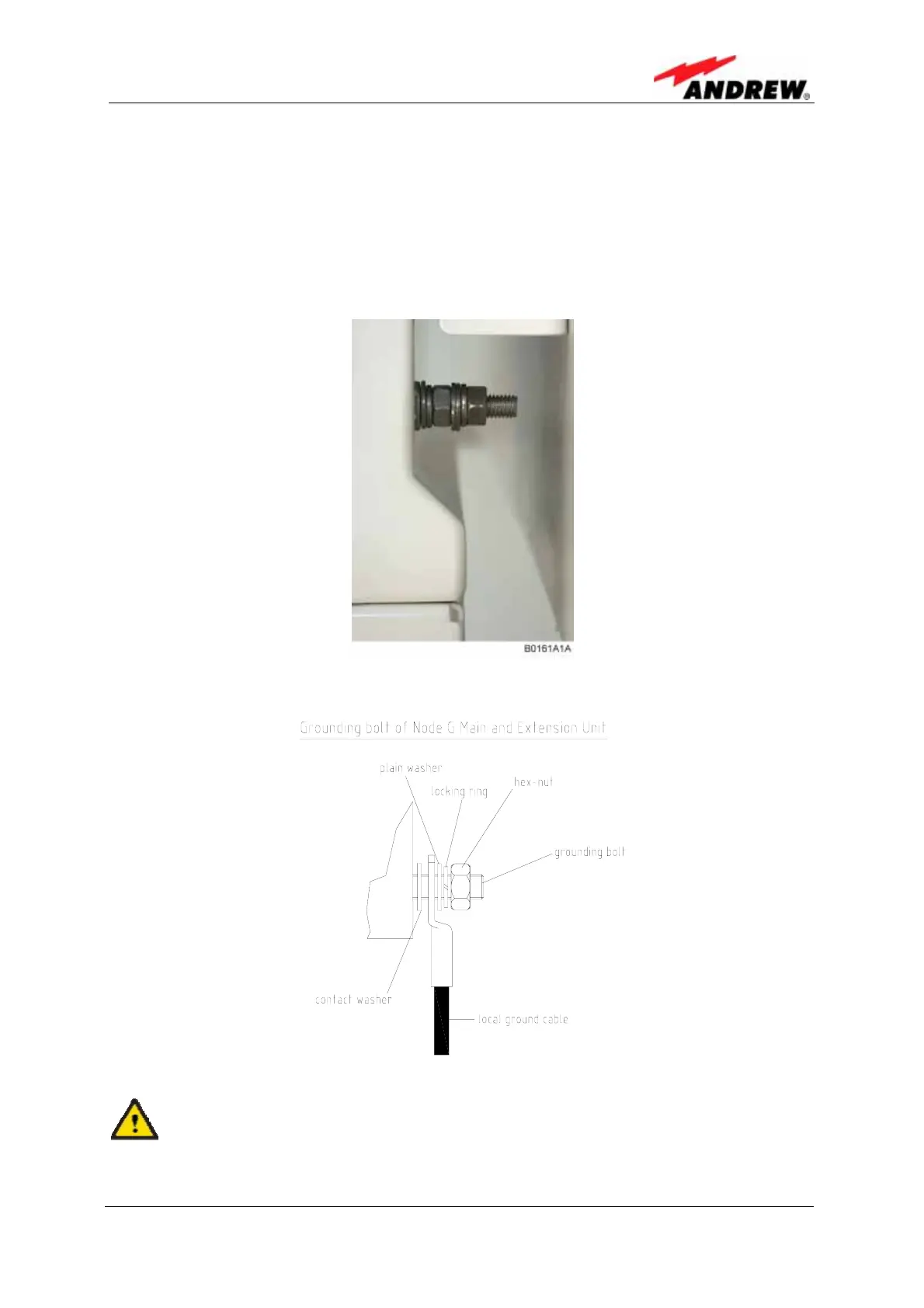

figure 3-6 Grounding bolt of Main and Extension Unit
figure 3-7 Grounding a unit
The PE cables must have a minimum cross section of 10mm
2
.
