Product Specifications
Document No. 992010. Issue 15 – 12.01.21
Page 4
2. Product Specifications

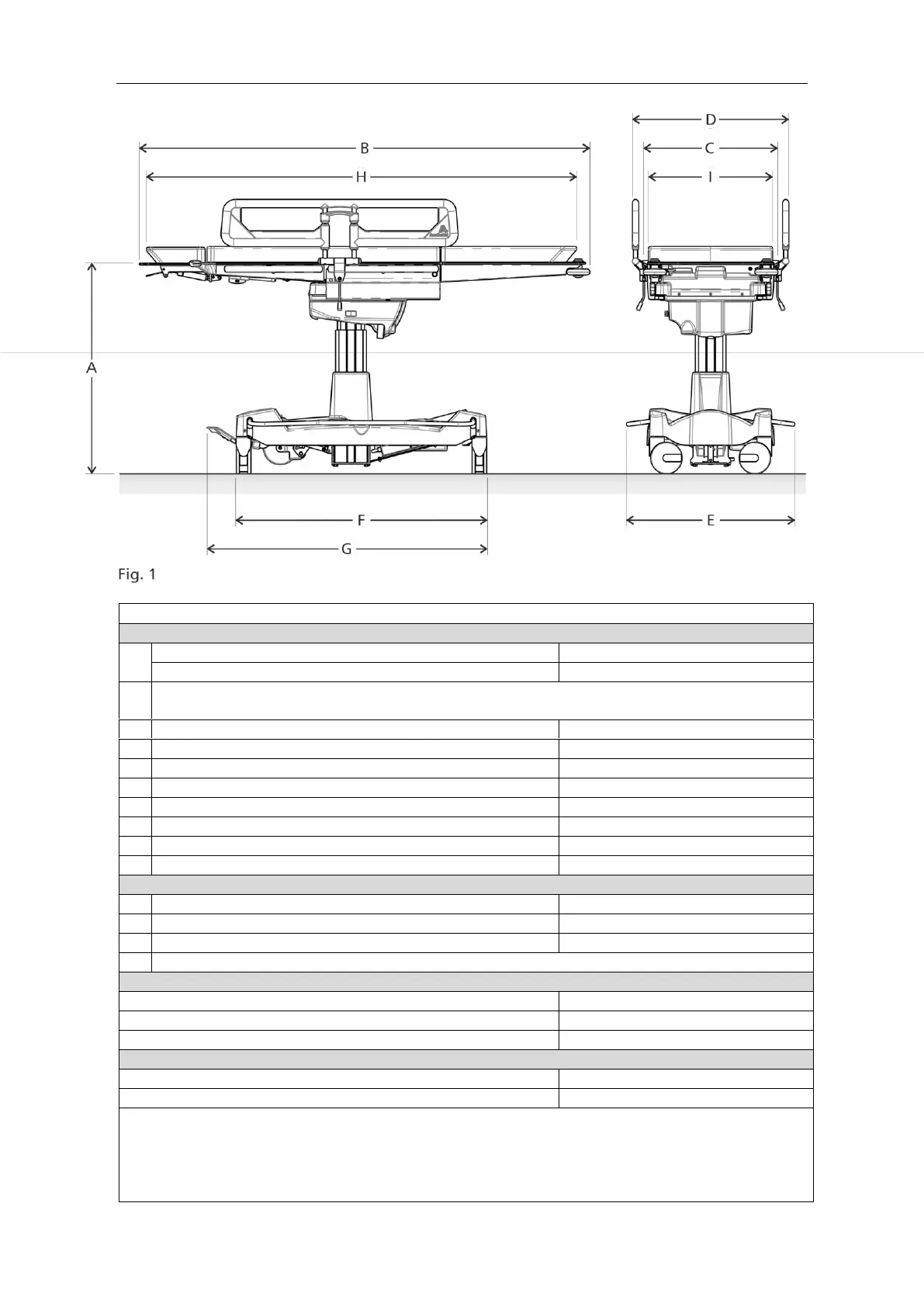

Key to Fig. 1:
Trolley Dimensions and Weight:
A
Minimum trolley height
605mm (24.0”)
Maximum trolley height
1005mm (39.5”)
NOTE: Height is measured from the floor to the patient platform and does not include
the mattress.
B
Trolley length
2100mm (82.7”)
C
Trolley width to the outside of the side bar
655mm (25.8”)
D
Trolley width to the outside of the siderails
770mm (30.3”)
E
Brake width with brakes off
800mm (31.5”)
F
Base length
1190mm (47.0”)
G
Base length including 5th wheel
1330mm (52.0”)
Castor Diameter
150mm (6.0”)
Trolley Weight
160kg (330lb)
Mattress Dimensions:
H
Mattress length
2040mm (80.0”)
I
Mattress width
600mm (23.6”)
Mattress depth
75mm (3.0”)
NOTE: Refer to Section 22, ‘K8 Pressure Care Mattress’, for full specification details.
Trendelenburg and Lateral Tilt Range of Movement:
Trendelenburg
20°
Reverse Trendelenburg
12°
Lateral Tilt
±12°
Backrest and Head Section Range of Movement:
Backrest Articulation
0 - 65°
Head Section Articulation
+25/-30°
NOTE: The backrest actuator is designed to lift a maximum of 45% of the 250kg (550lb)
patient weight limit; this equates to 112.5kg (248lbs). If the weight on the backrest exceeds
this figure, then the backrest actuator may stall, and the backrest will not raise. This can be
caused by exceeding the patient weight limit, or having the patient positioned too far up the
backrest towards the head end.
