1 Checking your New Appliance
Your new appliance has been carefully packed into one crate. Every effort has been made to ensure that you it
is delivered to you in perfect condition. As you unpack your new appliance, inspect each of the pieces for
damage. If something is damaged, DO NOT sign the bill of lading. Contact the shipper immediately; the shipper
is only responsible for 15 days after delivery. Check the packing list enclosed with your appliance to ensure that
you have received all the parts to the appliance. If you are missing any parts, contact the dealer from whom the
appliance was purchased. As you unpack the appliance and its accessories be careful to keep the weight of the
appliance evenly distributed.
CAUTION
To prevent equipment damage and/or personal injury, do not tilt the appliance onto any
two of its legs, or pull the appliance by the flue vent.
1.1 Assembly
When you receive your appliance it is completely assembled with the possible exception of the legs and heat
deflector.
1.2 Leg Installation and Leveling
This appliance must be installed with legs; it cannot be curb mounted. Curb
mounting will seriously inhibit this appliances ability to effect proper combustion.
WARNING
This appliance must be installed with the legs provided by the manufacturer.
WARNING
Do not install legs or perform leveling procedure when unit is in operation or full of
cooking medium. Serious injury could result.
Required tools: 7/16 “ wrench and socket and a large pair of water pump pliers. The legs must be installed
before connecting the appliance to the gas supply. The legs provide the necessary height to meet sanitation
requirements and assure adequate air supply to the combustion system. Use the following procedure.
a. Lay the appliance on its back, being careful not to damage the flue area by pulling on it. Protect
the outside of the appliance with cardboard or a drop cloth when laying it down.
b. Attach each leg with the hex head screws and nuts supplied. Each leg requires four ¼-20 x 5/8”
hex head screws and nuts. Insure that all screws are tight.
c. Mount the screws from the inside of the appliance with the nut on the outside (bottom) of the
appliance. The nuts have lock washers attached to them, therefore it is not necessary to use
lock washers

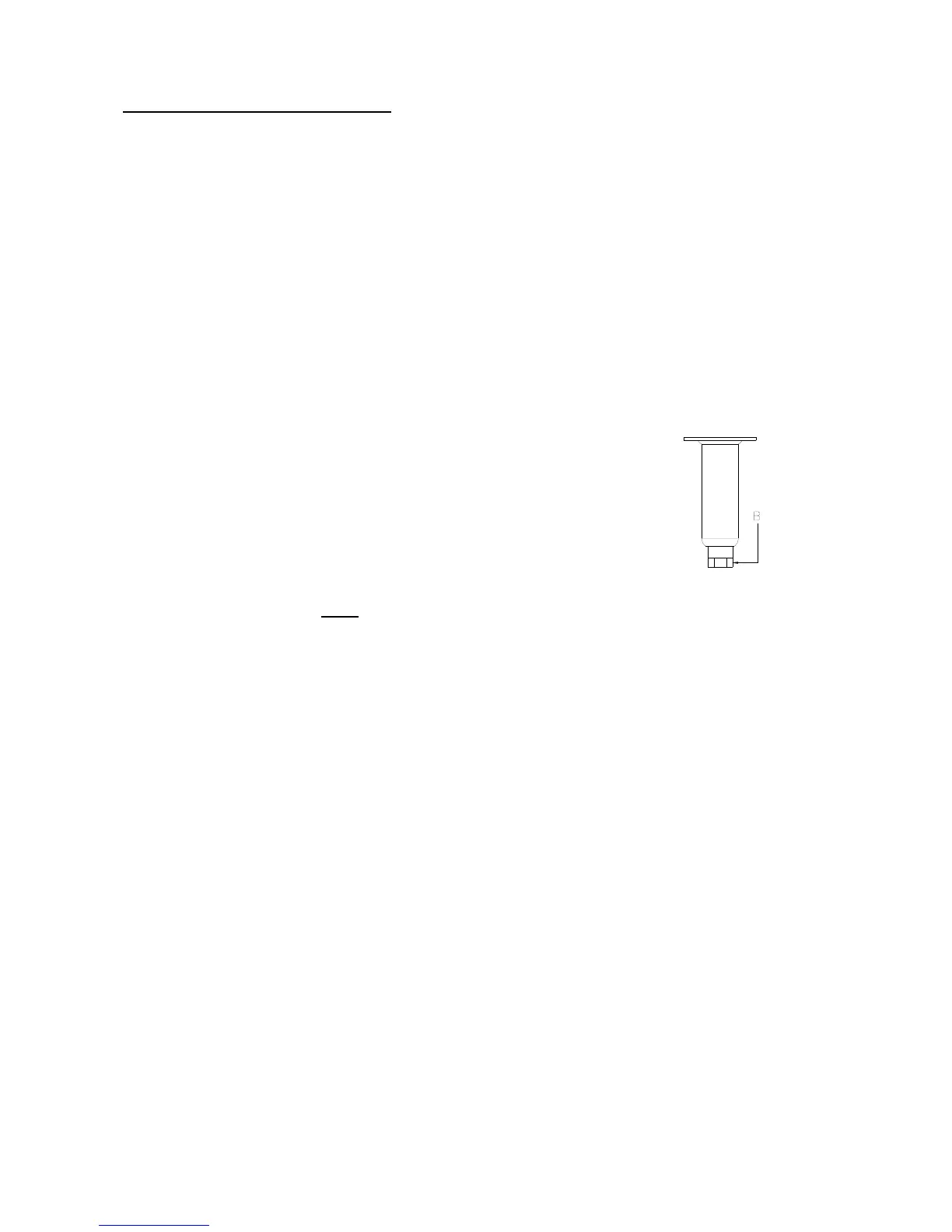

d. When all four legs are securely mounted, stand the unit up, being careful not to put too much
weight on any one leg. Adjust the height and level the appliance by adjusting the leveling
devices (B) with water pump pliers.
