SLG I&O Series
5
1.3 Heat Deflector Installation
If the appliance requires a heat deflector, you will find a removable label at the rear top edge of the unit. This
label has instructions for positioning and installation of the heat deflector. Refer to the label and the instructions
below to install the deflector.
a. Remove the two self-drilling screws from the top, back area of the appliance.
b. Position the heat deflector so that the angled portion of the deflector is facing toward the front of
appliance. Secure the heat deflector to the back of the unit using the two previously removed
fasteners.
c. When properly installed the angled section of the heat deflector will extend over the flue
opening to redirect the heat. It SHOULD NOT cover the flue opening. Never allow anything to
block the flue opening; this will cause the appliance to over heat and inhibit proper combustion,
which could produce dangerous gases
2 Installation
If you have completed the above steps that are applicable to the appliance you purchased, the appliance is now
ready to be installed. The appliance must be installed by a qualified professional. A qualified professional will
ensure that the installation is safe and meets local building and fire codes and the installation code in force.
WARNING
DO NOT obstruct the flow of combustion, ventilation or air openings around the appliance.
Adequate clearance around the appliance is necessary for servicing and proper burner
operation. Ensure that you meet the minimum clearance requirements specified in this
manual.
2.1 Installation Clearances
The clearances shown below are for combustible and non-combustible installations and will allow for safe and
proper operation of your appliance.
Combustible
Construction
Non-
Combustible
Construction
Back 6 in. (15 cm) 6 in. (15 cm)
Sides 6 in. (15 cm) 6 in. (15 cm)
Floor N/A* 4 ¾ (11.5 cm)
*For use only on Non Combustible Floors. This appliance must be installed on a fireproof base.
In addition to the above clearances there must also be at least 28 inches (71 cm) of aisle space in front of the
appliance.

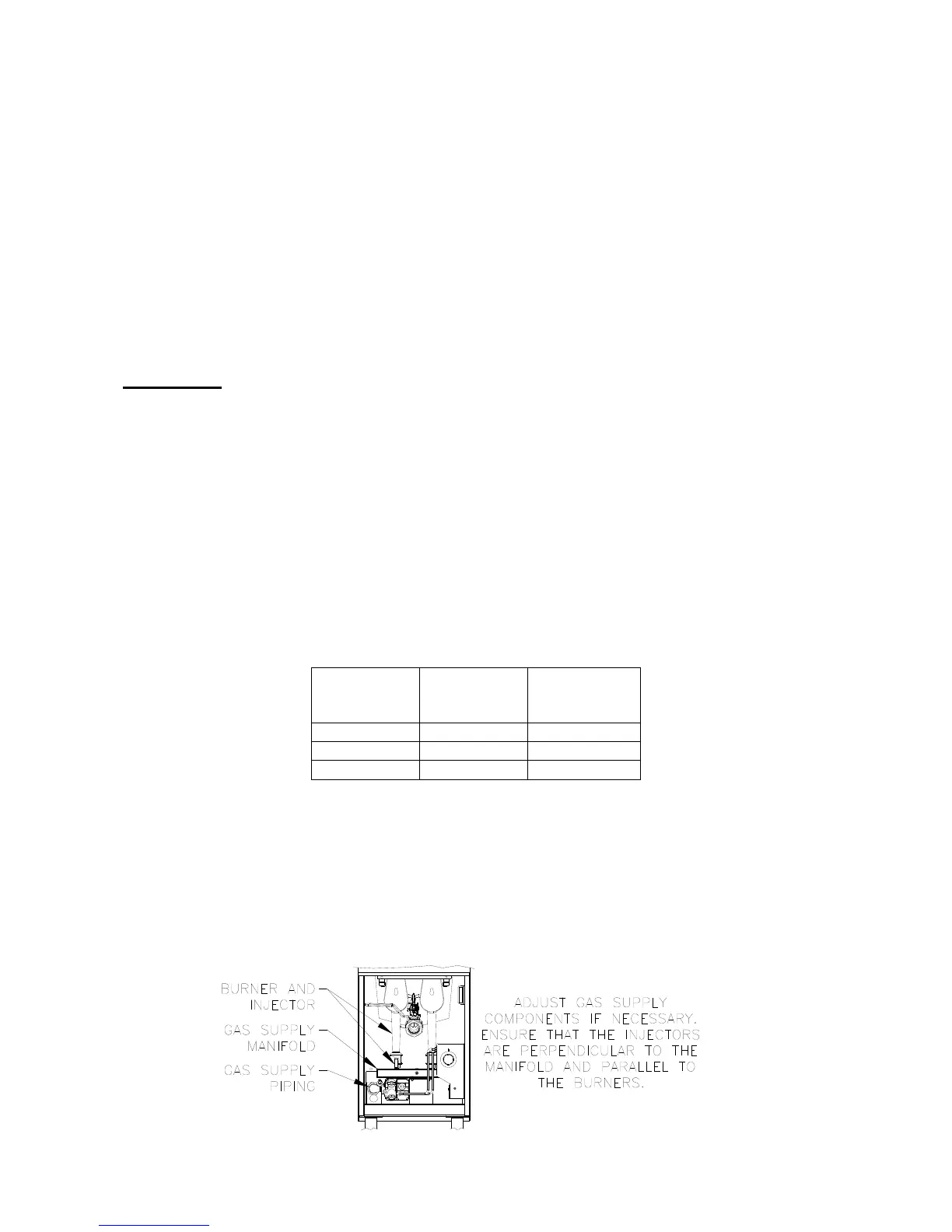

NOTICE
In case the burners, injectors, gas supply manifold or any piping in the gas supply had shifted during shipment,
the installation technician is to check and correct any misalignment that may have occurred.
