2 SETTING UP THE SENSOR PAD
e Sensor Pad is designed to detect subtle baby movements on the surface of
the mattress. e alarm will only sound if NO movement is detected for 20 seconds.

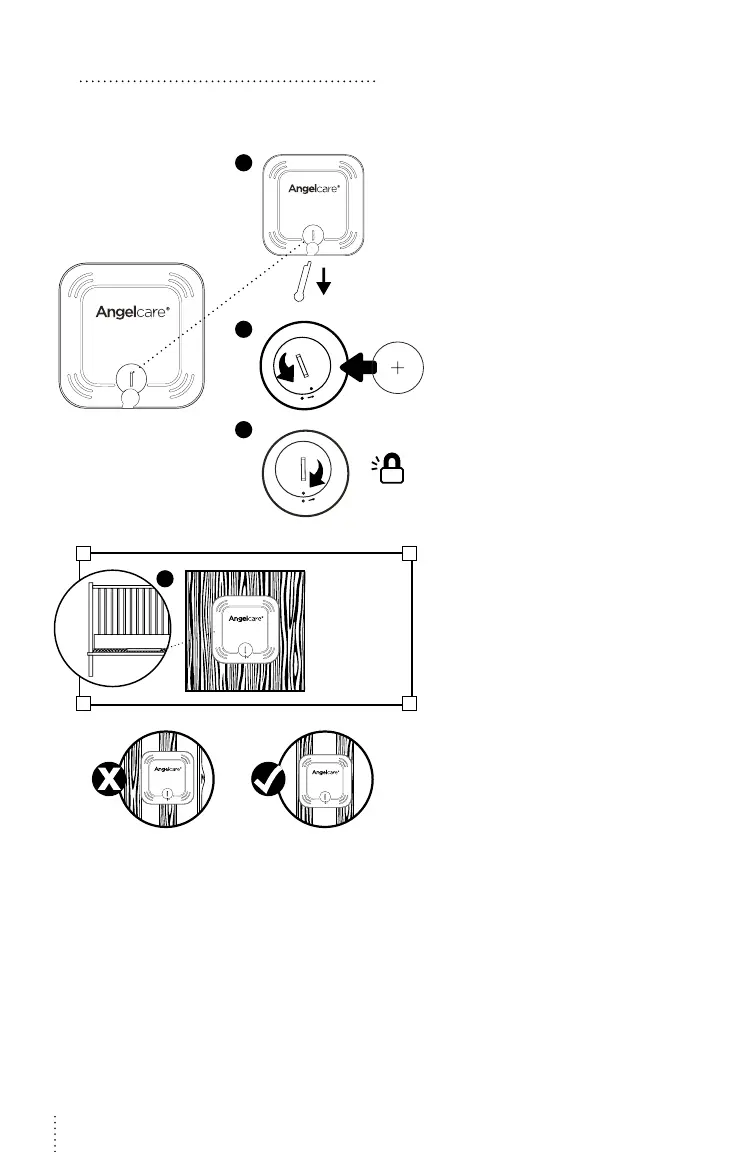

1. Remove the tab from the
battery holder.
2. Use a coin to remove/replace
the battery cover and insert the
battery face with + face up.
3. Replace the battery cover, align
2 dots and click to secure.
Correct positioning
for slatted base
4
4. Remove the mattress from
the cot, place Sensor Pad
- Angelcare® logo side up -
on base in approximate centre
of mattress along the length.
It should be centred on the
hardboard if your cot requires
a hardboard support (see
‘IMPORTANT’ note below).
5. Replace the mattress.
