Maintenance
If you encounter any failure or issue, it is imperative to x it quickly and correctly.
Regular maintenance can make your device last longer and avoid unnecessary
outlays.
If you use the printer very frequently, smaller parts will wear and need replacing to keep
it running to the best of its function. You are recommended to change them as soon as
they need replacing, as this will prevent damage or wear to other parts.
Please visit
support.ankermake.com
for more detailed information whenever in need.

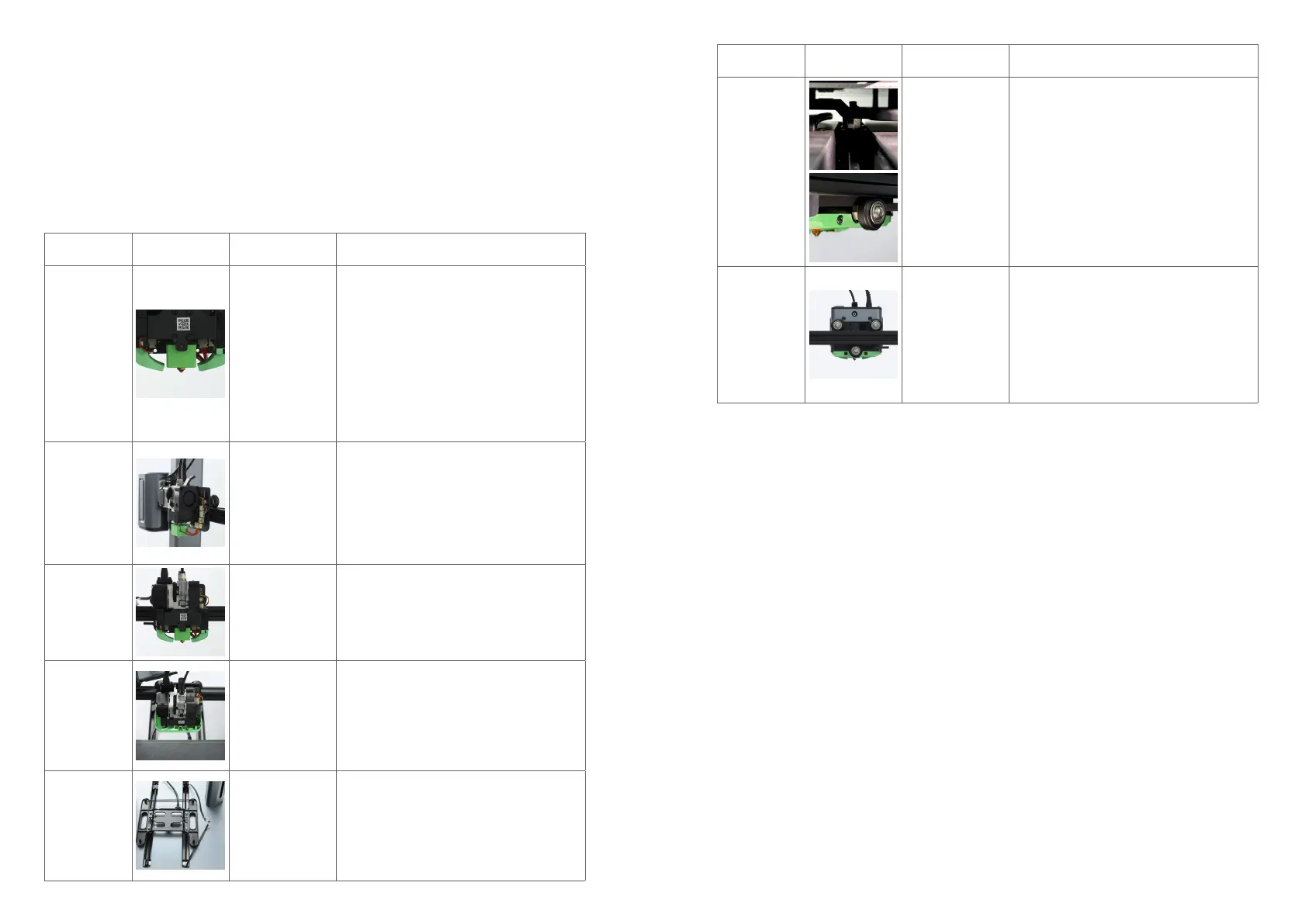

Spare Parts Illustration Potential Failure
or Issue
Solutions
Nozzle
• The nozzle
is jammed by
foreign objectives,
and the extrusion
is uneven.
• The nozzle is
blocked and
nothing can be
extruded.
• Regular Maintenance
https://support.ankermake.com/s/article/
Routine-Maintenance-of-Nozzles
• Spare Part Replacement
Video:
https://support.ankermake.com/s/article/
How-to-Exchange-the-Nozzles
Article:
https://ankertechnologycompanyltd.
my.site.com/ankermakerenexternal/s/
article/How-to-Replace-the-Nozzle
Hot End
• Hot end jam.
• Malfunction.
• Abnormal
temperature
display.
Video:
https://support.ankermake.com/s/article/
How-to-Replace-the-Hotend
Article:
https://ankertechnologycompanyltd.
my.site.com/ankermakerenexternal/s/
article/How-to-Replace-the-Hotend-of-M5
Silicone Shell
Cracked. Replace with a new one.
Extrusion
Motor /
Reduction
Gear
Debris buildup
causes
insufcient
extrusion or nozzle
jams.
https://support.ankermake.com/s/
article/Maintenance-of-extrusion-motor-
reduction-gear
X/Y-axis Belts
• Sounds
abnormal noise
in the direction of
the X/Y-axis.
• Misplacement
issue of the print
model.
Video:
https://support.ankermake.com/s/article/
X-and-Y-Axis-Belt-Adjustment
Article:
https://support.ankermake.com/s/article/
How-to-Adjust-Belts-on-the-X-and-Y-Axis
Spare Parts Illustration Potential Failure
or Issue
Solutions
Eccentric Nuts
of the Extruder
and Printing
Platform
• Sounds
abnormal noise
when the X-axis
moves.
• The nozzle
vibrates.
Video:
https://support.ankermake.com/s/article/
V-Wheel-Adjustment
Article:
https://support.ankermake.com/s/article/
How-to-Adjust-the-Eccentric-Nut-of-the-
Extruder-and-Printing-Platform#content5
V-Wheel
• Fuzzy and
frayed.
• Wears.
• Sounds
abnormal noise
or vibrates when
working.
Video:
https://support.ankermake.com/s/article/
How-to-Replace-the-V-Wheel-of-X-Axis
https://support.ankermake.com/s/article/
How-to-Replace-the-V-Wheel-of-Y-Axis
Article:
https://support.ankermake.com/s/article/
How-to-Replace-the-V-Wheel-of-X-and-
Y-Axis
