0605

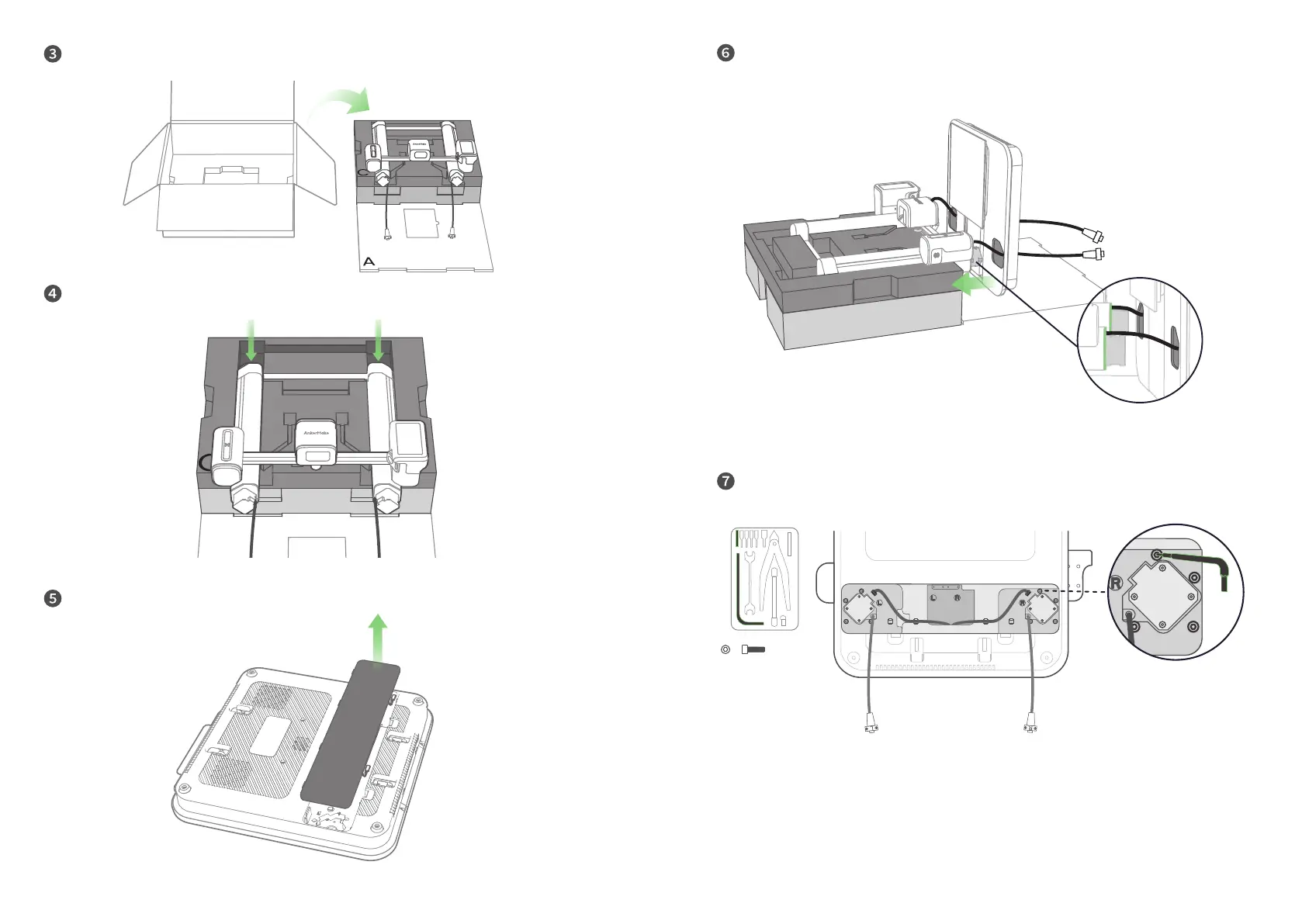

Take out the gantry frame with its
packaging foam (C)
and place it on the
foam (B)
.
Move the gantry frame as shown below.
Detach the bottom cover from the platform.
Route the USB-C cables through the holes, then insert the two supports of the gantry
frame into the base holes.
Fasten 8 screws into the platform to rmly x the gantry frame.
M5×8
To Next Page
