Anritsu MT8821C - Page 173

173

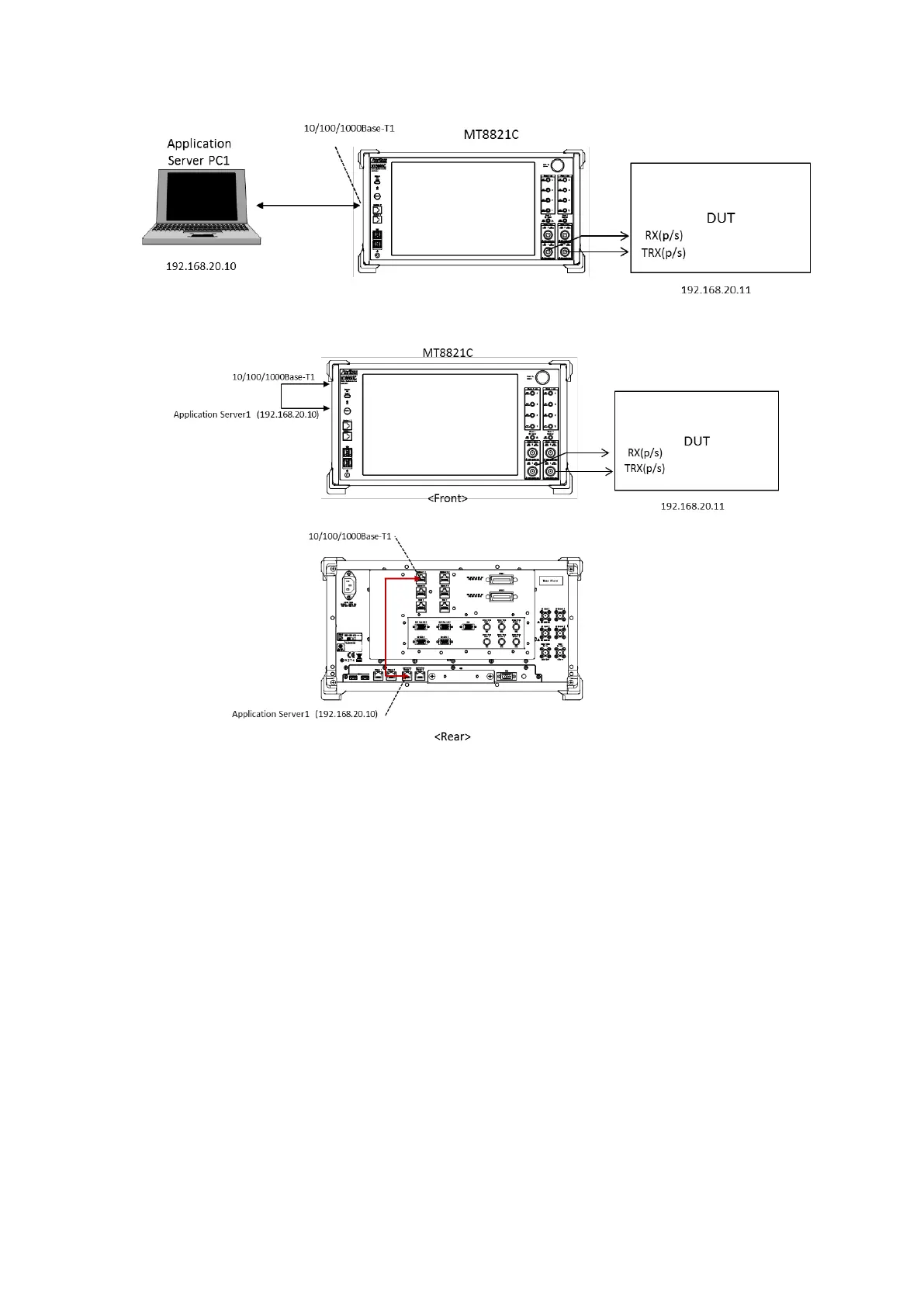

5.1.1.3. Connection Diagram for IP Data Verification using MT8821C
Figure 5.1.1-3 Connection Diagram for IP Data Transfer
(MT8821C, using external server, antenna configuration set to 2x2 MIMO)
Figure 5.1.1-4 Connection Diagram for IP Data Transfer
(MT8821C, using internal server, antenna configuration set to 2x2 MIMO)
<Required Equipment>
 LTE mobile terminal supporting IP connection
 RF cable to connect MT8821C and LTE mobile terminal
 Application server PC with LAN adapter supporting 1000Base-TX
 Client PC (if DUT is modem type or using tethering function)
 Crossover cable to connect MT8821C and application server
 UDP/TCP Throughput measurement software (installed in application server and client PCs)*
1
*1: This test uses the open-source software Iperf to measure throughput. It can be downloaded from the Internet.
After downloading, copy the execute file (Iperf.exe) to the root of the C: drives in the application server and client PCs.
* Windows is registered trademark of Microsoft Corporation in the USA and other countries.
