Anritsu MT8821C - IP Data Transfer Test; 5.1. IP Data Transfer Test for Non CA (single cell); 5.1.1. Connection Diagram

172
IP Data Transfer Test 5.
IP Data Transfer Test for Non CA (single cell) 5.1.
The IP data transfer between an application server connected to the MT8820C/MT8821C and the UE can be tested
by installing the 12C/13C-006 IP Data Transfer option in the MT8820C. Furthermore, adding the 12C/13C-011
FDD/TDD 2x2 MIMO DL option supports the Downlink 2x2MIMO IP Data Transfer Test.
The following test procedure is based on hands-on operation. Refer to the LTE measurement software operation
manual for the basic operation and remote commands.
Connection Diagram 5.1.1.
5.1.1.1. Layer Configuration
Ethernet
IP
TCP/UDP
User Application
Physical Layer
RRC/RLC/MAC
PDCP
IP
Physical Layer
RRC/RLC/MAC
PDCP
IP
Ethernet
IP
TCP/UDP
User Application

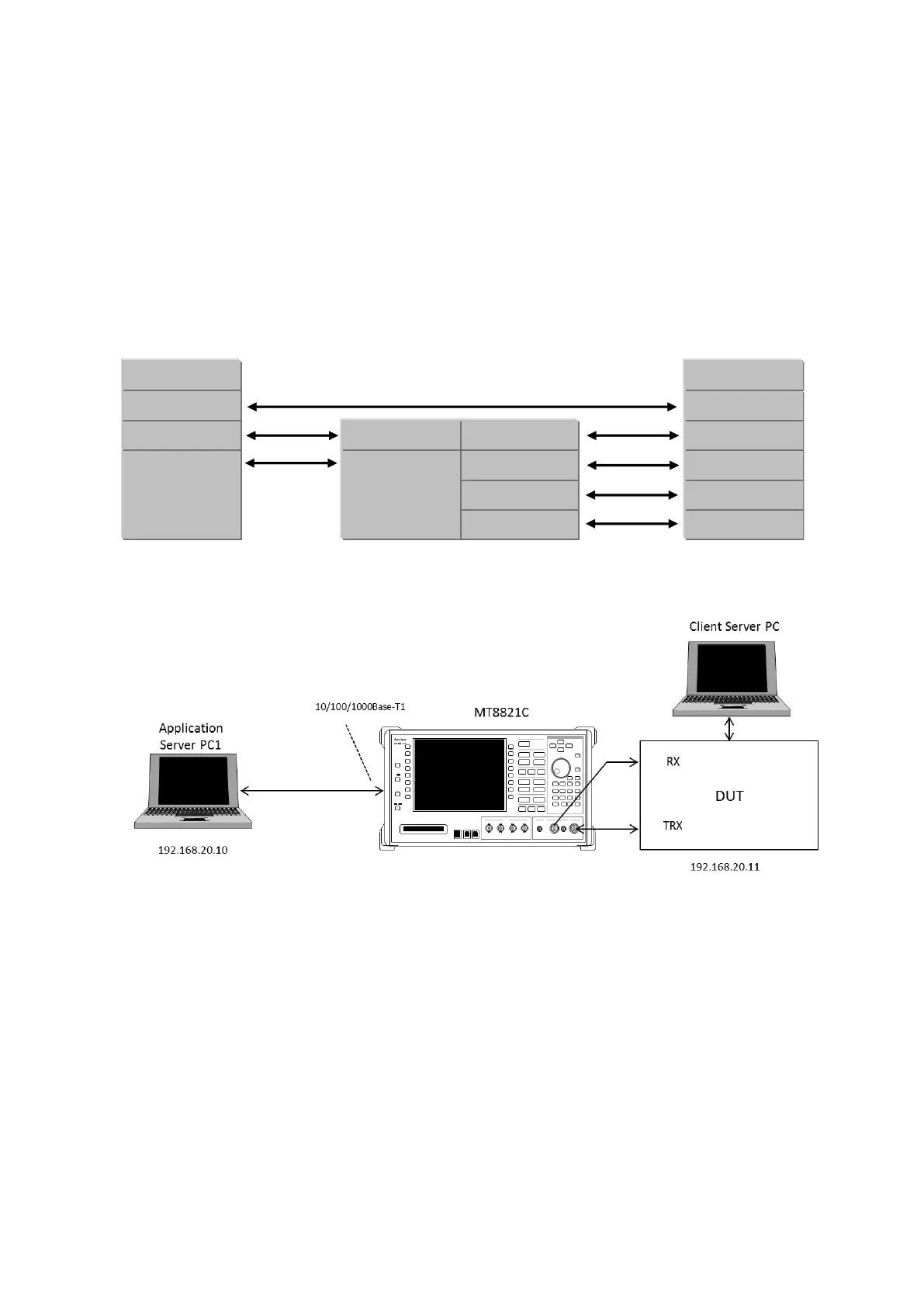

Figure 5.1.1-1 Layer Configuration
5.1.1.2. Connection Diagram for IP Data Verification using MT8820C
Figure 5.1.1-2 Connection Diagram for IP Data Transfer
(MT8820C, using external server, antenna configuration set to 2x2 MIMO)
