Figure 5.1.4.1.1-6 UE Category Setting at Common Parameter Screen (MT8821C)
7. Set UL/DL RMC - Number of RB to 100 with MCS Index in accordance with the following table for maximizing
the transmittable data size of the respective UE Categories.
UE Category
Antenna Configuration
MCS Index
UL
DL
(1-4,6-9)
(5)
(0)
3
Single
23
28
28
28
2x2 MIMO (Closed Loop Multi Layer)
23
23
24
23
4
Single
23
28
28
28
2x2 MIMO (Closed Loop Multi Layer)
23
28
28
28

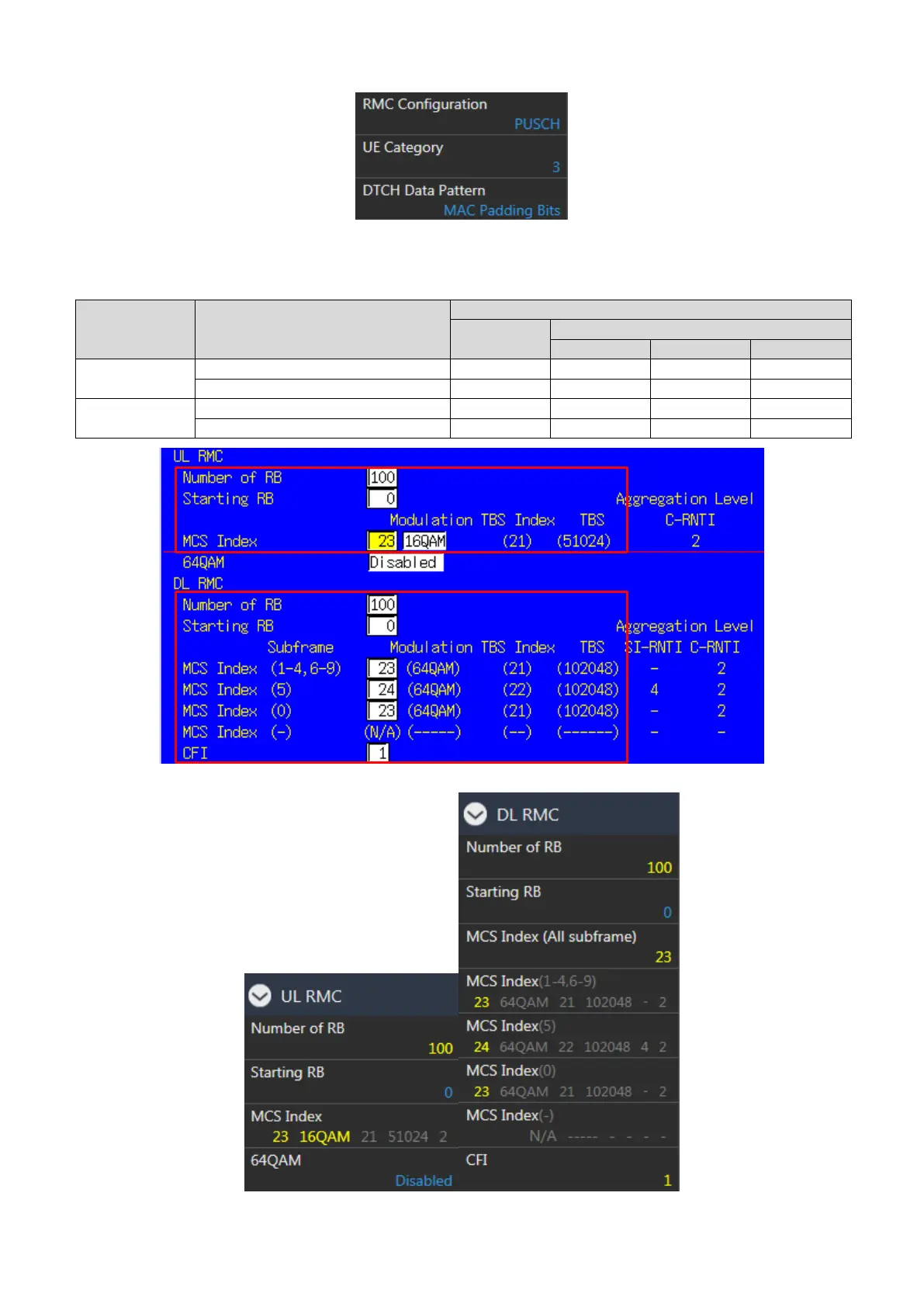

Figure 5.1.4.1.1-7 MCS Index Setting at Common Parameter Screen (MT8820C)
Figure 5.1.4.1.1-8 MCS Index Setting at Common Parameter Screen (MT8821C)
