5.2.1.2. Connection Diagram for IP Data Verification using MT8821C

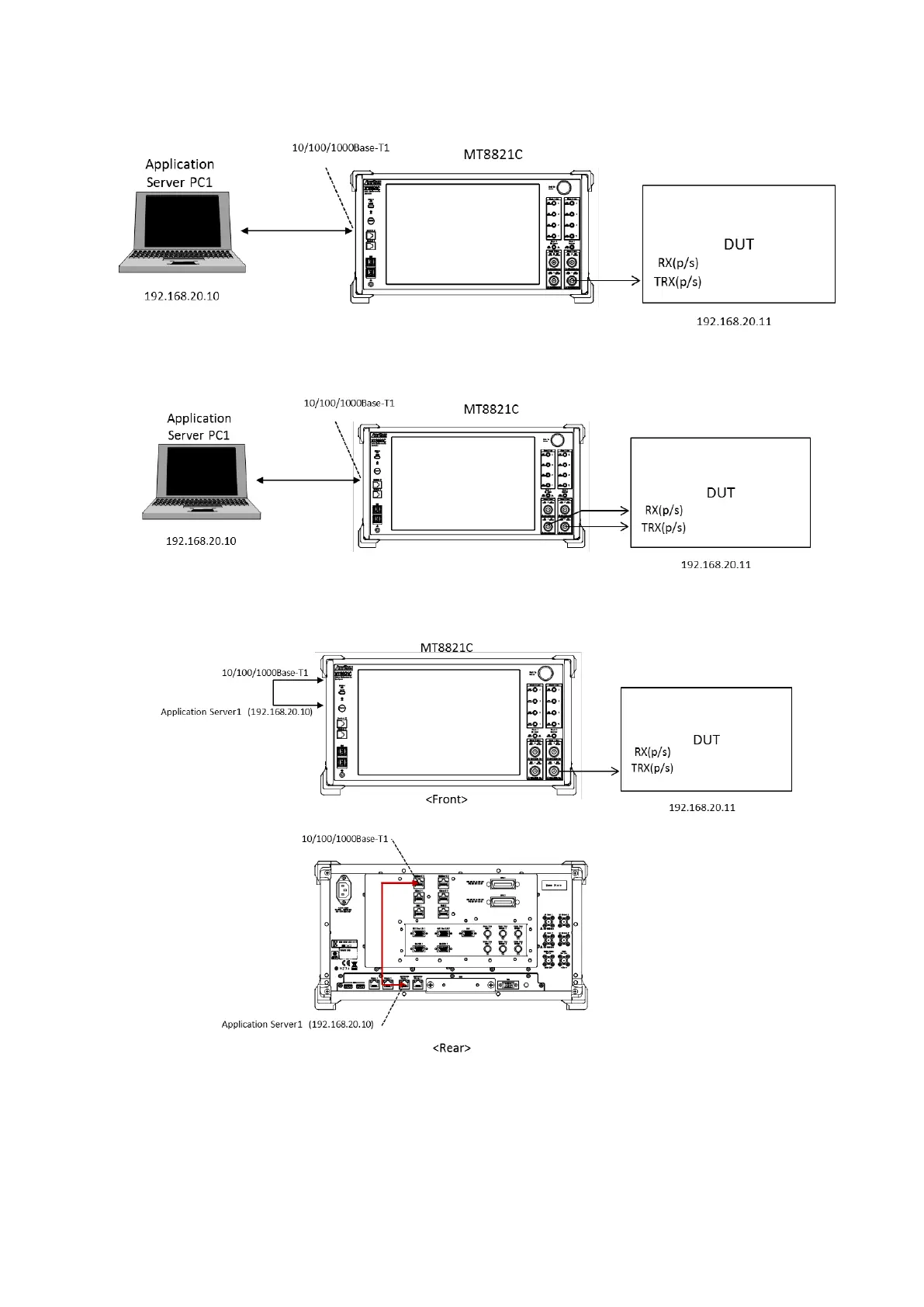

Figure 5.2.1.2-1 Connection Diagram for 2DL CA IP Data Transfer
(using external server, antenna configuration set to single)
Figure 5.2.1.2-2 Connection Diagram for 2DL CA IP Data Transfer
(using external server, antenna configuration set to 2x2 MIMO)
Figure 5.2.1.2-3 Connection Diagram for 2DL CA IP Data Transfer
(using internal server, antenna configuration set to single)
