Assembly Replacement 6-9 LCD Assembly Replacement
S3xxE MM PN: 10580-00253 Rev. J 6-9
6-9 LCD Assembly Replacement
This procedure provides instructions to replace the liquid crystal display (LCD).
1. Open the case as described in Section 6-1 “Opening the Site Master Case”.
2. Remove the PCB assembly as described in Section 6-2 “PCB Assembly Removal”.
3. Remove the 9 screws connecting the LCD assembly to the front half of the case, see Figure 6-11.

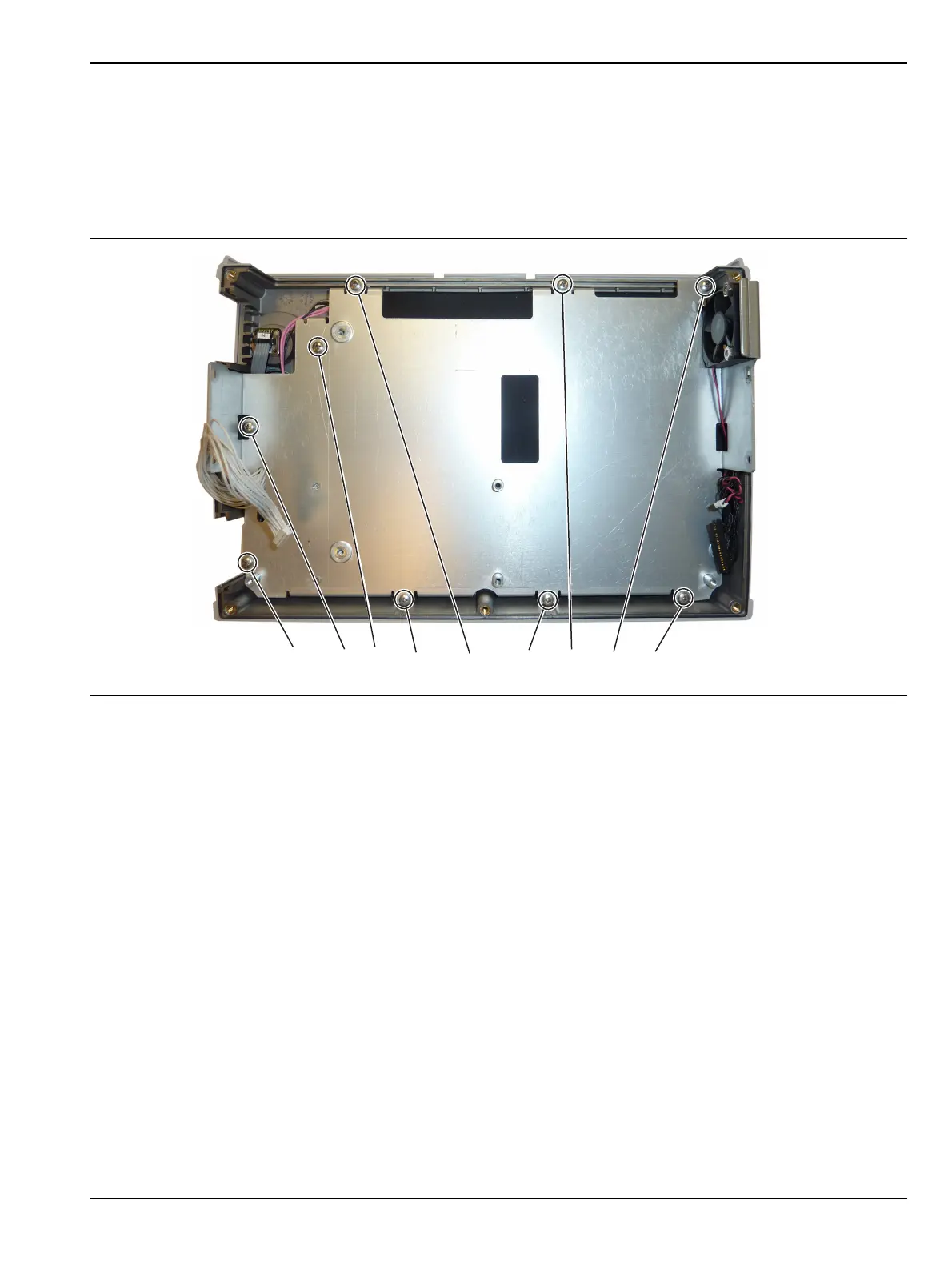

Figure 6-11. Removing the LCD Assembly
Remove the 9 screws holding the LCD Assembly to the case.
