Chapter 3
Getting Started
Introduction
This chapter provides a brief overview of the Anritsu Site Master. The intent of this chapter
is to provide the user with a starting point for making basic cable and antenna analyzer
measurements.
Power On Procedure
The Anritsu Site Master is capable of up to 1.5 hours of continuous operation from a fully
charged, field-replaceable battery. Built-in energy conservation features allow battery life to
be extended.
The Site Master can also be operated from an external DC source (which will also simulta-
neously charge the battery). This can be achieved with either the Anritsu AC-DC Adapter
(P/N 40-168-R) or the Automotive Cigarette Lighter Adapter (P/N 806-141). Both items are
included as standard accessories (see Chapter 1).
To power on the Site Master:
Step 1.
Press the ON/OFF front panel key (Figure 3-1).
Step 2. The Site Master will display the model number, the firmware revision, the inter-
nal temperature and voltage, and then perform a five second self test. At com-
pletion of the self-test, the screen displays a prompt to press ENTER to
continue. If enter is not pressed, the Site Master will continue after a five second
timeout.
Step 3.
Press ENTER to continue.
The Site Master is now ready for operation.
3-1
ON/OFF
KEY
HOLD
RUN
START
CAL
AUTO
SCALE
SAVE
SETUP
RECALL
SETUP
LIMIT
MARKER
SAVE
DISPLAY
RECALL
DISPLAY
PRINT
MODE FREQ/DIST
AMPLITUDE
MEAS/DISP
SYS
ENTER
CLEAR
ESCAPE
ON
OFF
/
1
2
4
5
6
7
8
9
0
3
+
-
.
S332D

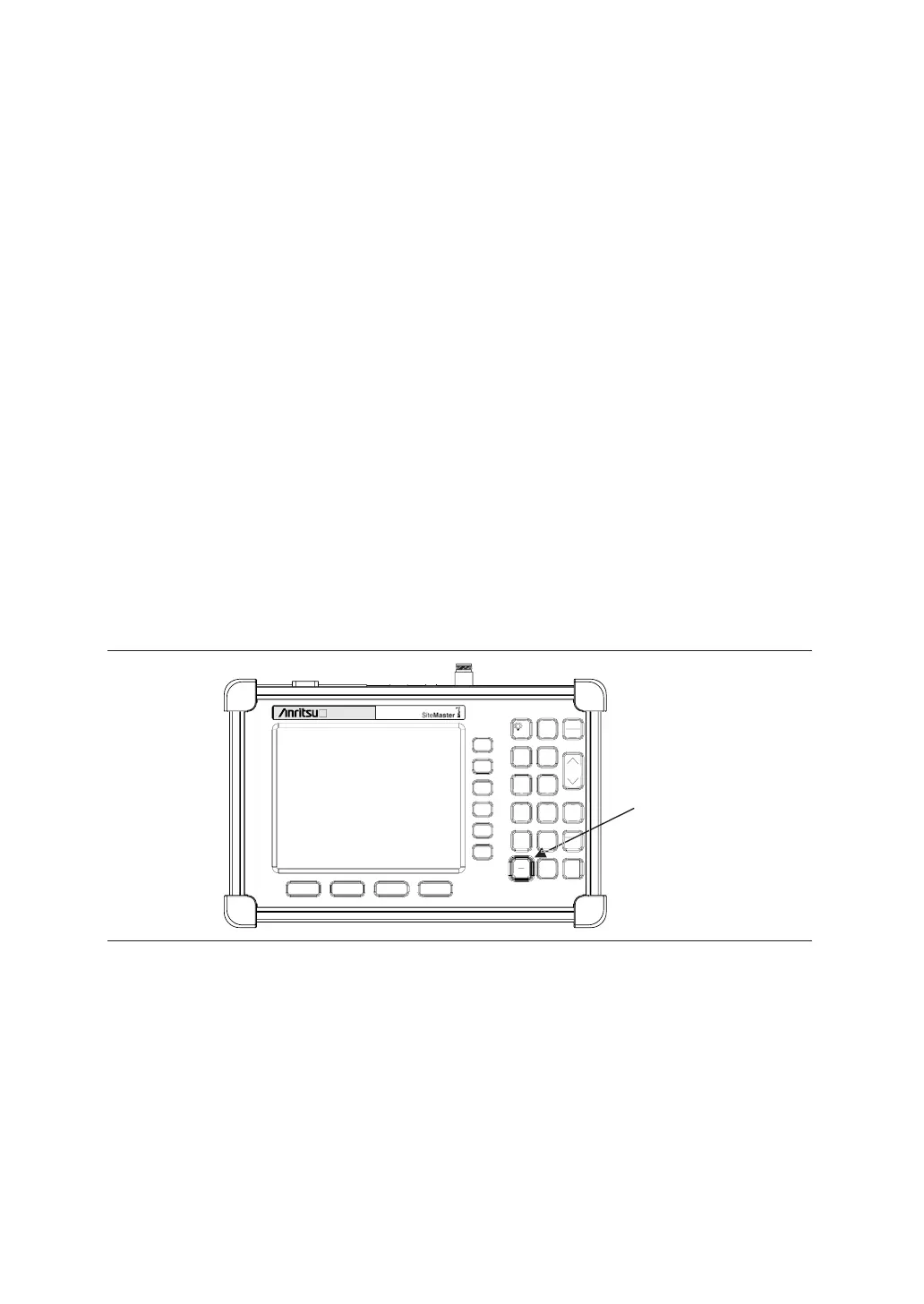

Figure 3-1. Site Master On/Off Key
