Printing
Printing is accomplished by selecting an available printer and pressing the print key as de-
scribed below. Refer to the particular printer operating manual for specific printer settings.
Printing a Screen
Step 1. Obtain the desired measurement display.
Step 2.
Press the SYS key and the
System Options soft key.
Step 3. Press the
Printer soft key and select from the displayed menu of supported print-
ers.
Step 4.
Press the PRINT key.
Step 5. Connect the printer as shown in Figure 3-4.
Printer Switch Settings
Set the switches on the serial-to-parallel interface cable to the HP Deskjet 450 ink jet
printer as follows:
3-14
Chapter 3 Getting Started
HP
DESKJET
PRINTER
SERIAL-TO-PARALLEL
SITE MASTER
INTERFACE CABLE
HOLD
RUN
START
CAL
AUTO
SCALE
SAVE
SETUP
RECALL
SETUP
LIMIT
MARKER
SAVE
DISPLAY
RECALL
DISPLAY
PRINT
MODE
FREQ/DIST
AMPLITUDE
MEAS/DISP
SYS
ENTER
CLEAR
ESCAPE
ON
OFF
/
1
2
4
5
6
7
8
9
0
3
+
-
.
S332D

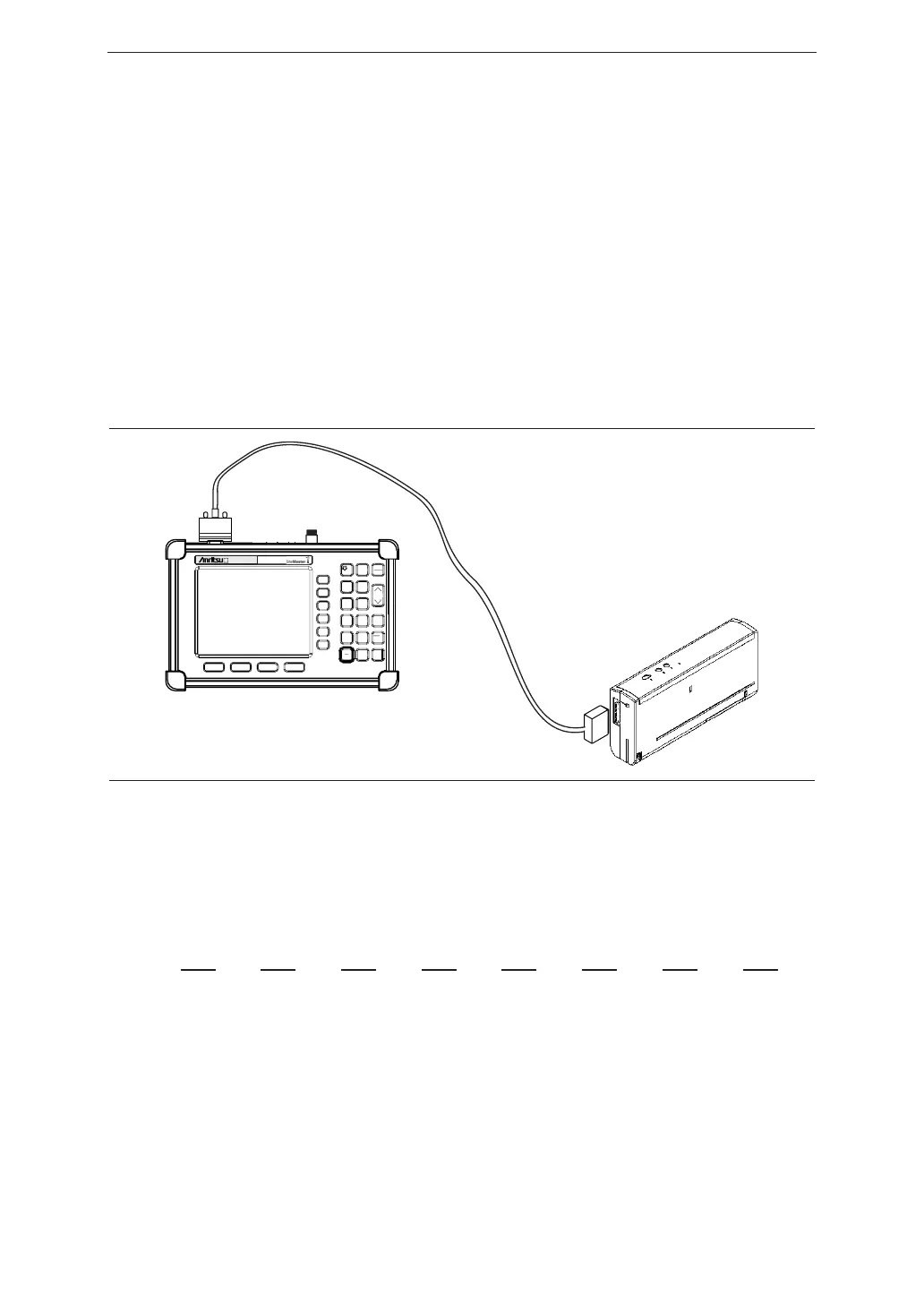

Figure 3-4-. Site Master Printer Setup
SW1
SW2 SW3 SW4 SW5 SW6 SW7 SW8
OFF ON OFF OFF OFF OFF ON OFF
