Chapter 4
Cable and Antenna
Analyzer Measurements
Introduction
This chapter provides a description of cable and antenna analyzer measurements, including
line sweeping fundamentals and line sweeping measurement procedures, available when the
Site Master is in frequency or DTF mode.
Line Sweep Fundamentals
In wireless communication, the transmit and receive antennas are connected to the radio
through a transmission line. This transmission line is usually a coaxial cable or waveguide.
This connection system is referred to as a transmission feed line system. Figure 4-1 shows
an example of a typical transmission feed line system.
4-1

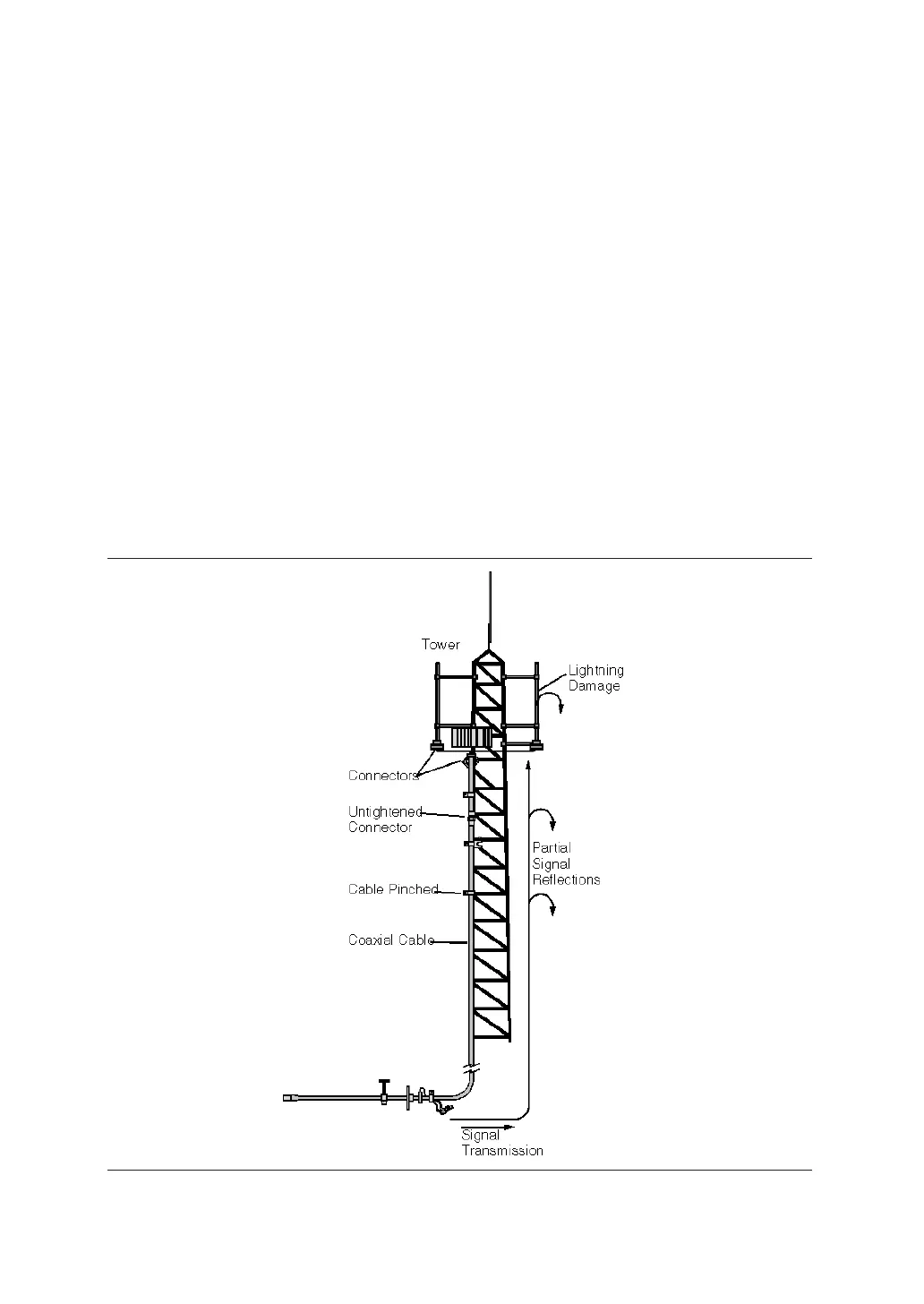

Figure 4-1. A Typical Transmission Feed Line System
