11. Mains Power Connector
The IEC connector supports a range from ~95-245 V. This enables the device to
automatically accommodate mains voltage in every country.
12. Word Clock Input
BNC connector used to accept Word Clock reference.
13. 10M Input
This BNC Input Connector allows the Goliath to receive timing reference from an Atomic
Clock such as the Antelope 10M and 10MX, to increase the Oscillator accuracy. If the
device is in Oven mode, plugging in the atomic clock causes the “Oven” light to turn
to “Atomic” on the touchscreen and the atomic device becomes the primary timing
reference, thus providing better sample accuracy, more detailed sound and greater
stability.
14. Word Clock Outputs
Two Word Clock Outputs on BNC connectors.
15. S/PDIF I/O
75Ω S/PDIF input and output for use with compatible equipment.
16. AES/EBU I/O
Each D-SUB 25 connector has 4 ins and 4 outs (following TASCAM standard).
17. ADAT Inputs and Outputs
2 Inputs & 2 Outputs (up to 8 channels per line).

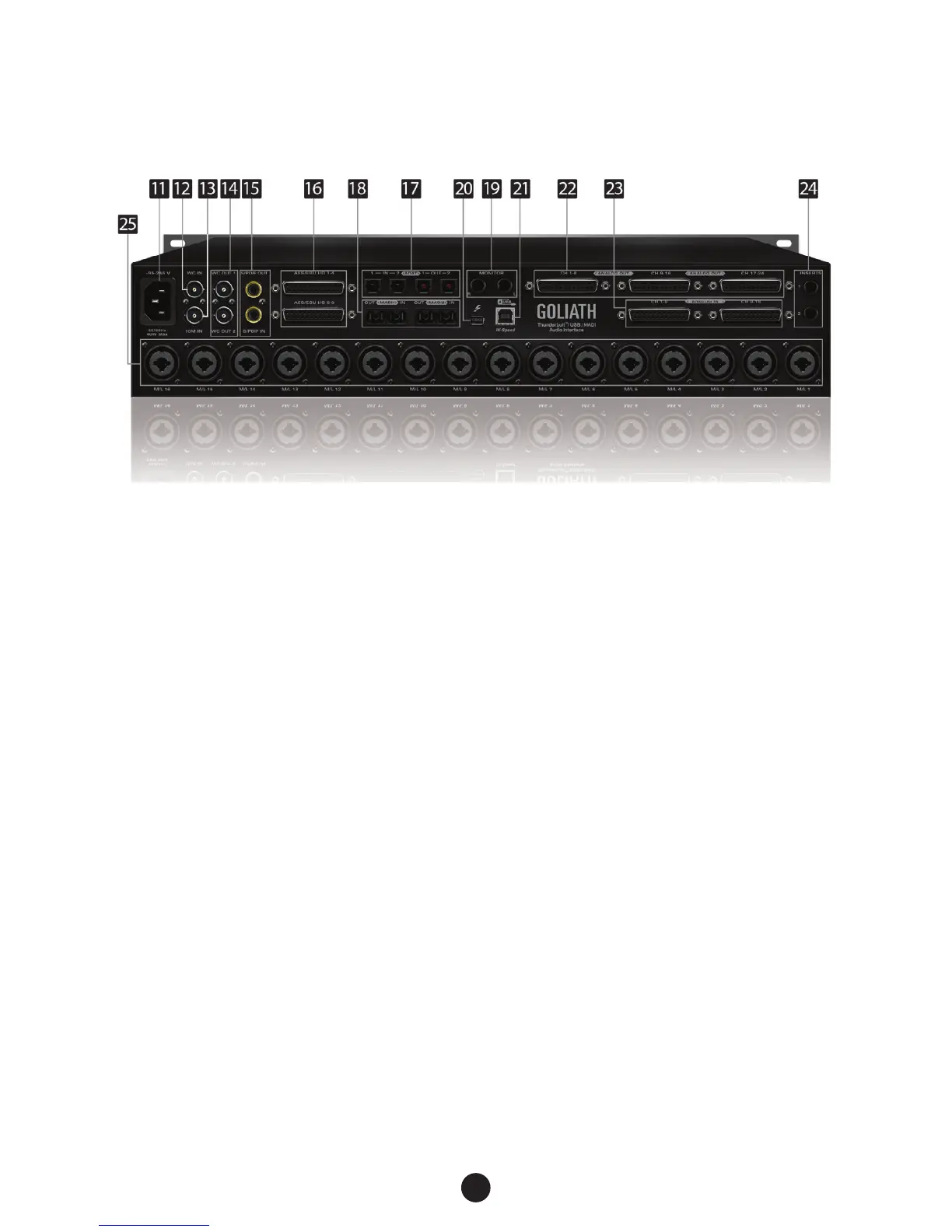

6. Rear Panel Explained
